Kymera
Market-ready Concept | Industrial Design | 2025
OVERVIEW

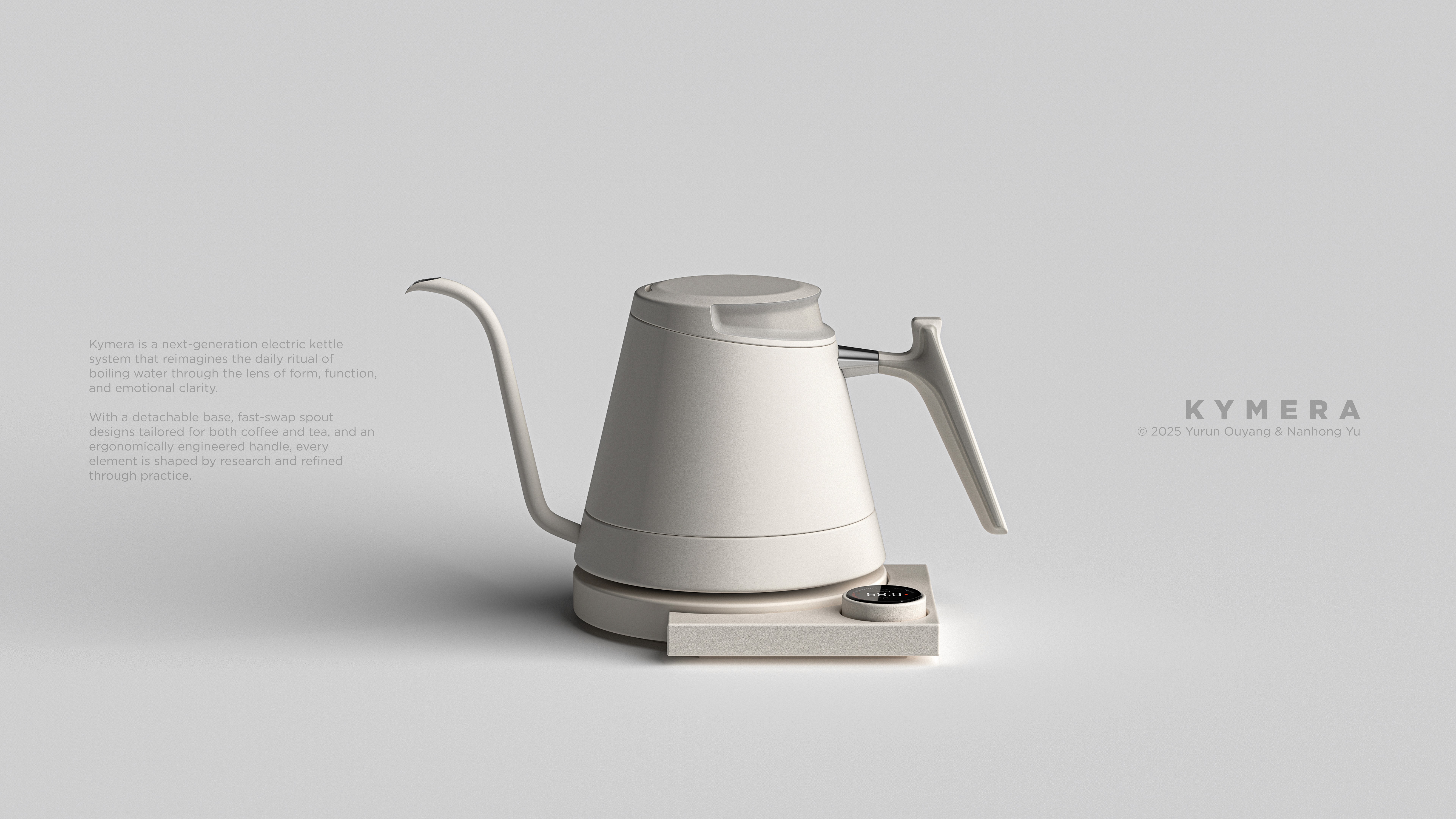

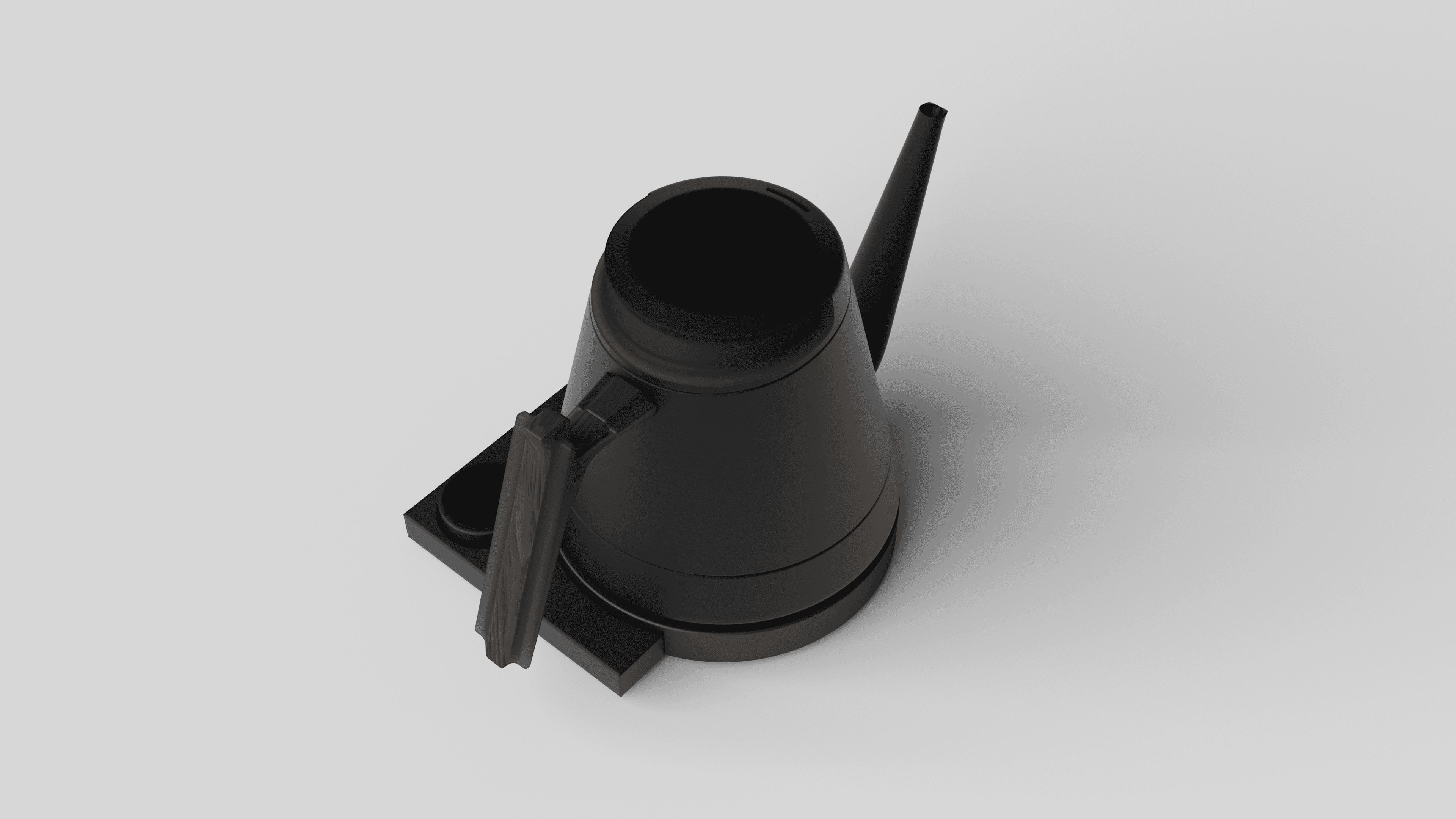

Kymera is a next-generation electric kettle system that reimagines the daily ritual of boiling water through the lens of form, function, and emotional clarity. With a detachable base, fast-swap spout designs tailored for both coffee and tea, and an ergonomically engineered handle, every element is shaped by research and refined through practice.

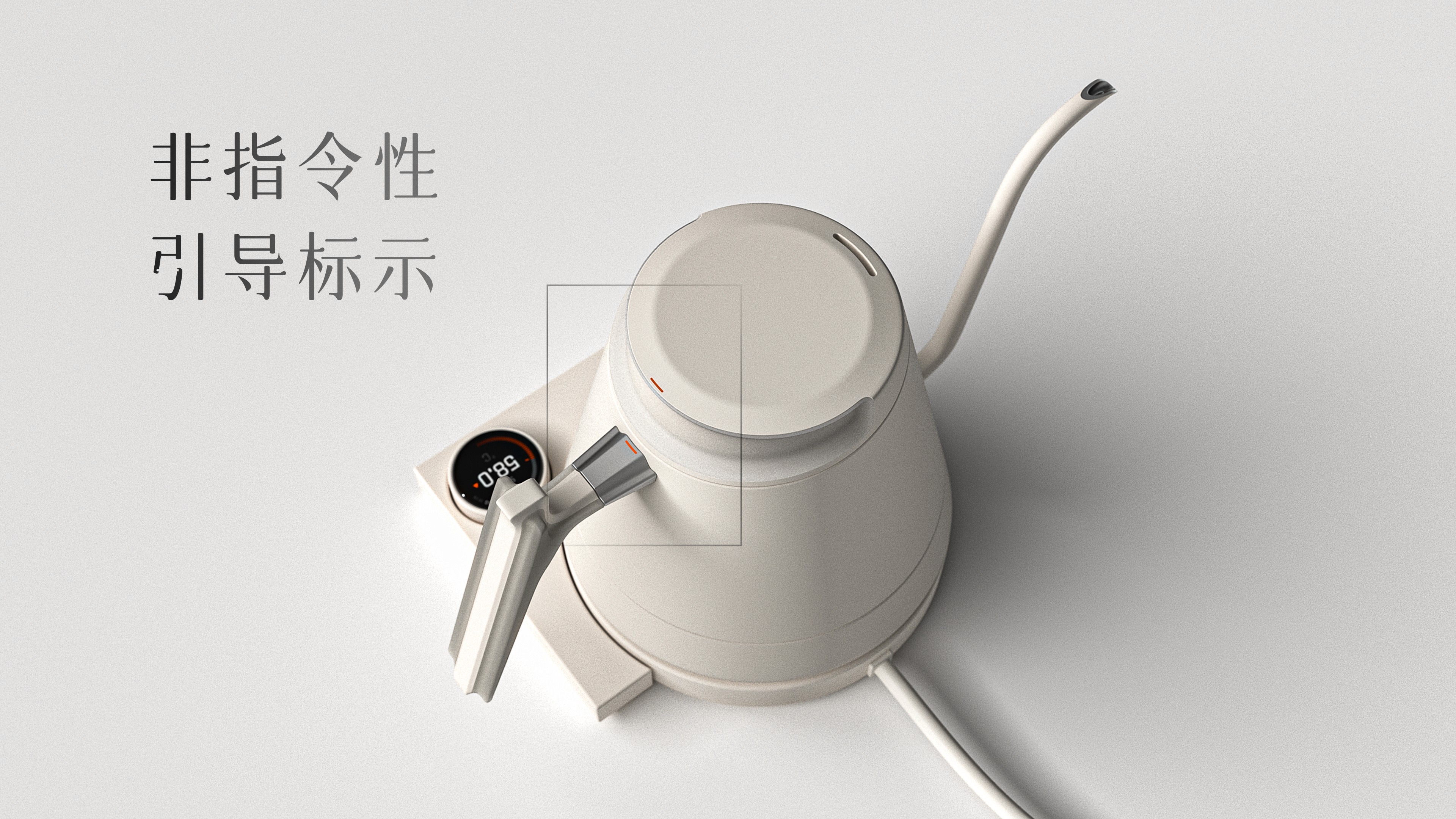

The design leverages subtle visual cues and tactile feedback to guide intuitive use—eliminating guesswork while enhancing the sensory experience. From meticulously designed spout, lid, and handle that aligns with natural pouring gestures to multiple silicone-wrapped interface parts that anchors subconscious memory, Kymera transforms routine into resonance.
Built with a focus on usability, safety, and visual harmony, Kymera aligns traditional sensibilities with modern performance—an object equally suited to the café counter and the contemplative home.
Kymera began as a multi-component countertop system designed for the evolving specialty coffee and tea market. Initially planned to be an investor-ready design project initiated by a team of two, it was ultimately shelved in early 2025 due to unforeseen external conflicts, remaining as a visionary design exploration.
DELIVERABLES
CAD Models
Renders

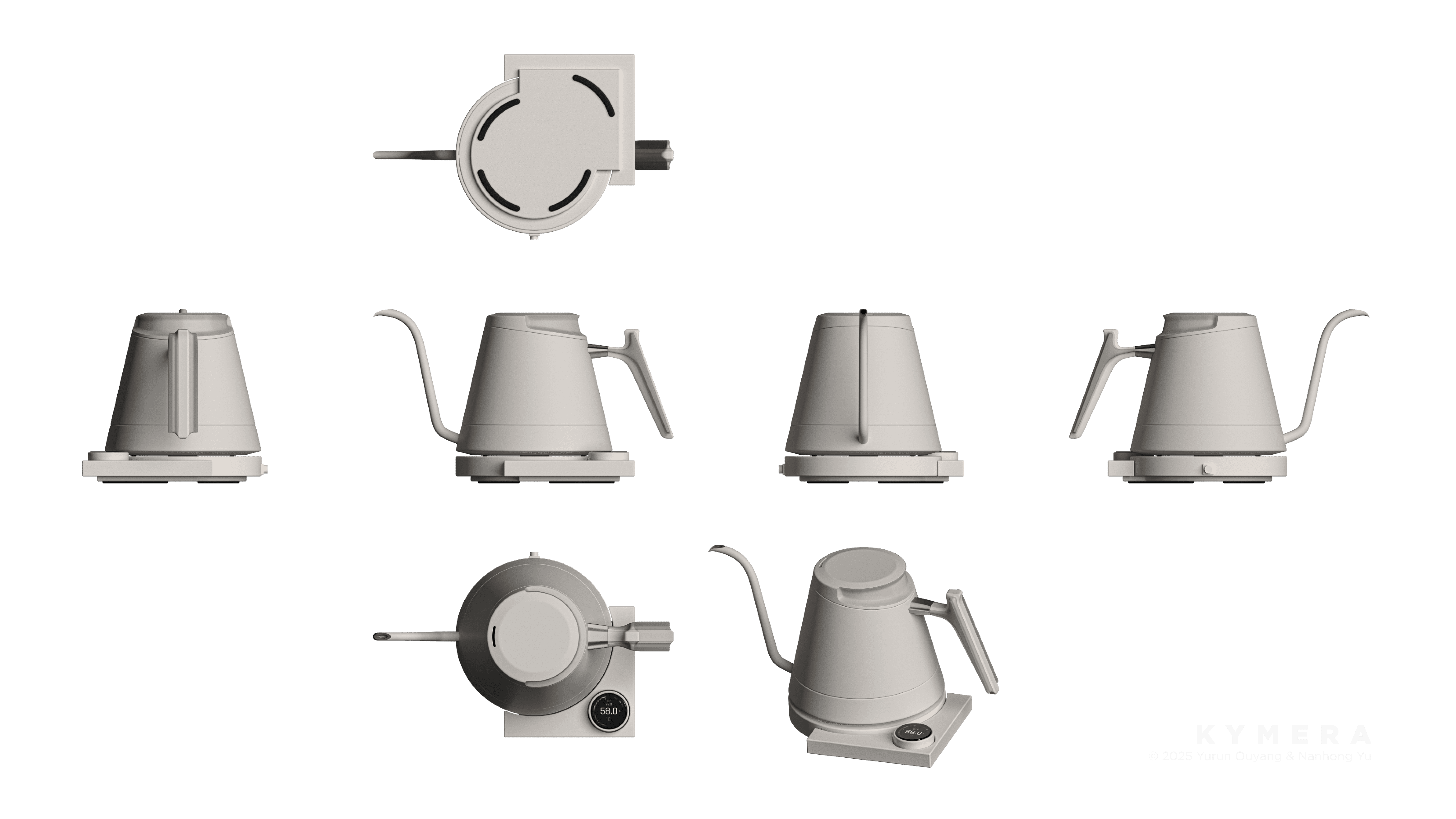

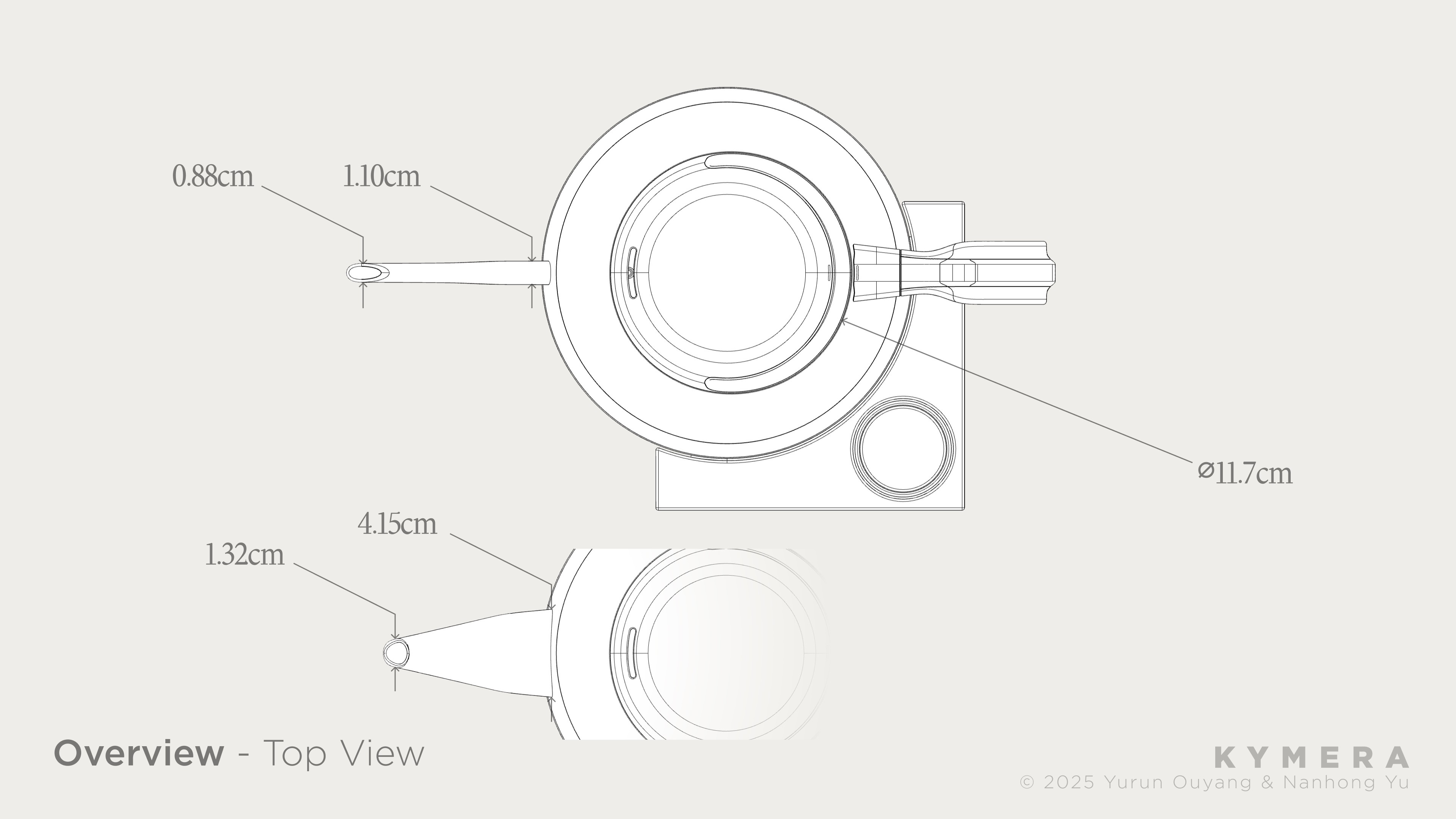

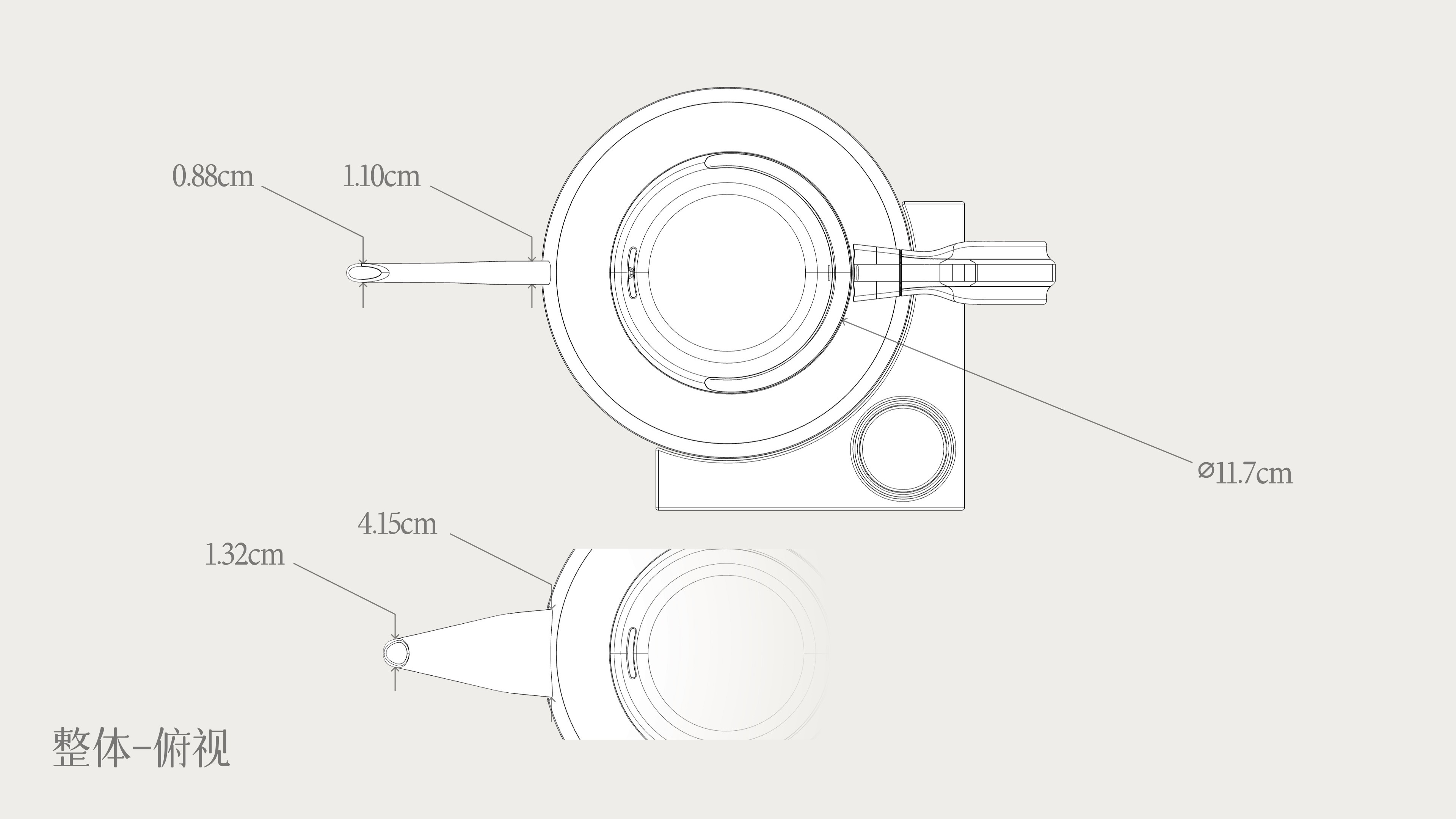

Technical Drawings
Design Proposal
Market Proposal
3D Printed Prototype
TEAM
Yurun Ouyang
Nanhong Yu
SOFTWARES
Figma
Adobe Illustrator
Rhinoceros 3D
V-Ray for Rhinoceros 3D
Grasshopper
Orca Slicer
CLIENT COMPANY
海利集团 HAILEA
www.hailea.com
KAMJOVE
www.kamjove.com
KYMERA, THE BEST OF TWO WORLDS
The name Kymera draws inspiration from the mythical creature Chimaera—a being composed of multiple animals, symbolizing hybrid strength and harmony in both it's form and function. In the same spirit, Kymera merges the distinct rituals of traditional steeped tea and pour over coffee into a single, refined, modular brewing tool. By combining the precision required by expert coffee barista with the grace and flow essential to traditional tea steeping, Kymera offers the best of both worlds—engineered for versatility, designed for ritual, centered around the user.
SPECIFICATIONS

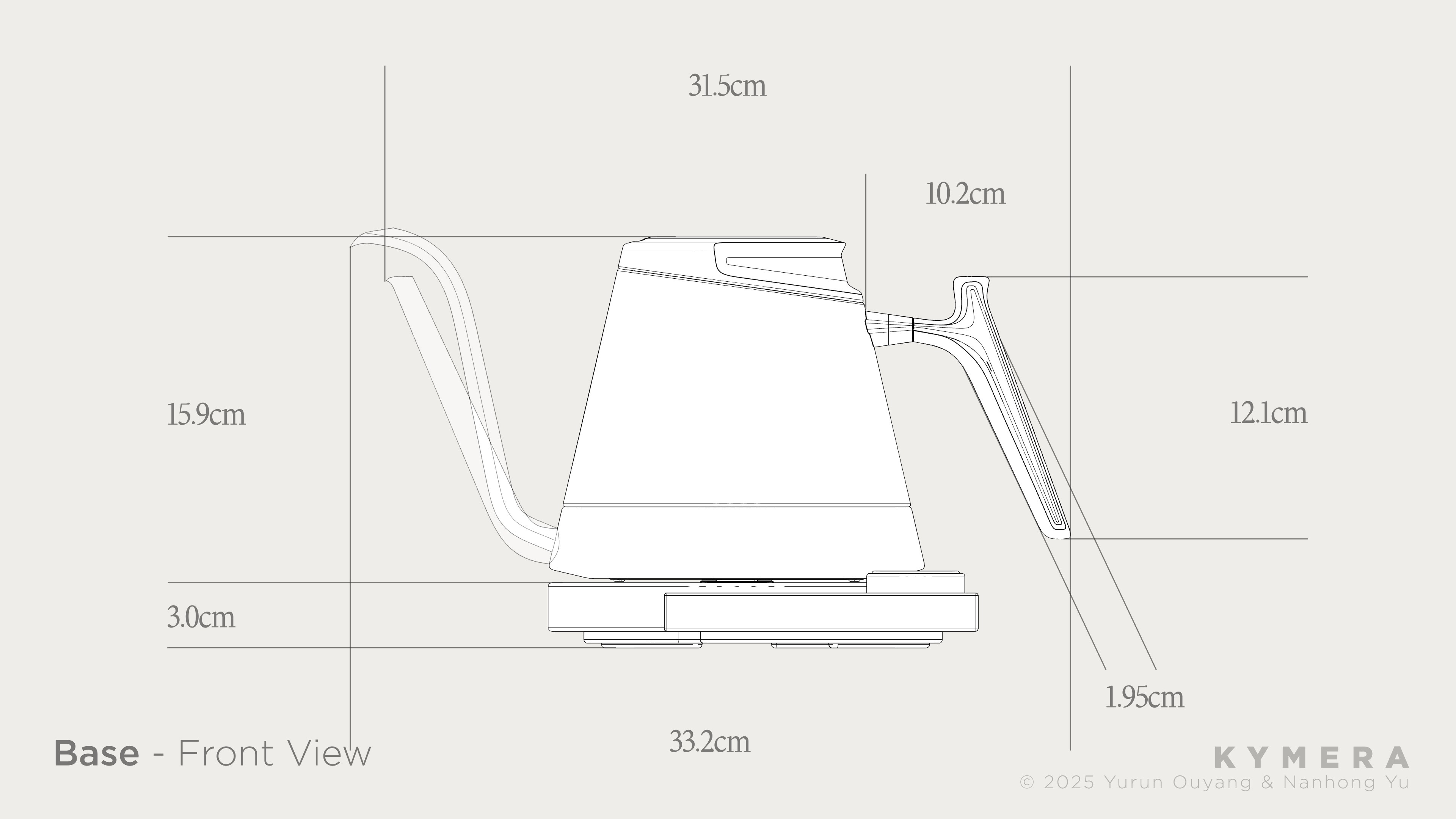

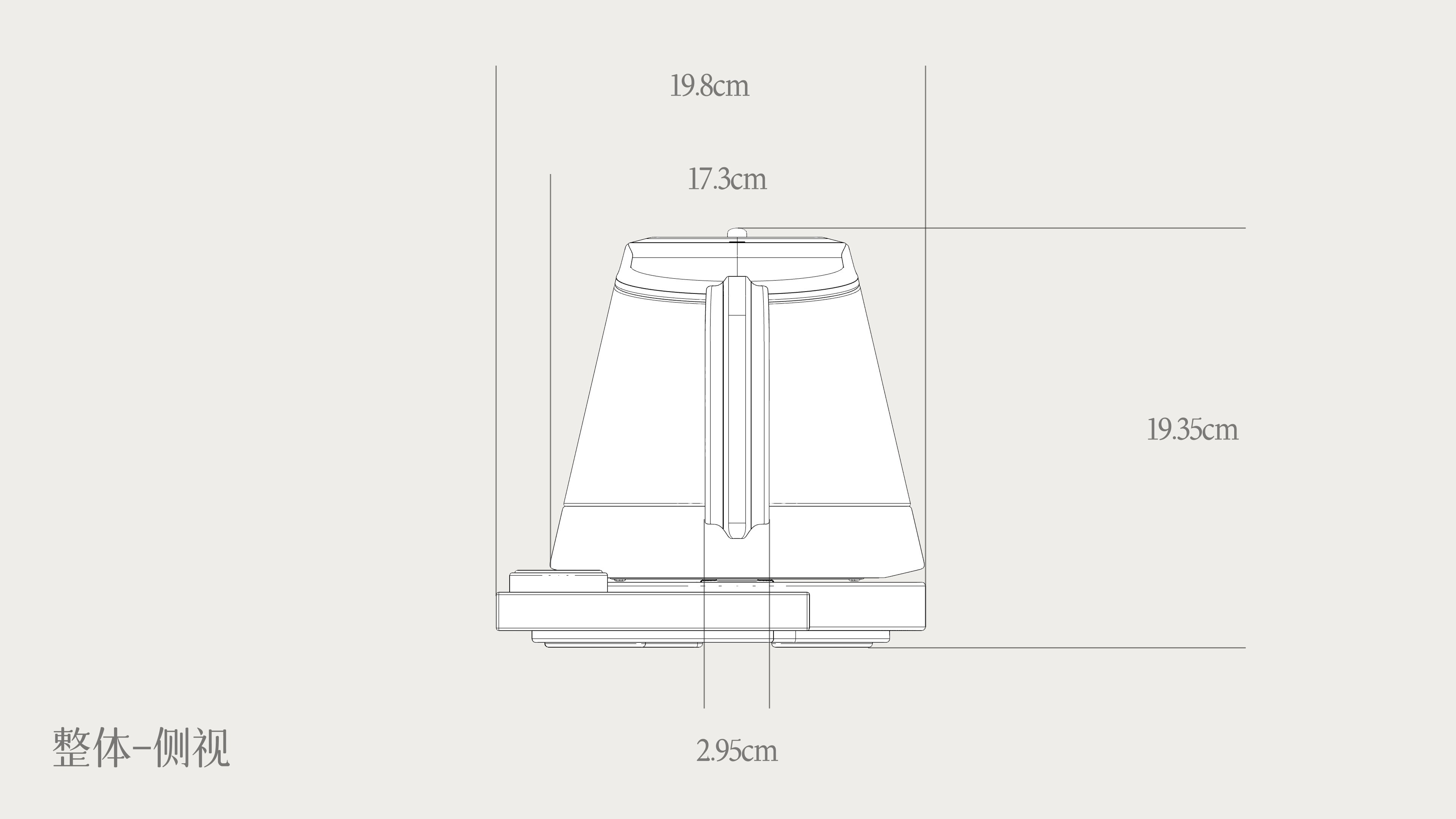

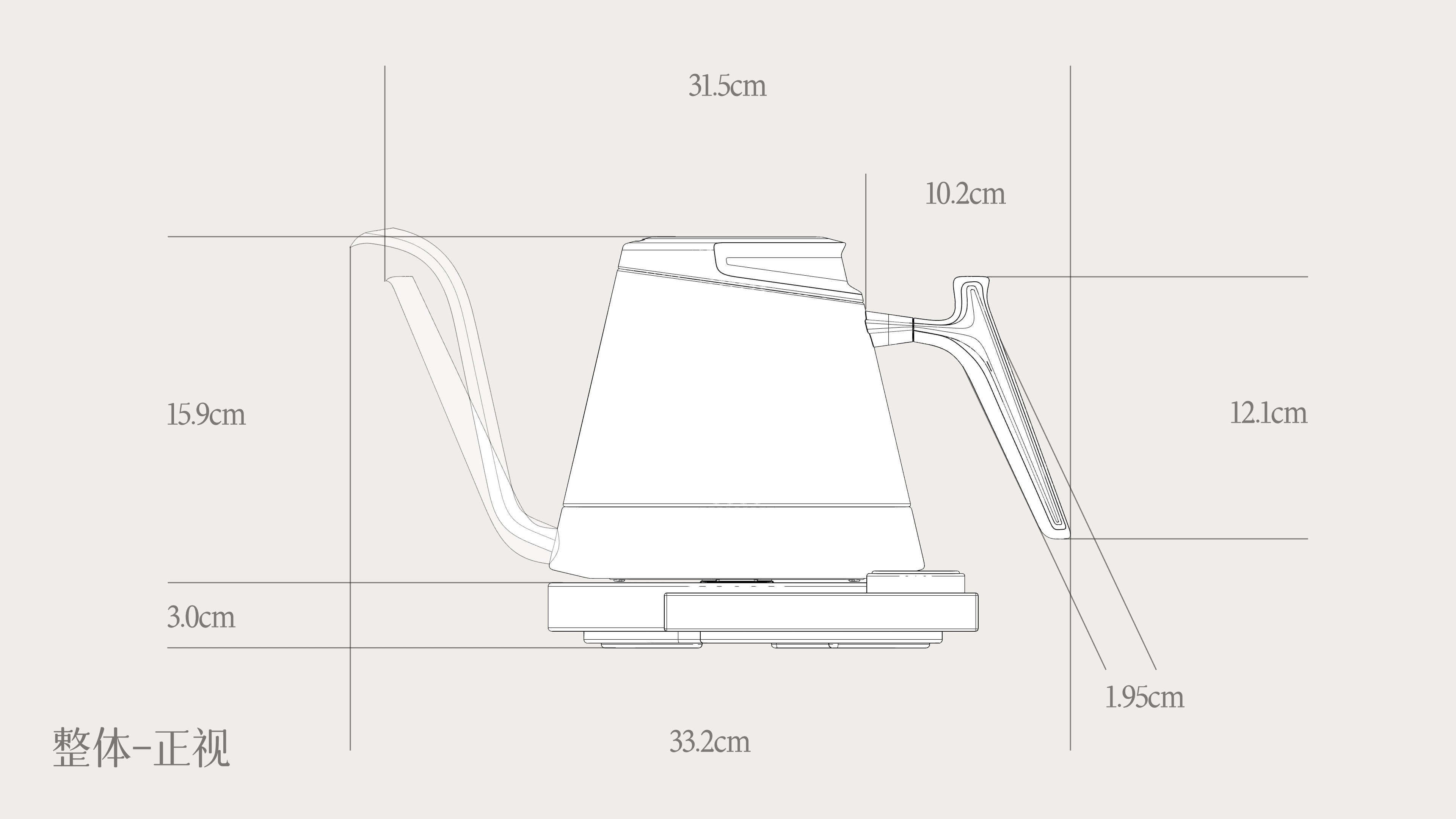

Dimensions

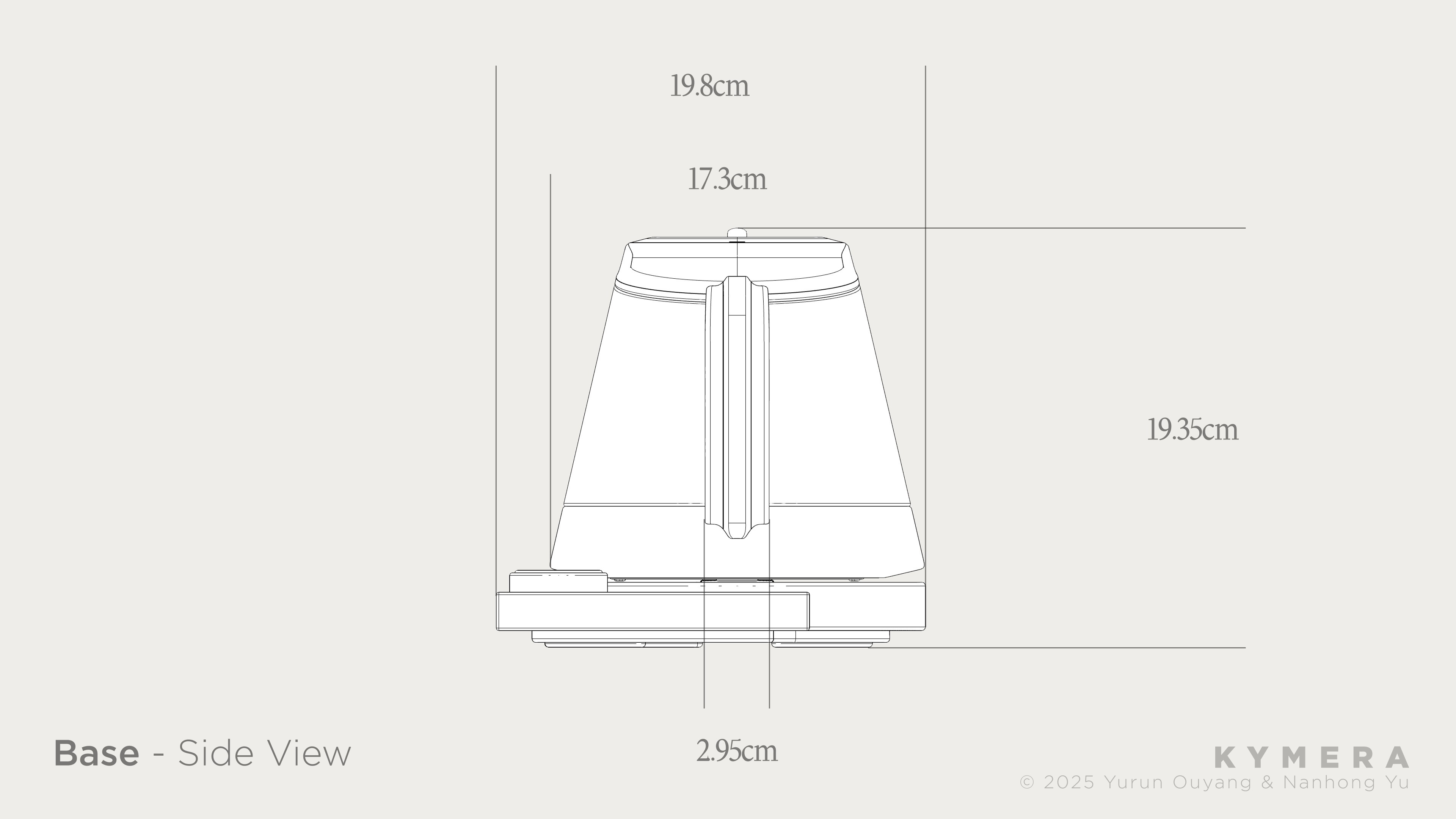

332mm Length x 198mm Width x 193.5mm Height
Materials
316 Stainless Steel, BPA-free Plastic, Silicone, Optional Walnut Wood
Capacity
1000ml
Temperature range
86°F-212°F / 30°C-100°C
Cord Length
3 ft / 91.5 cm Fully Braided
Plug
Type B (USA, MEX, CAN, JPN)
FEATURES

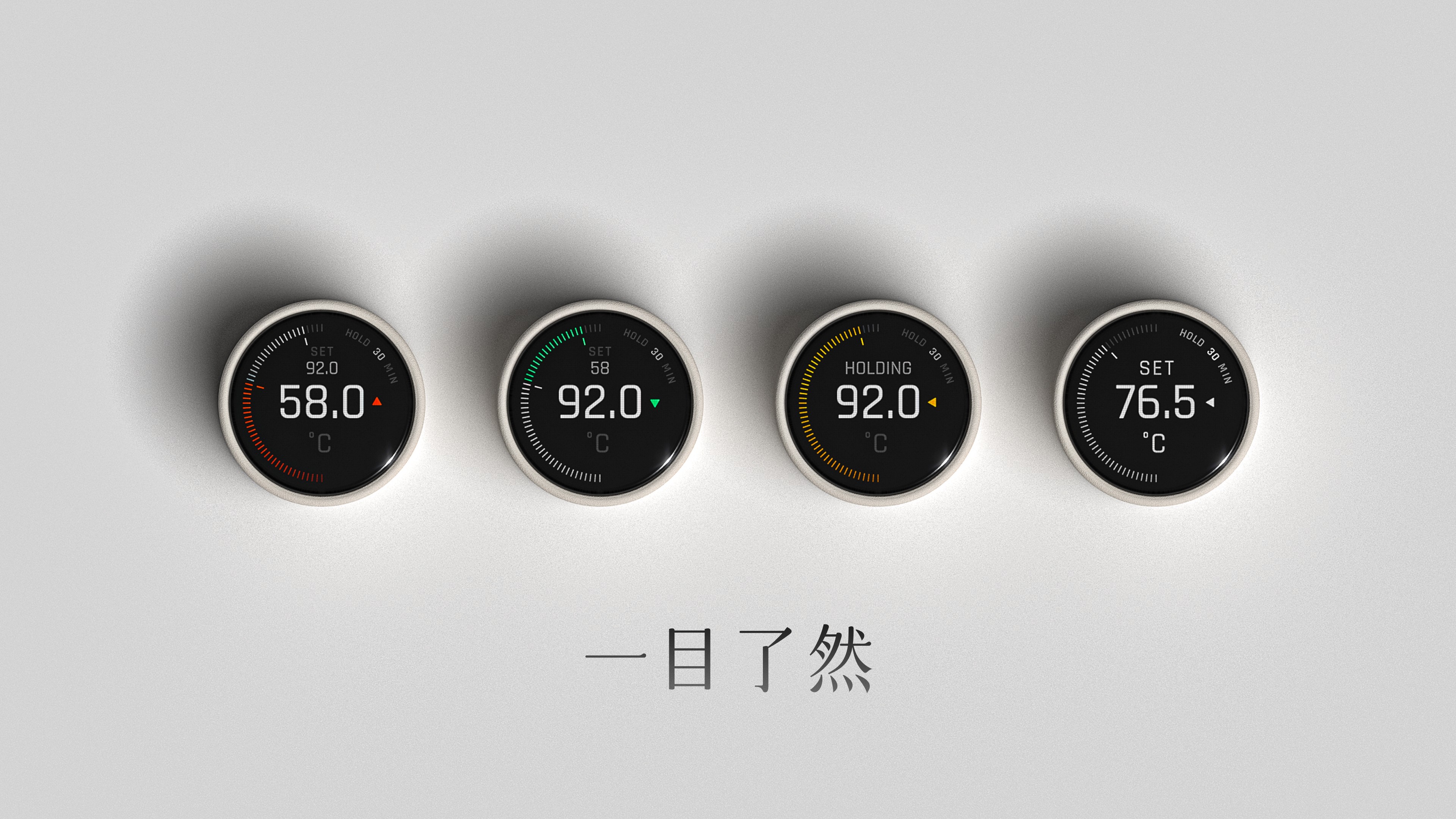

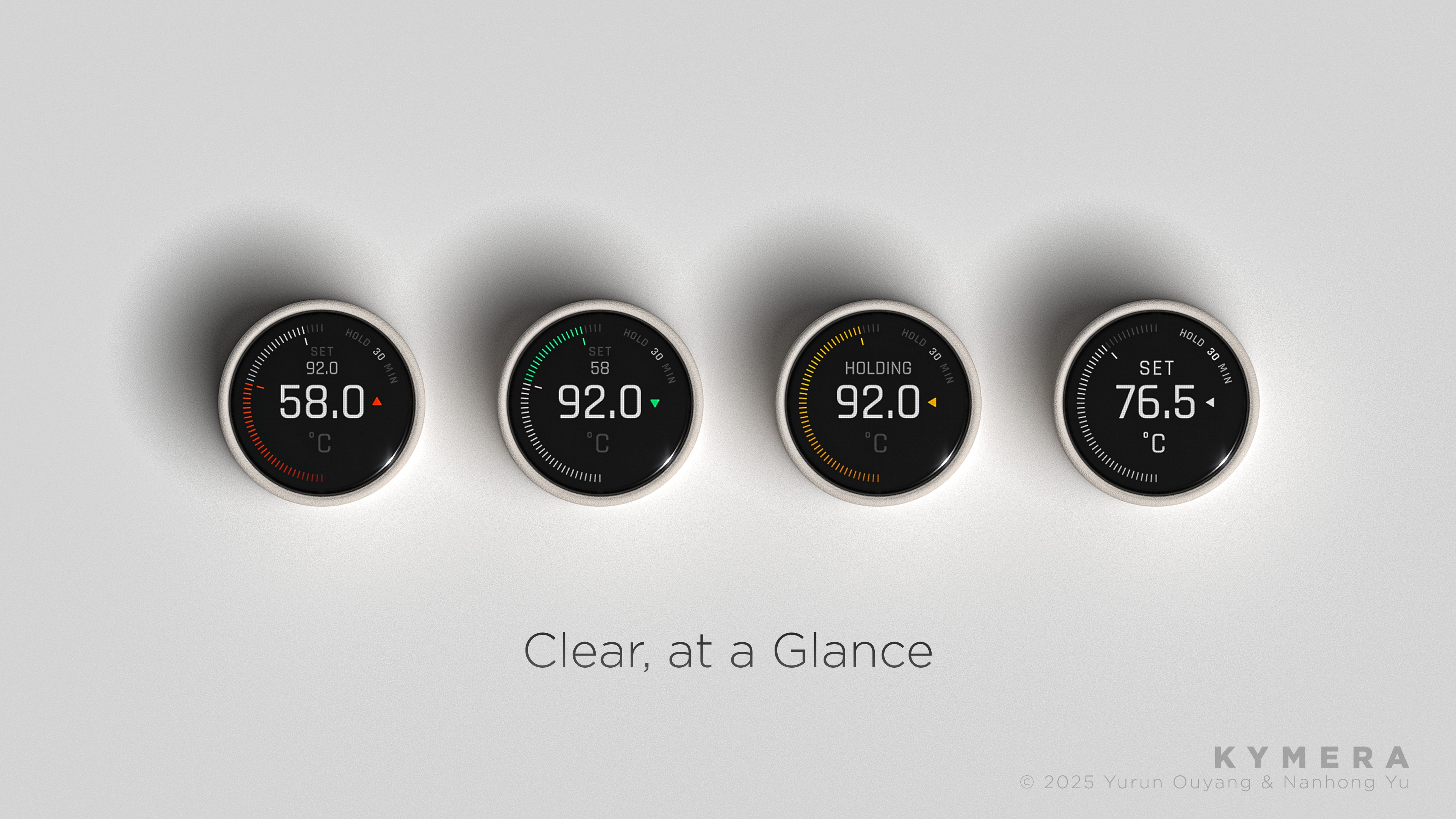

Intuitive Interface

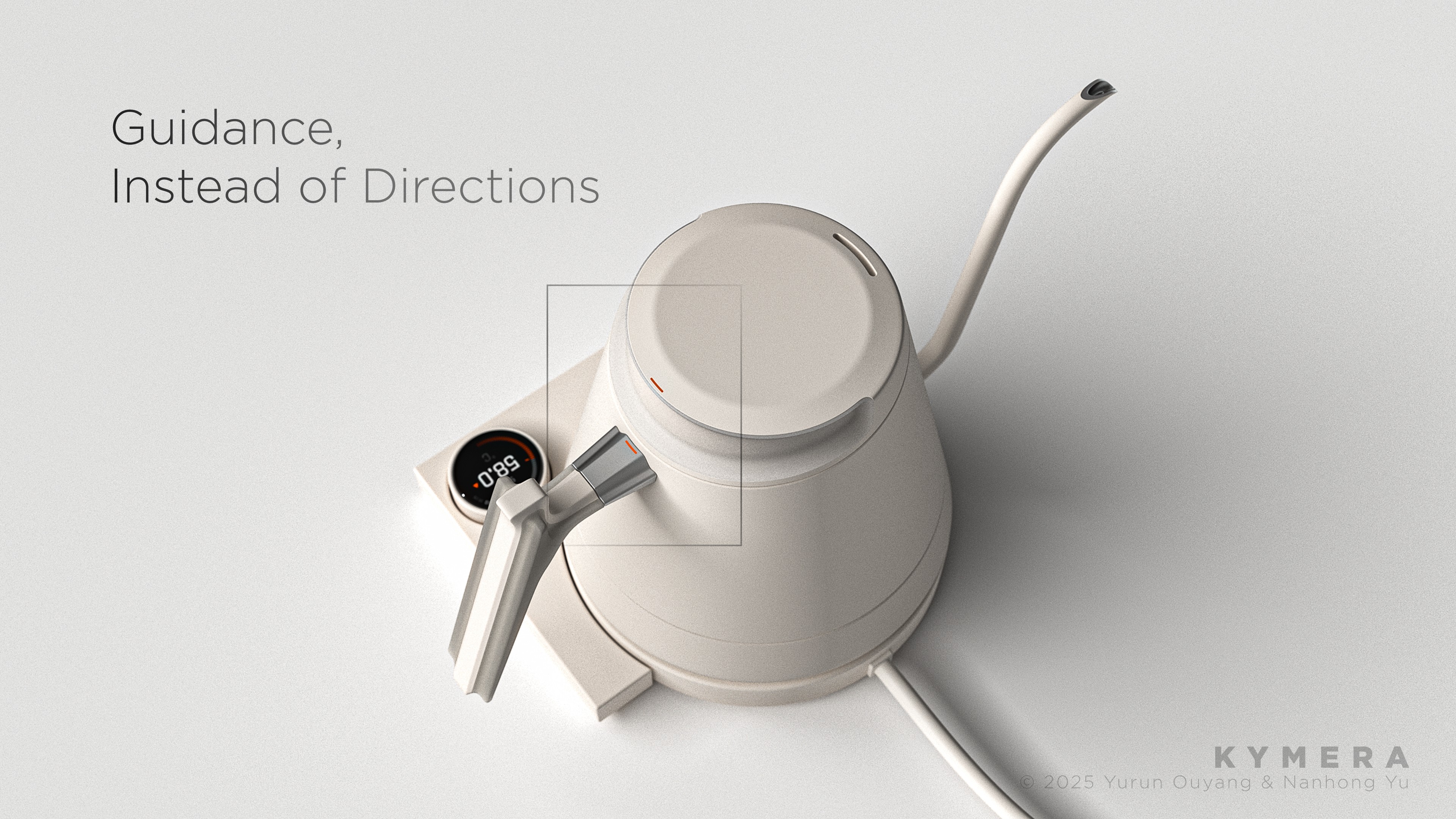

Rounded full-color touch-sensitive display provides immediate visual feedback and effortless control. Designed with clear iconography, a color-coded system, and animated indicators, it enables users to understand the kettle’s status at a glance.
Haptic Control Knob
Equipped with a high-precision haptic input knob that features dynamic virtual snap points, detents, end bounds, plus push-encoder. Providing tactile feedback and distinct interaction profiles that is tailored to different interface mode.
Boil Time Countdown
An intelligent countdown that estimates time to target temperature using real-time power, water volume, and heating rate—displayed in 5-second increments for precision and peace of mind.

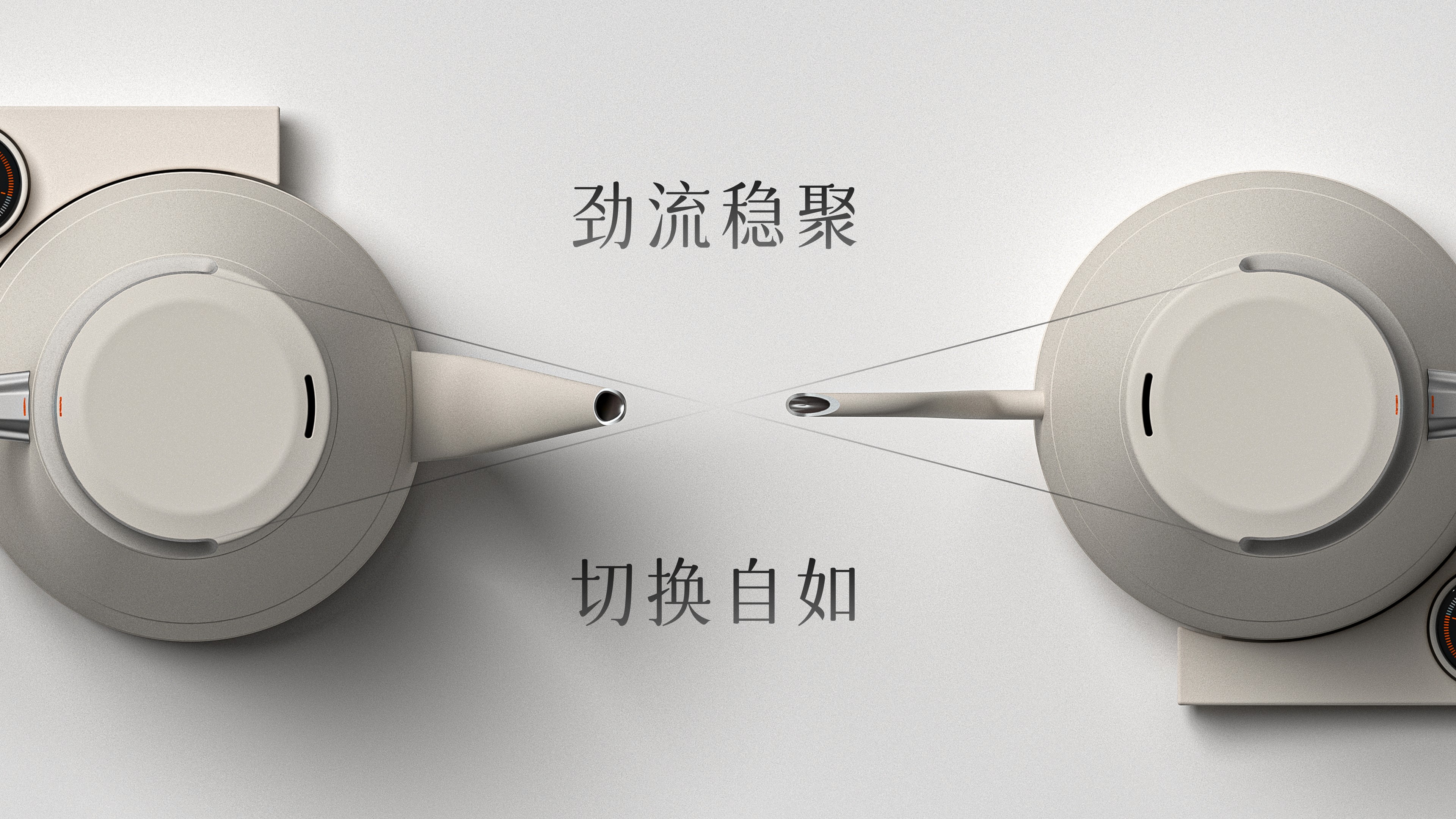

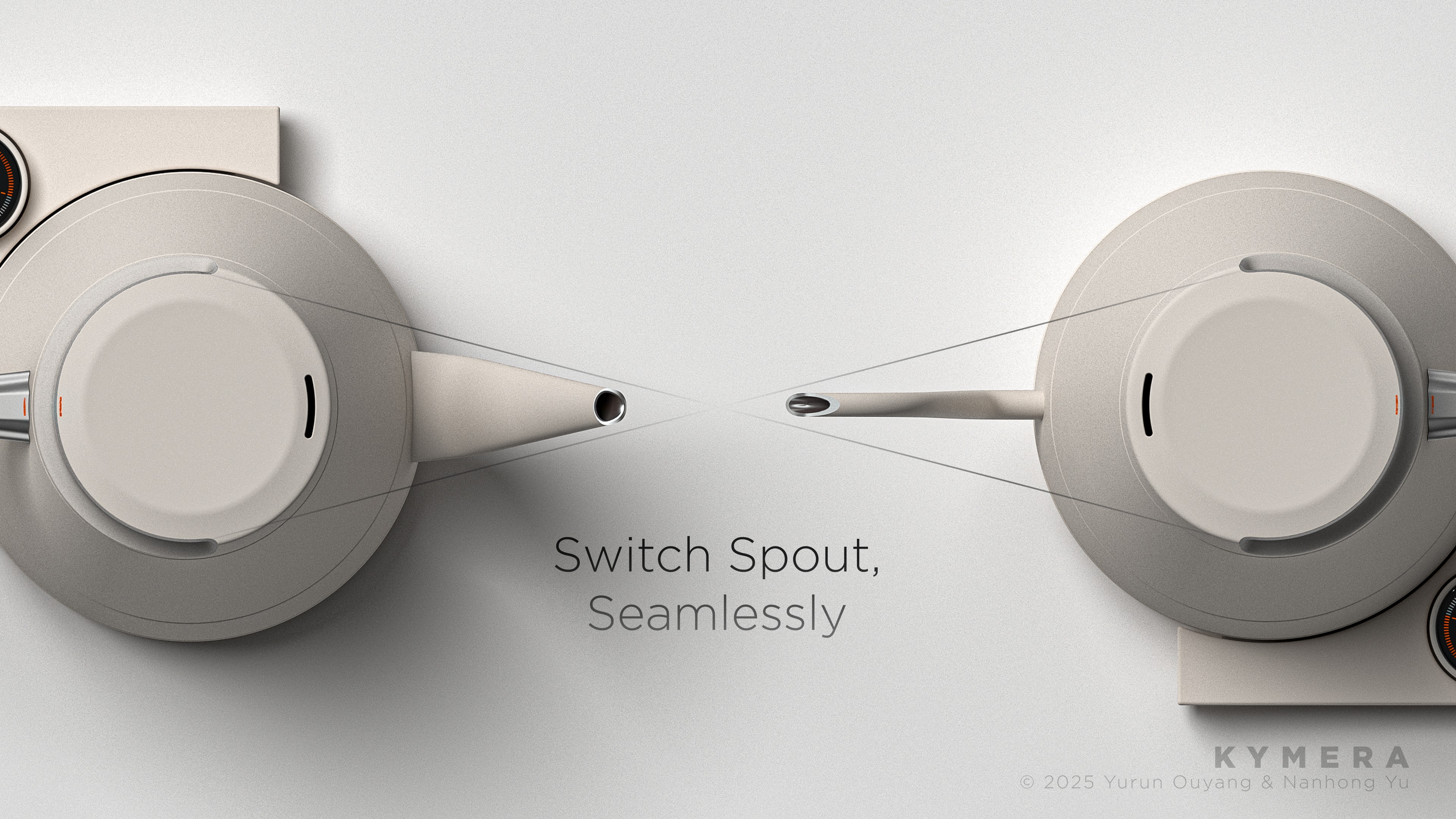

Quick-Swap Spouts

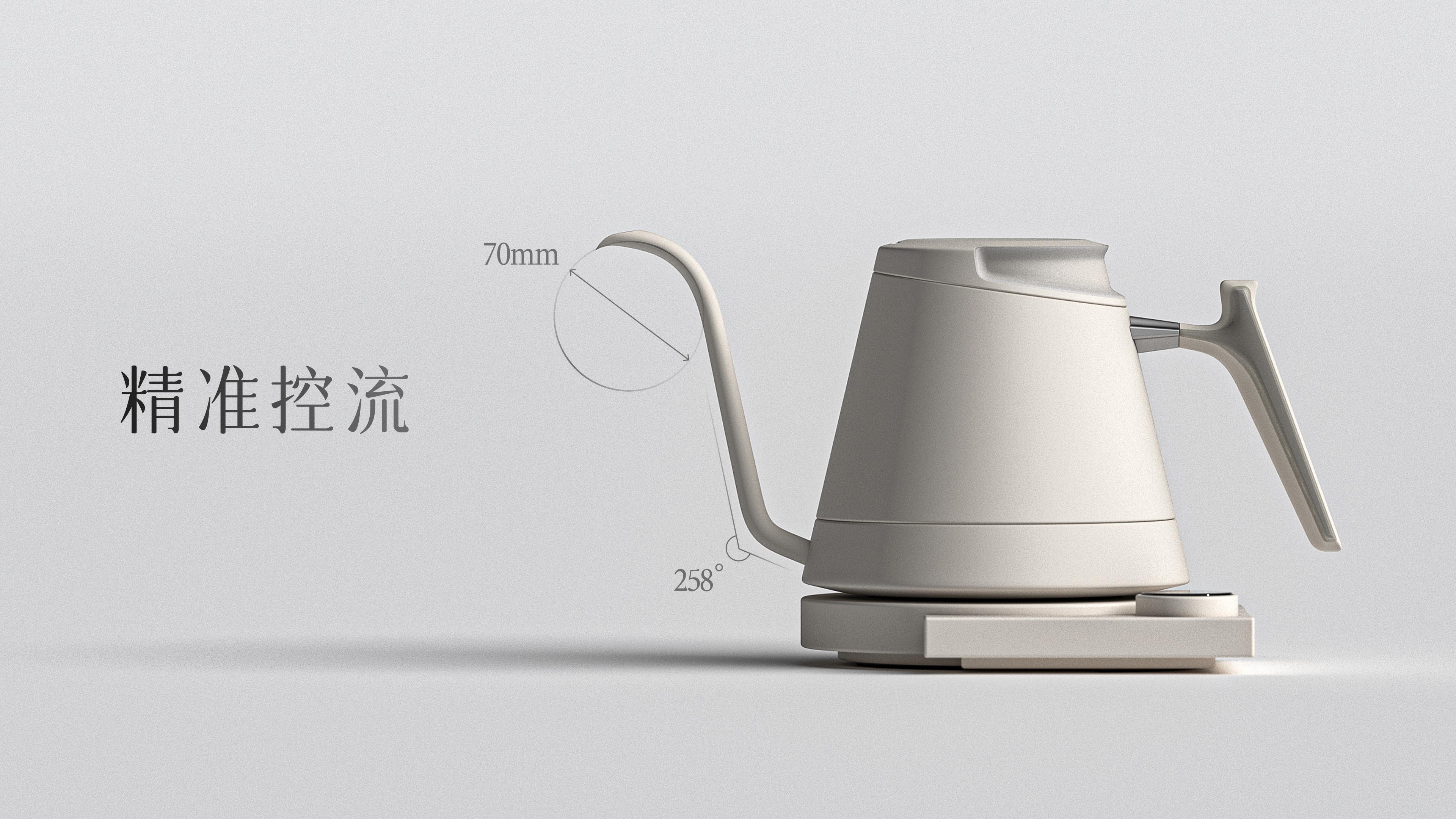

Effortlessly switch between the tea spout or coffee spout to match your brewing method—precision for pour-over, flow for steeped tea.
Silent Boil Mode
Heat water quietly with low-power, slow-ramp boiling—ideal for serene settings like tea ceremonies or quiet mornings, emulating the calm of traditional stovetop kettles.

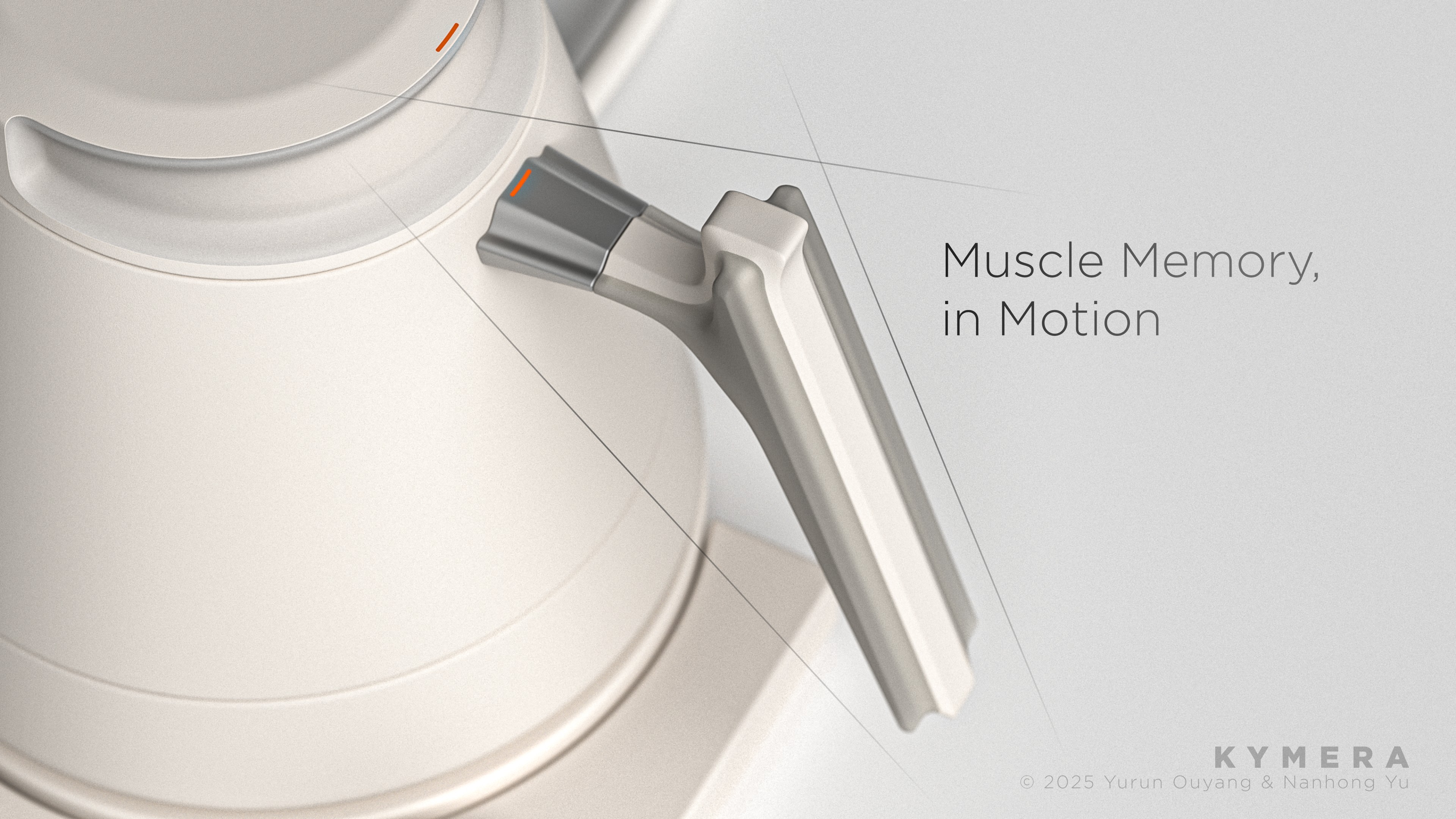

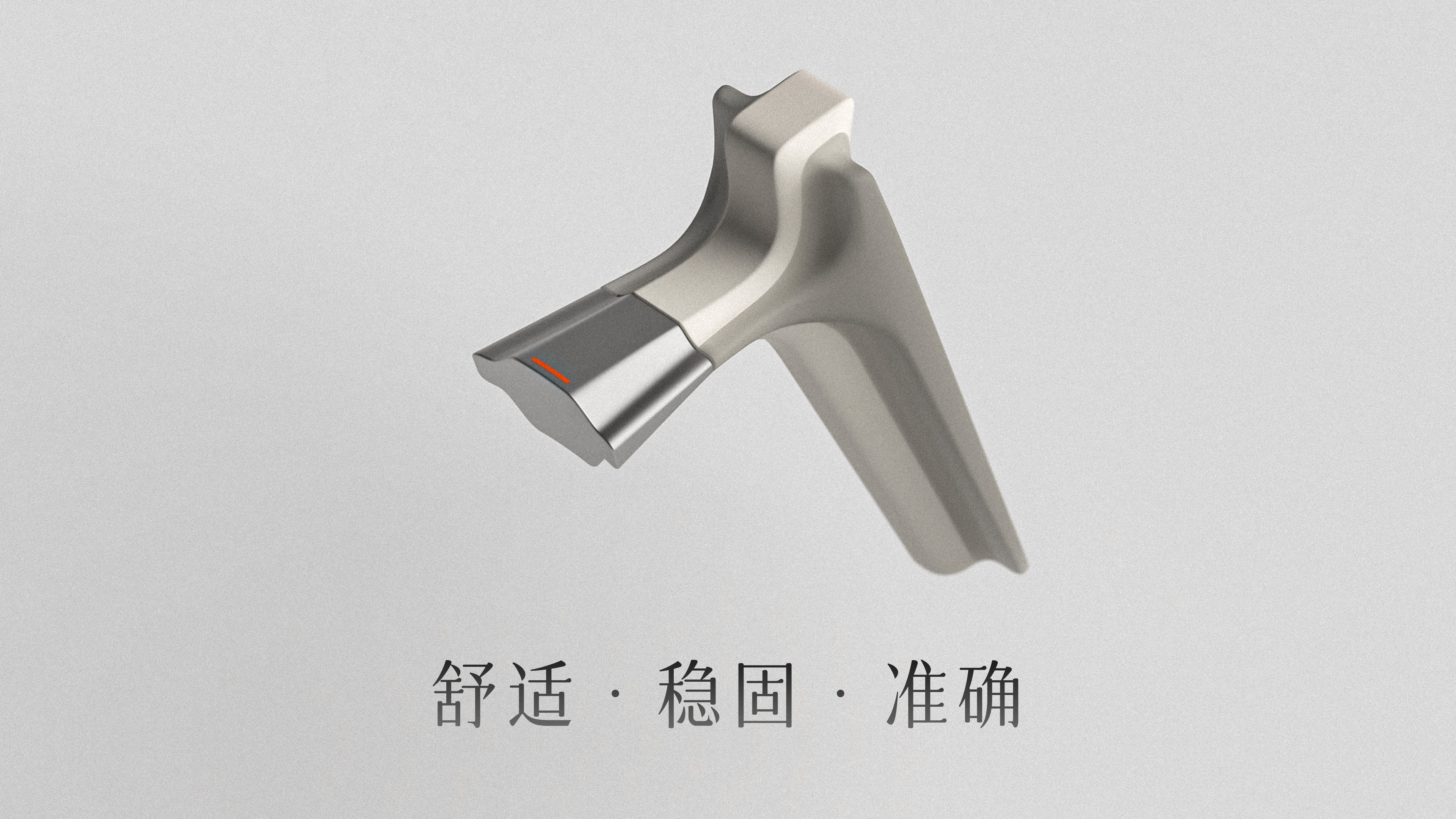

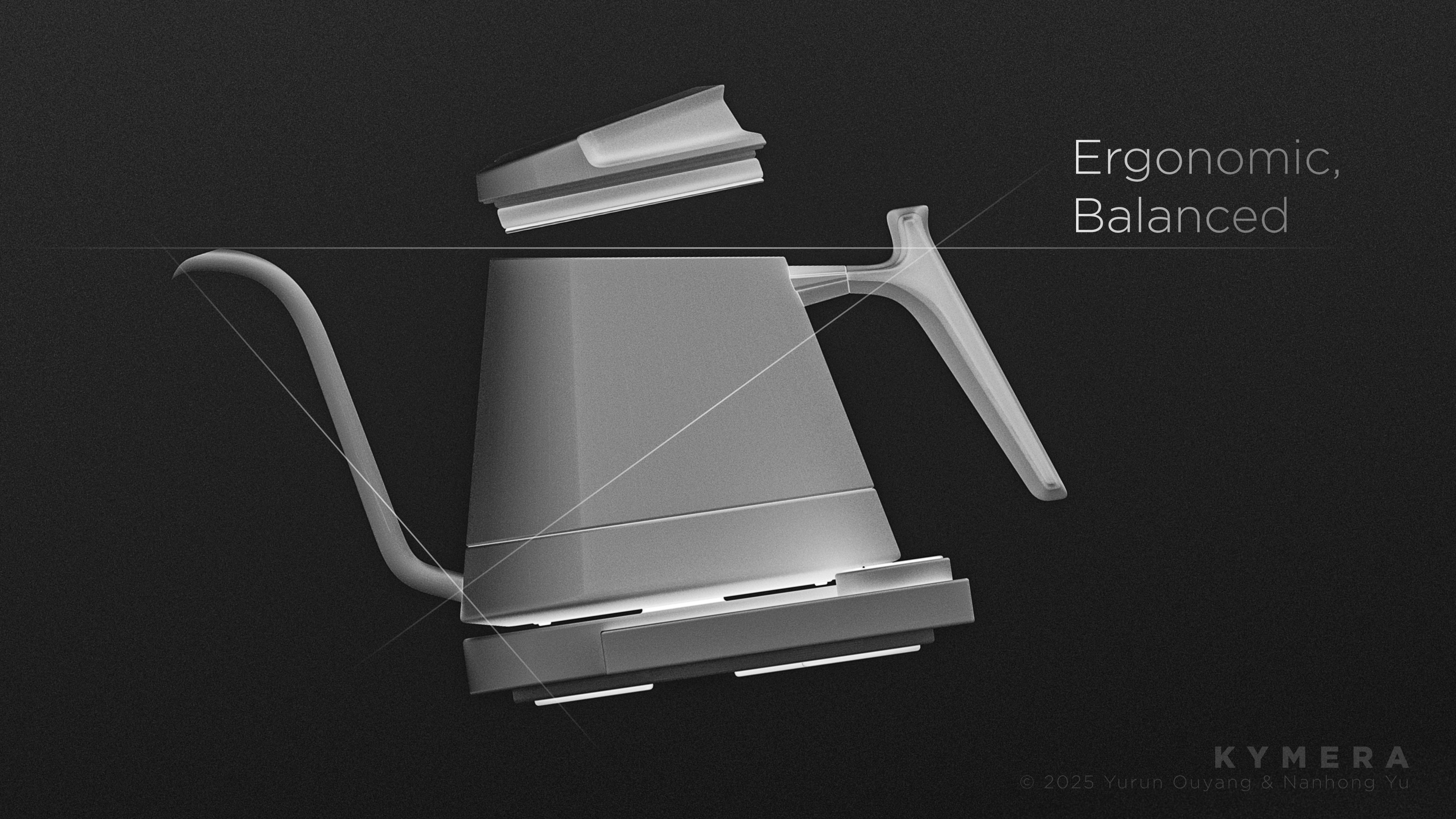

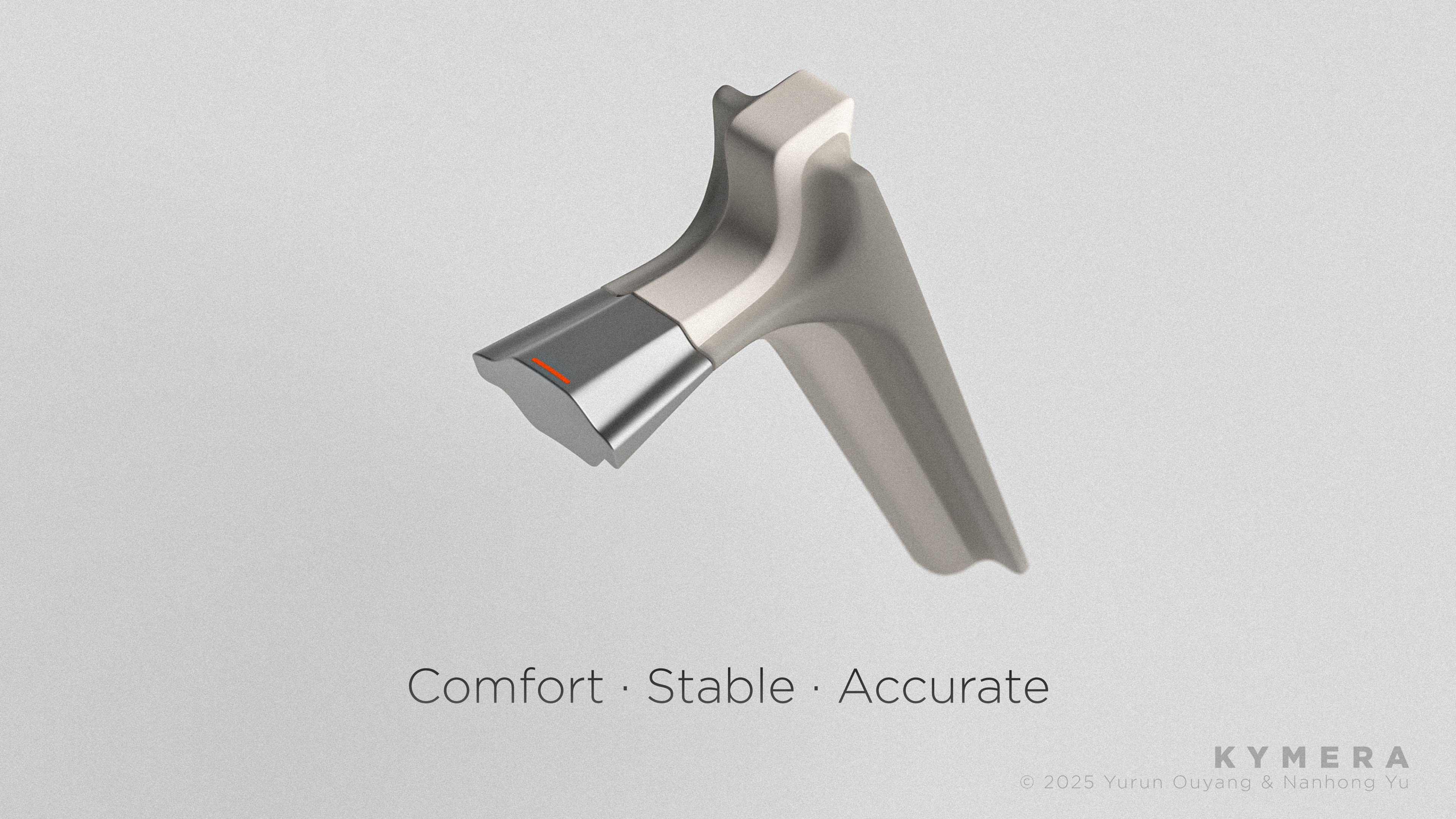

Ergonomic Multi-Grip Handle
Designed to support three natural grip styles, ensuring comfort, balance, and control no matter how you hold it.
Remote Control
Connect to your kettle through a mobile app to start heating, adjust settings, or schedule brews from anywhere—convenience at your fingertips.
Auto Shutdown Detection
Automatically powers down the heating system when water has fully evaporated or when left unattended—ensuring safety and peace of mind.

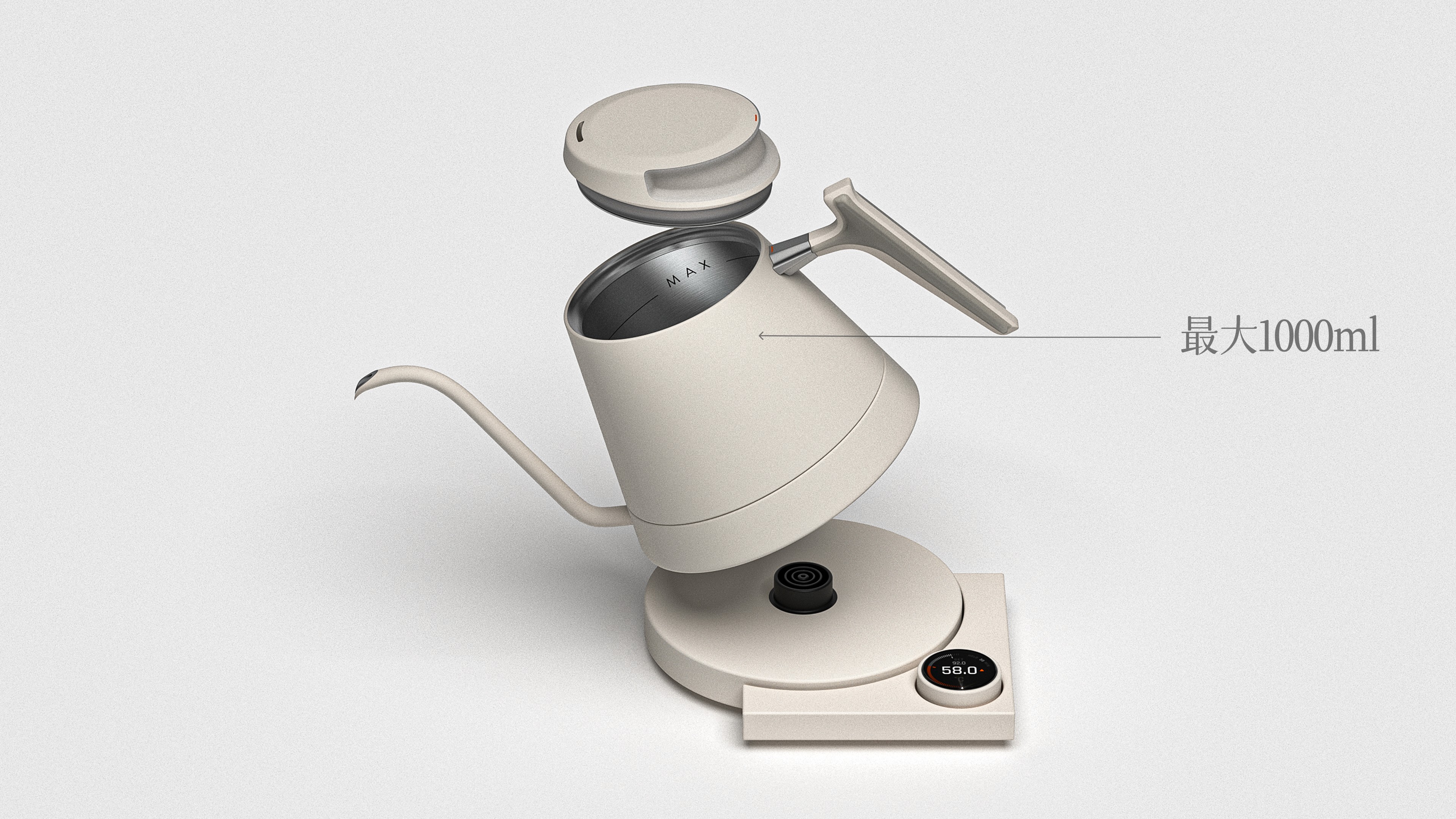

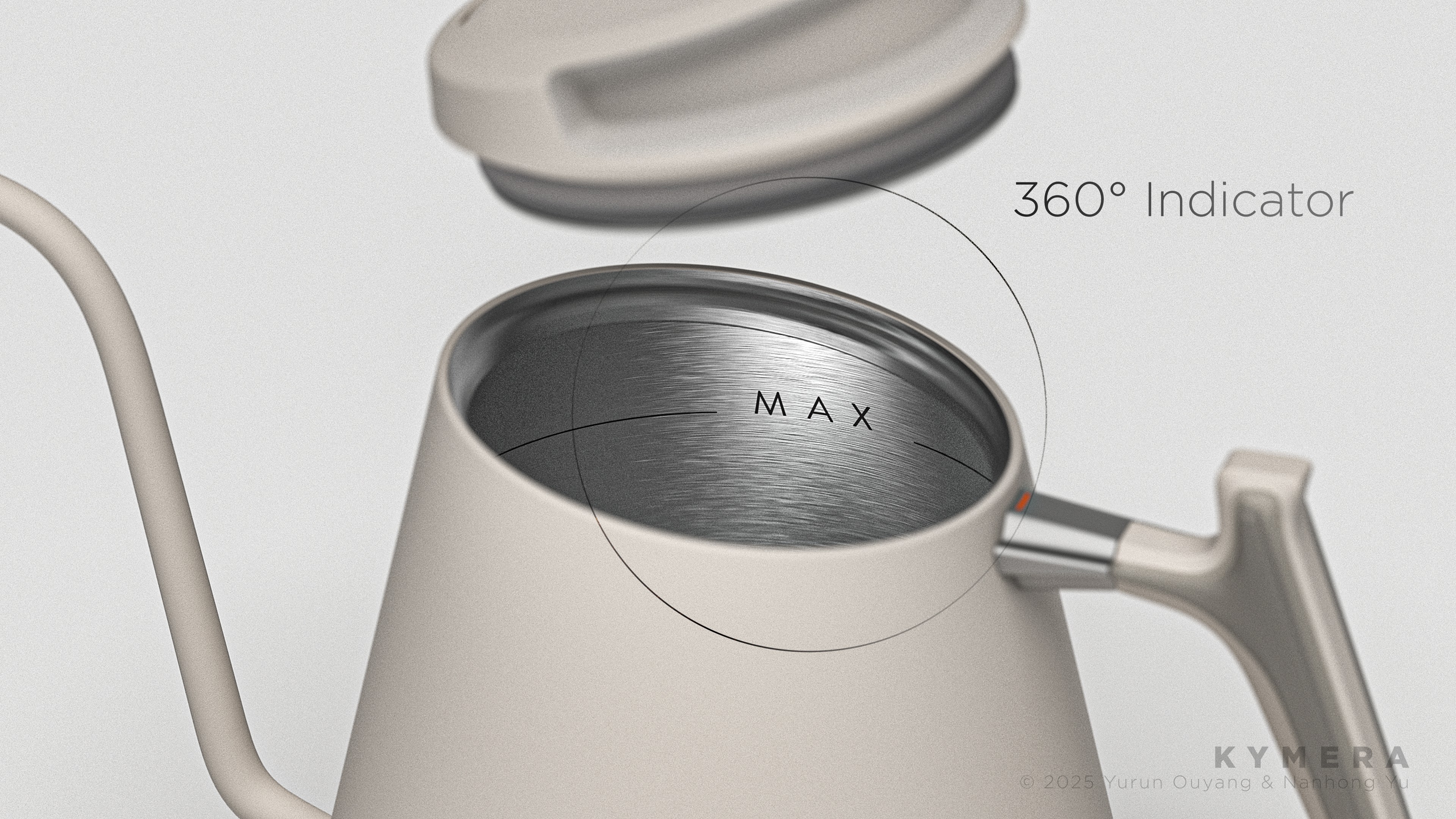

360° MAX Water Indicator
A wraparound internal marker lets you check the maximum fill level from any angle—no tilting, no guessing.
ADDITIONAL FEATURES
Scheduled Heating
Set precise heating times by day of the week—wake up or come home to water ready at your preferred temperature.
Integrated Brew Timer
A built-in stopwatch keeps pour-over and steeping times accurate—no external timer needed.
Altitude Calibration
Adjust for your local elevation to ensure accurate boiling and prevent overflow at high altitudes.
Custom Hold Duration
Maintain your target temperature for exactly as long as you choose—no more, no less.
Chime & Volume Settings
Get notified when your water's ready with a friendly chime—customize the tone, volume, or silence it entirely.
Sanitize & Cool
Automatically heat to a full boil for sanitization, then cool down to your set brewing temperature.
Temperature Units
Switch freely between Fahrenheit and Celsius to match your preference or recipe.
Multi-Language Interface
Supports multiple languages including English, Chinese, French, and Spanish.
OTA Updates
Stay current with over-the-air software updates—new features and improvements delivered directly to your device.
Design Proposal

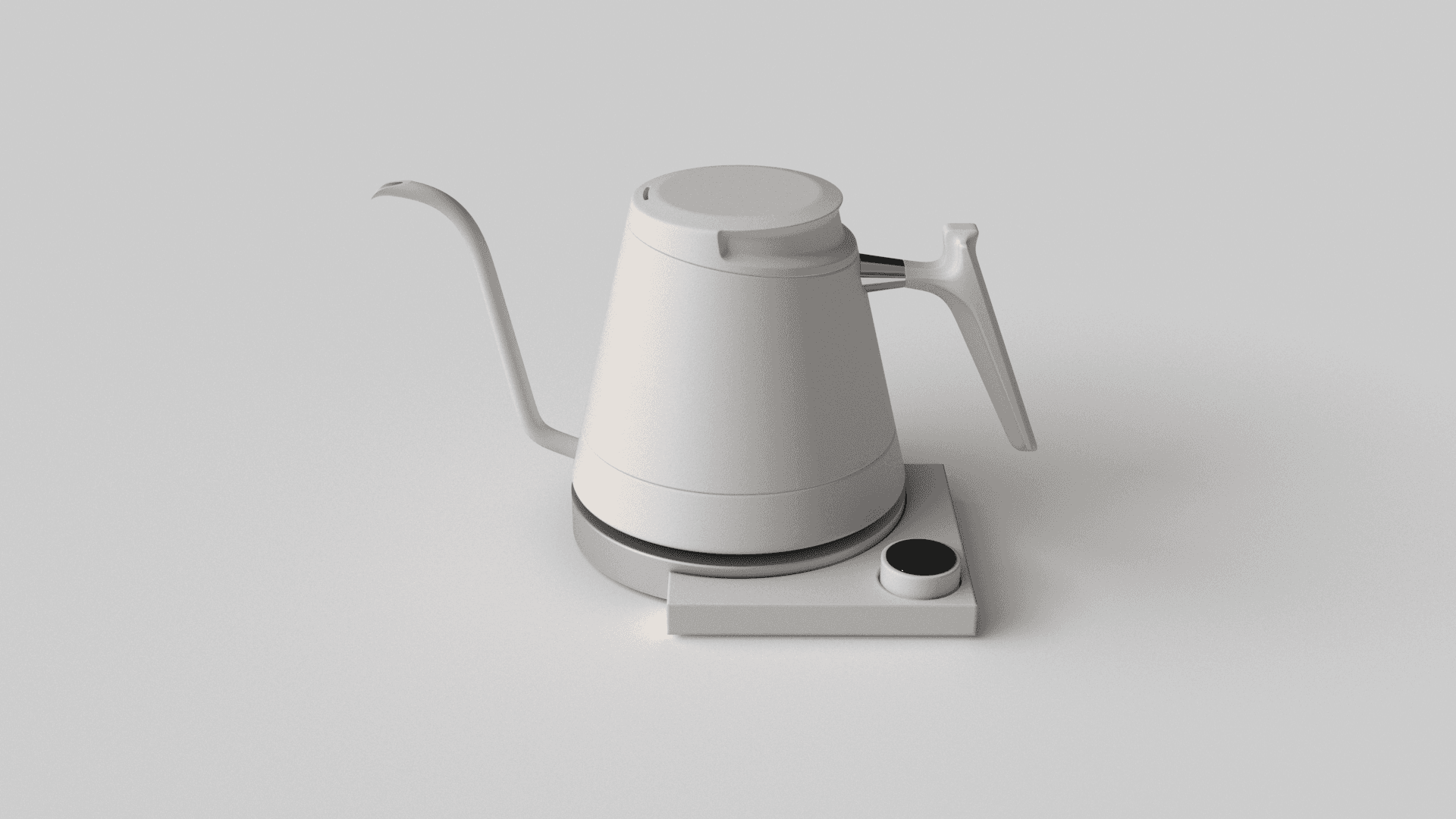

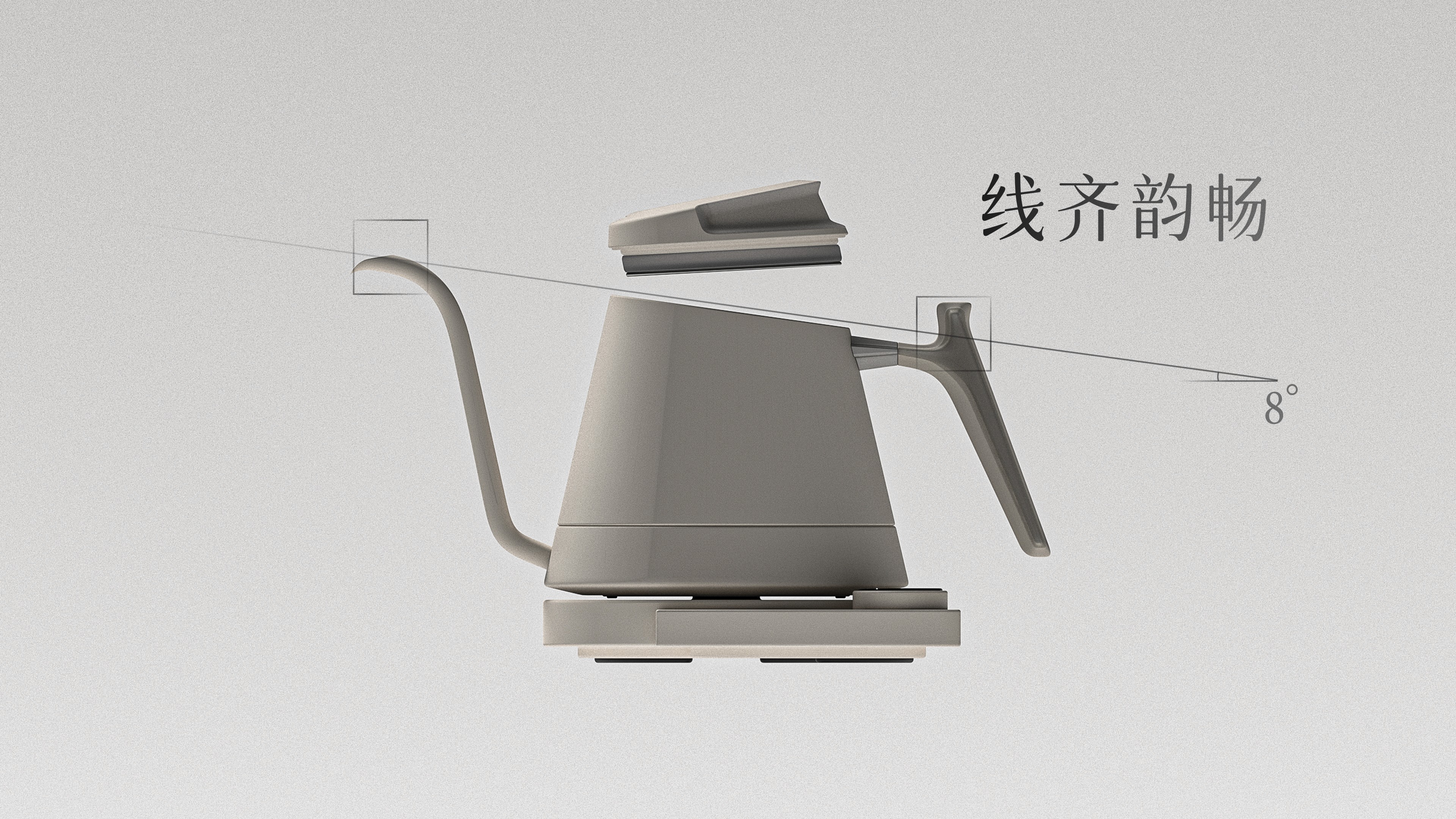

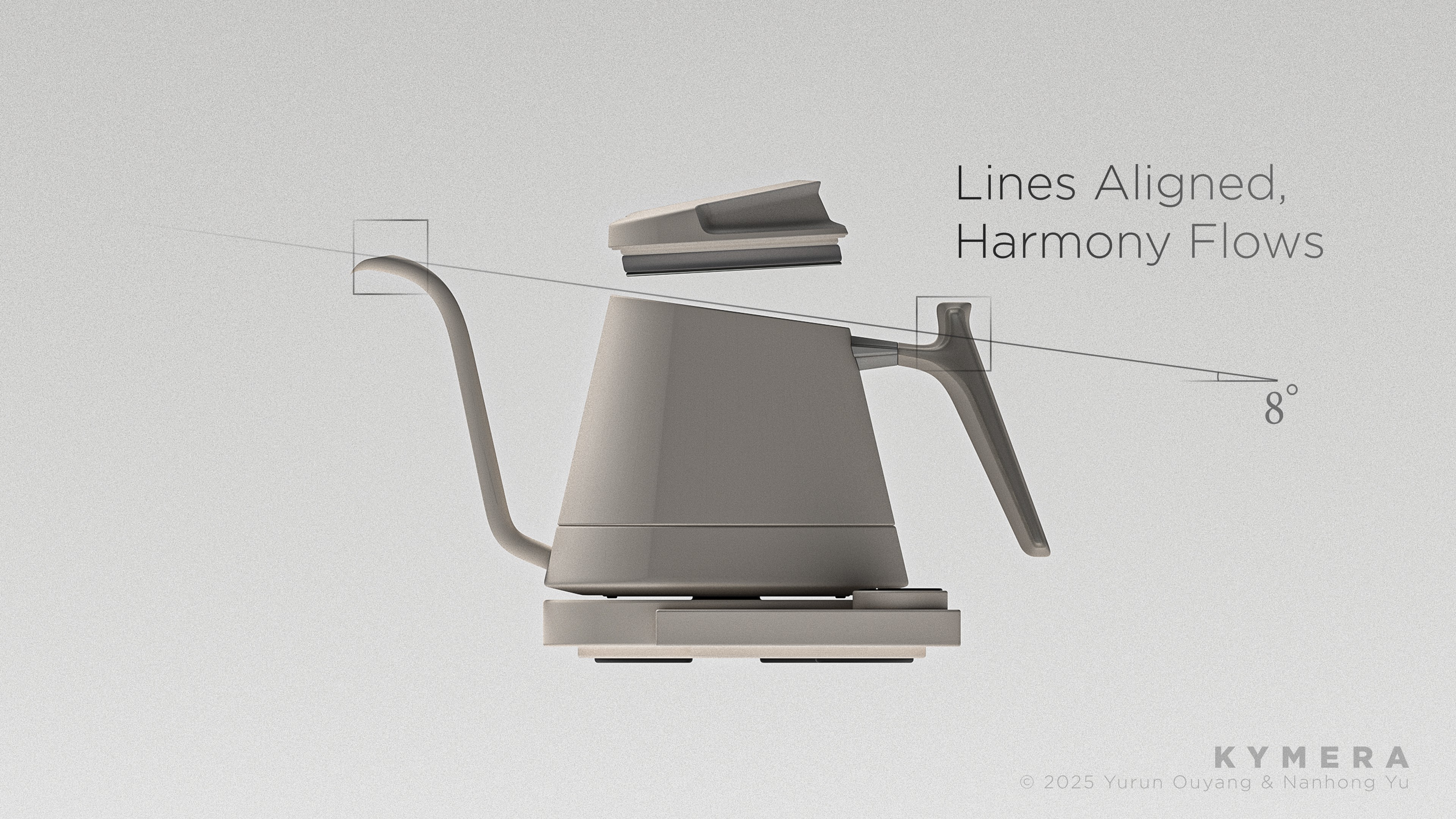

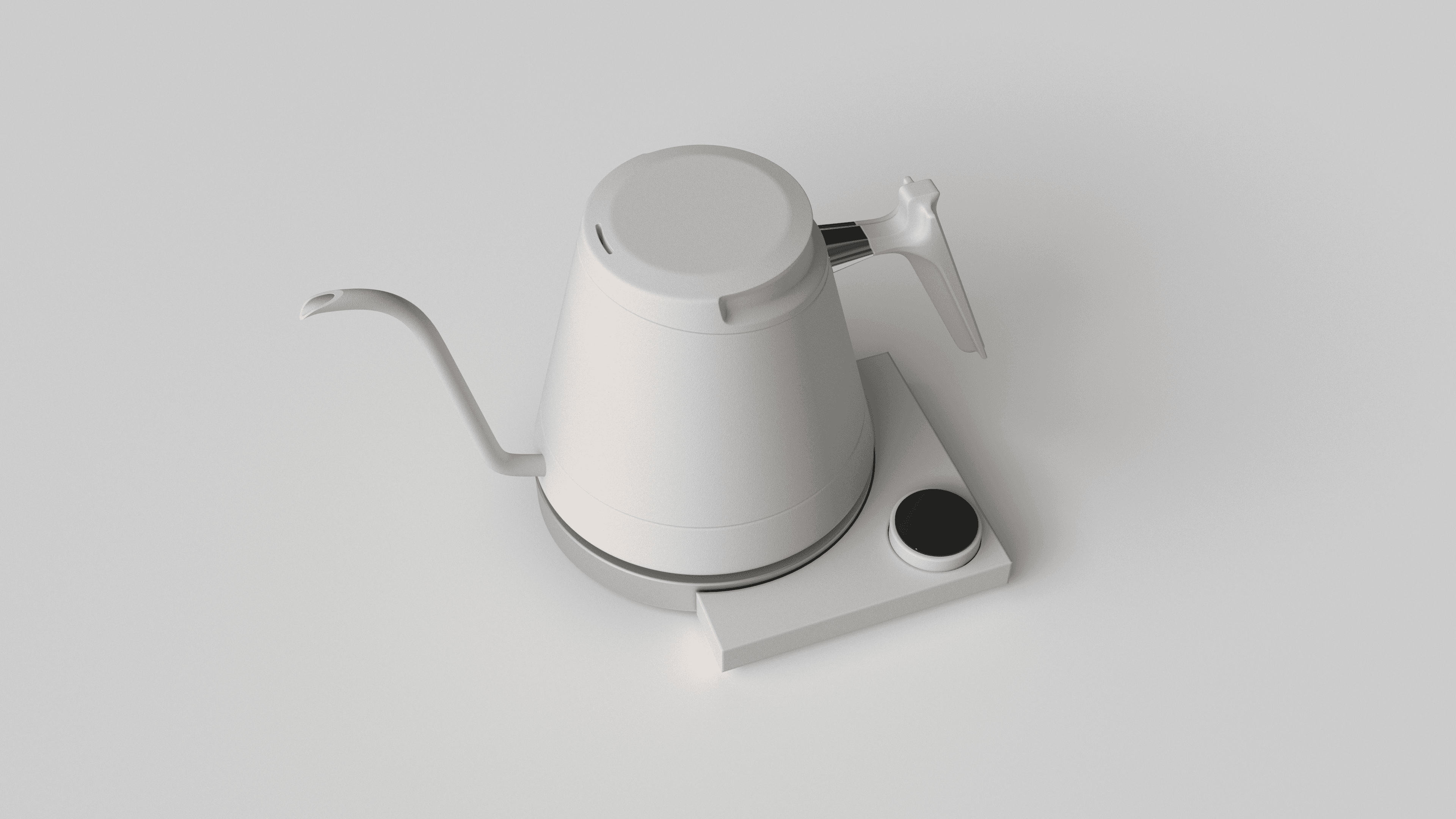

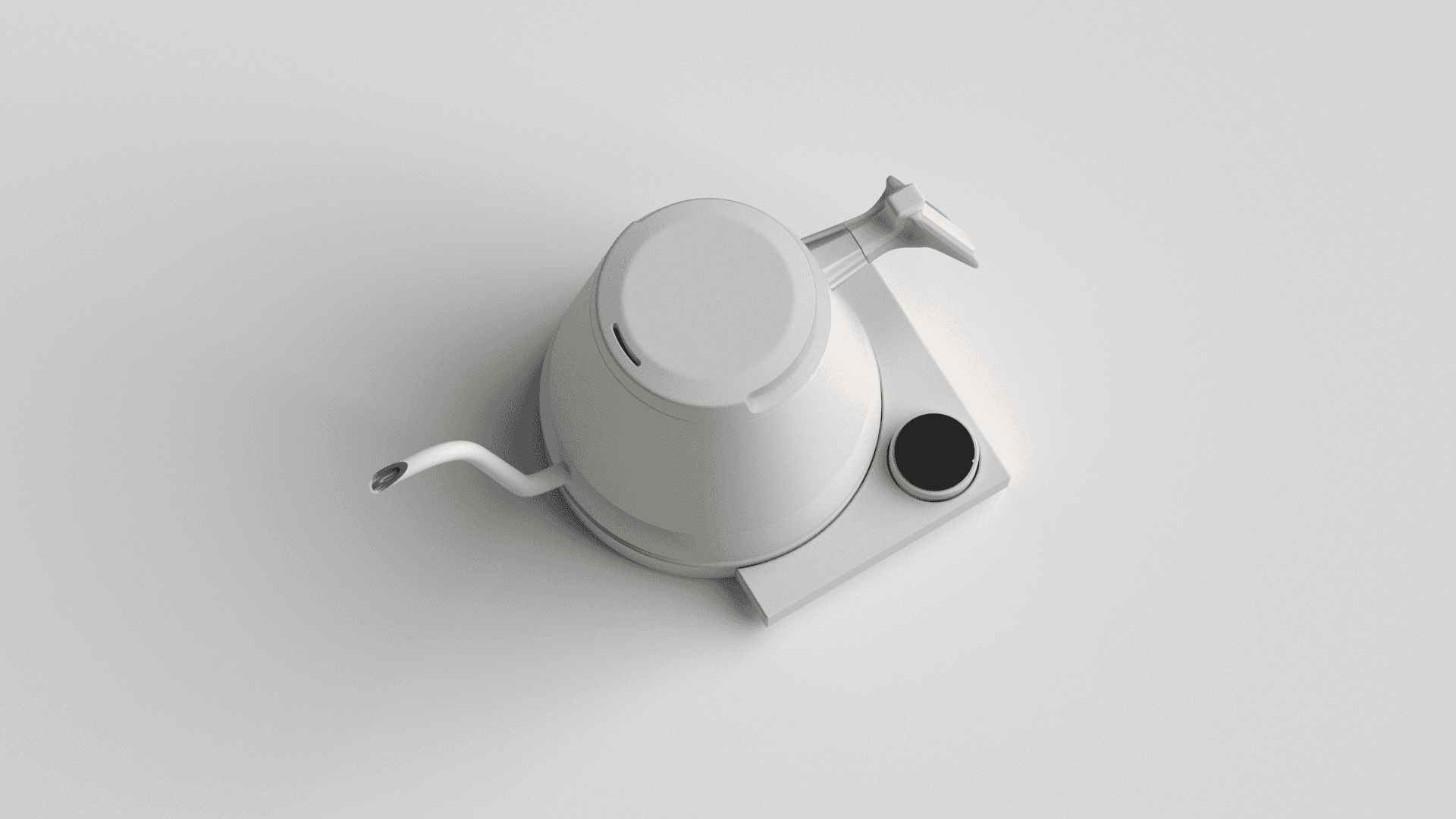

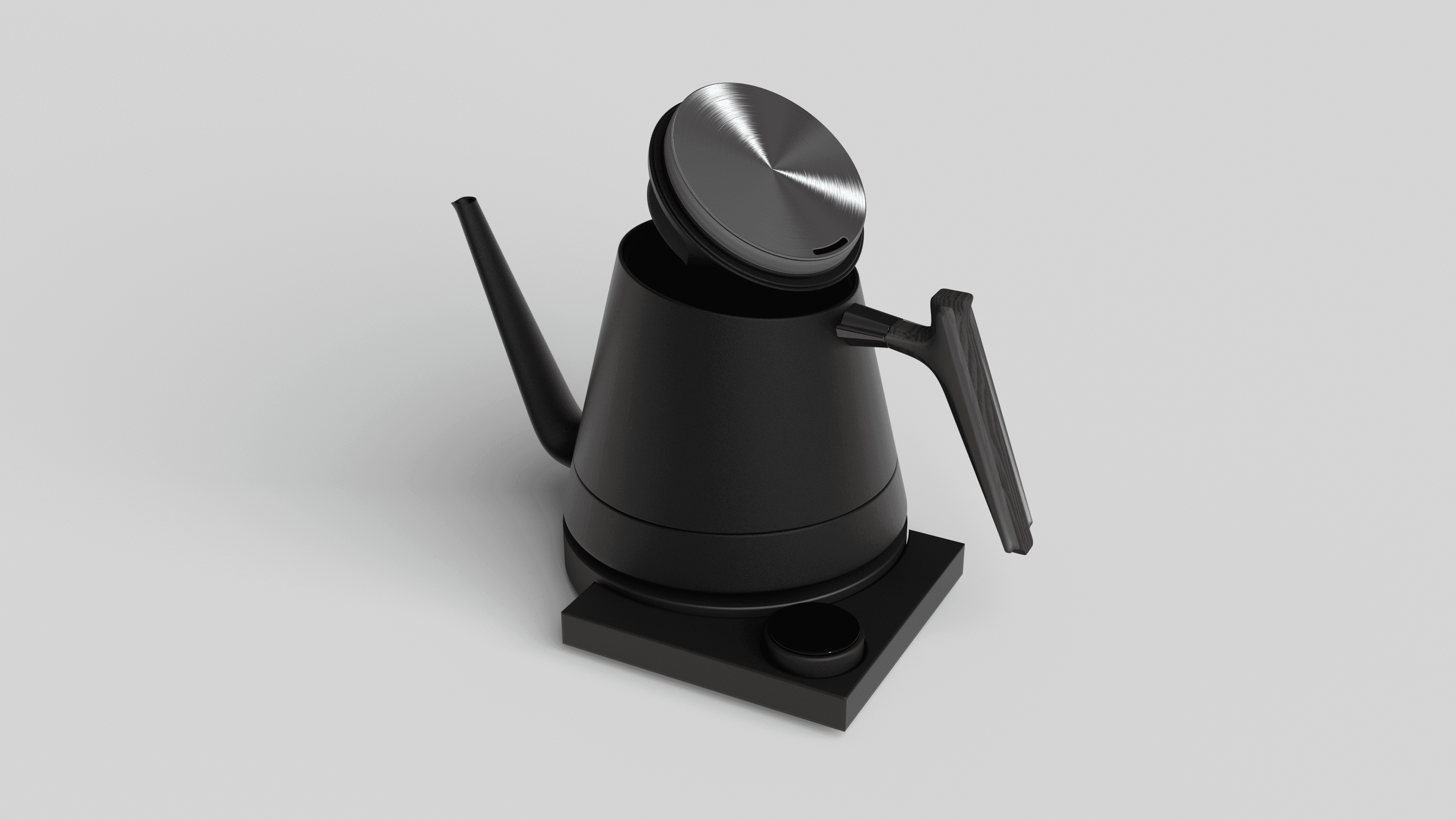

Kymera is a dual-purpose electric kettle thoughtfully designed for both pour-over coffee and steeped tea. Merging precision engineering with intuitive interaction, the design emphasizes modularity, ergonomic comfort, and seamless user experience—balancing tradition with innovation in every detail.

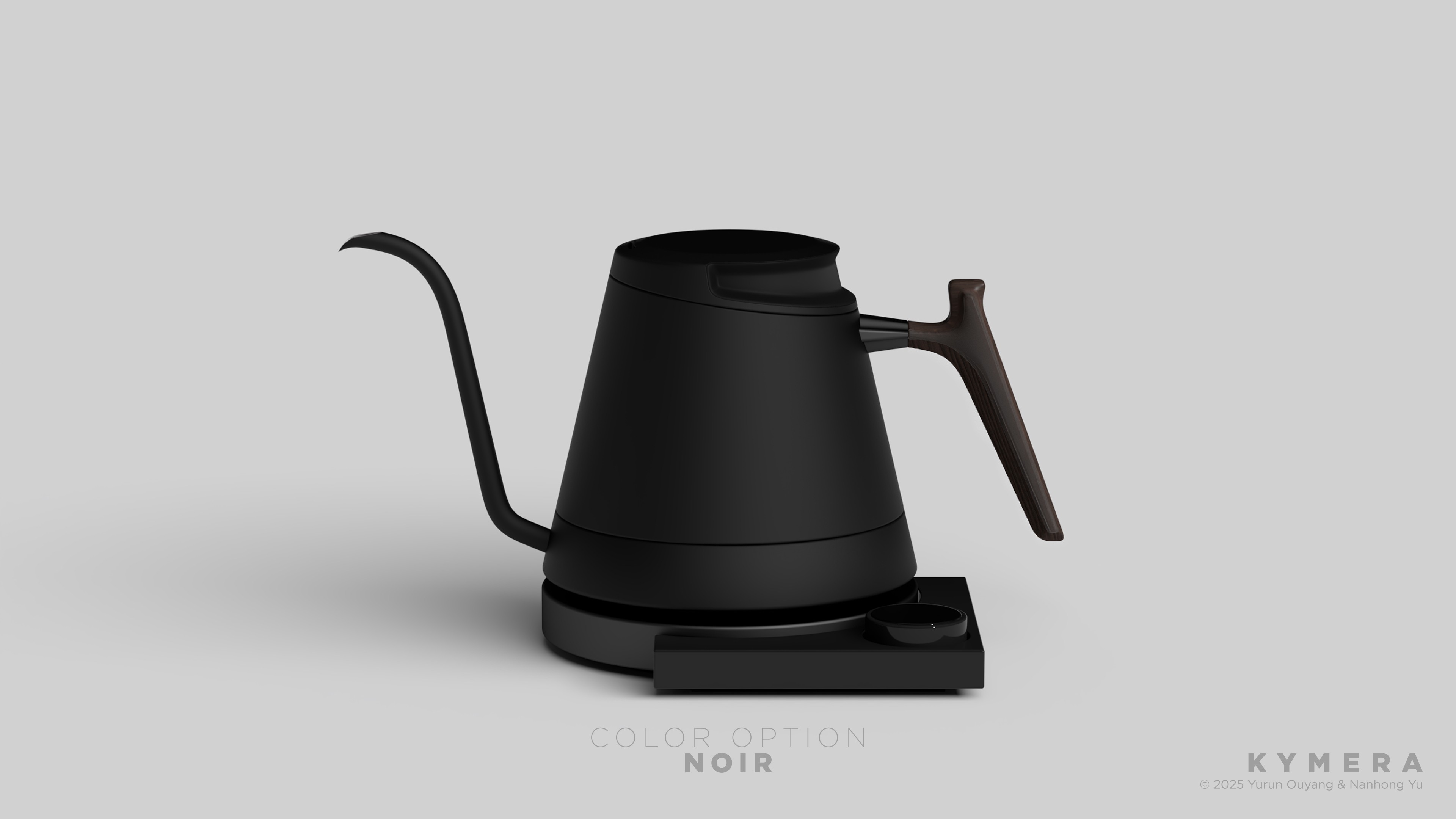

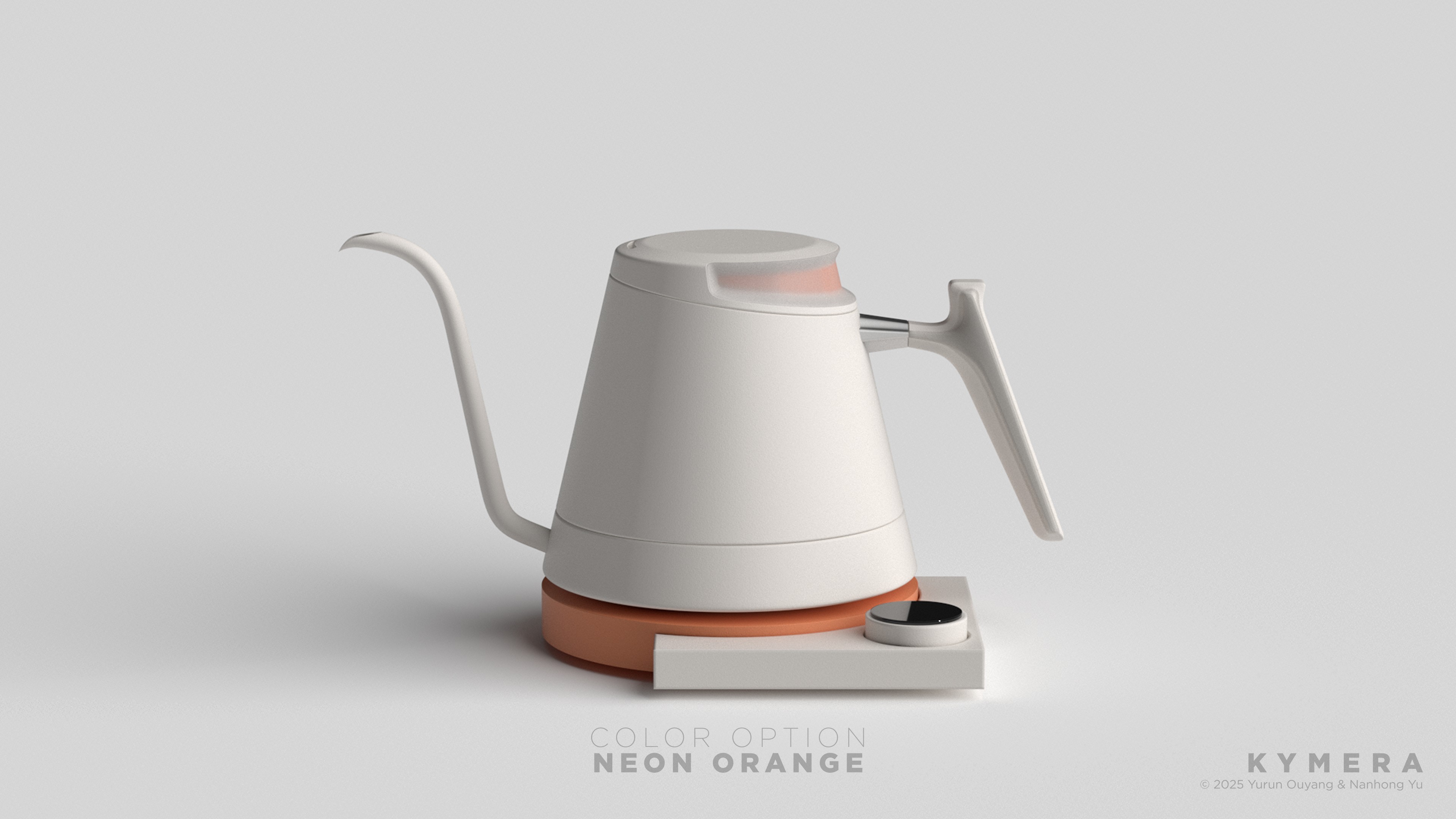

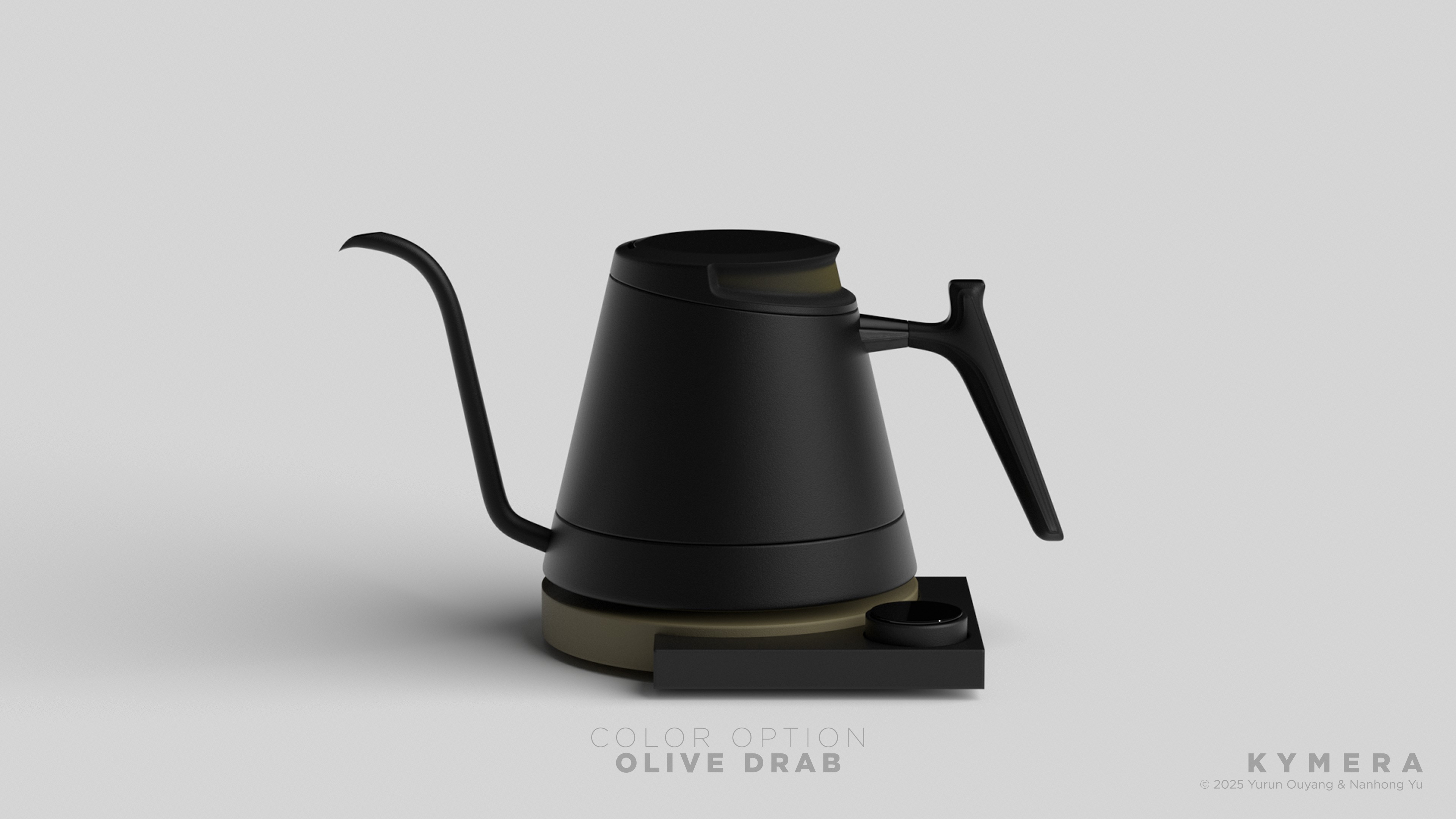

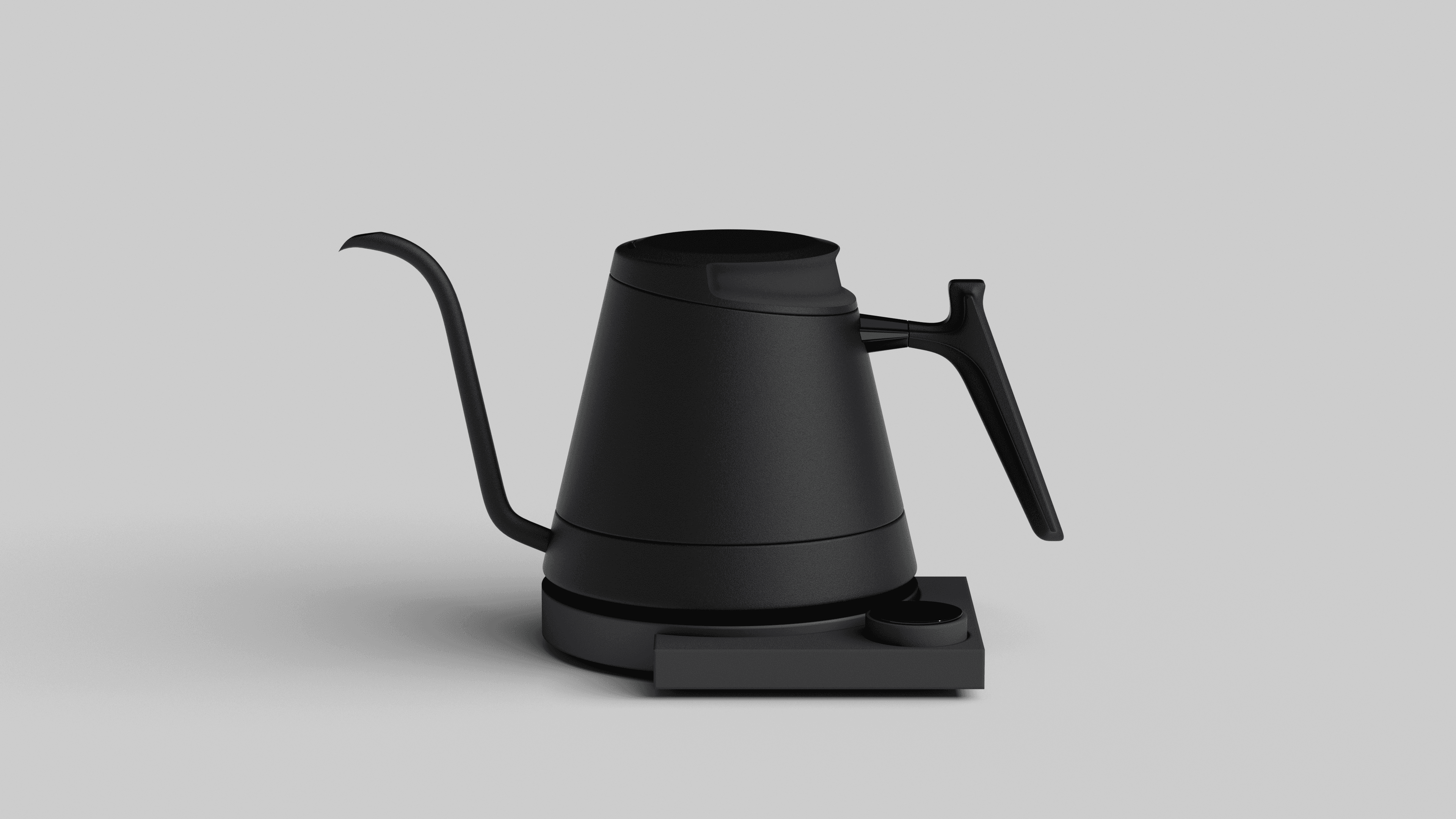

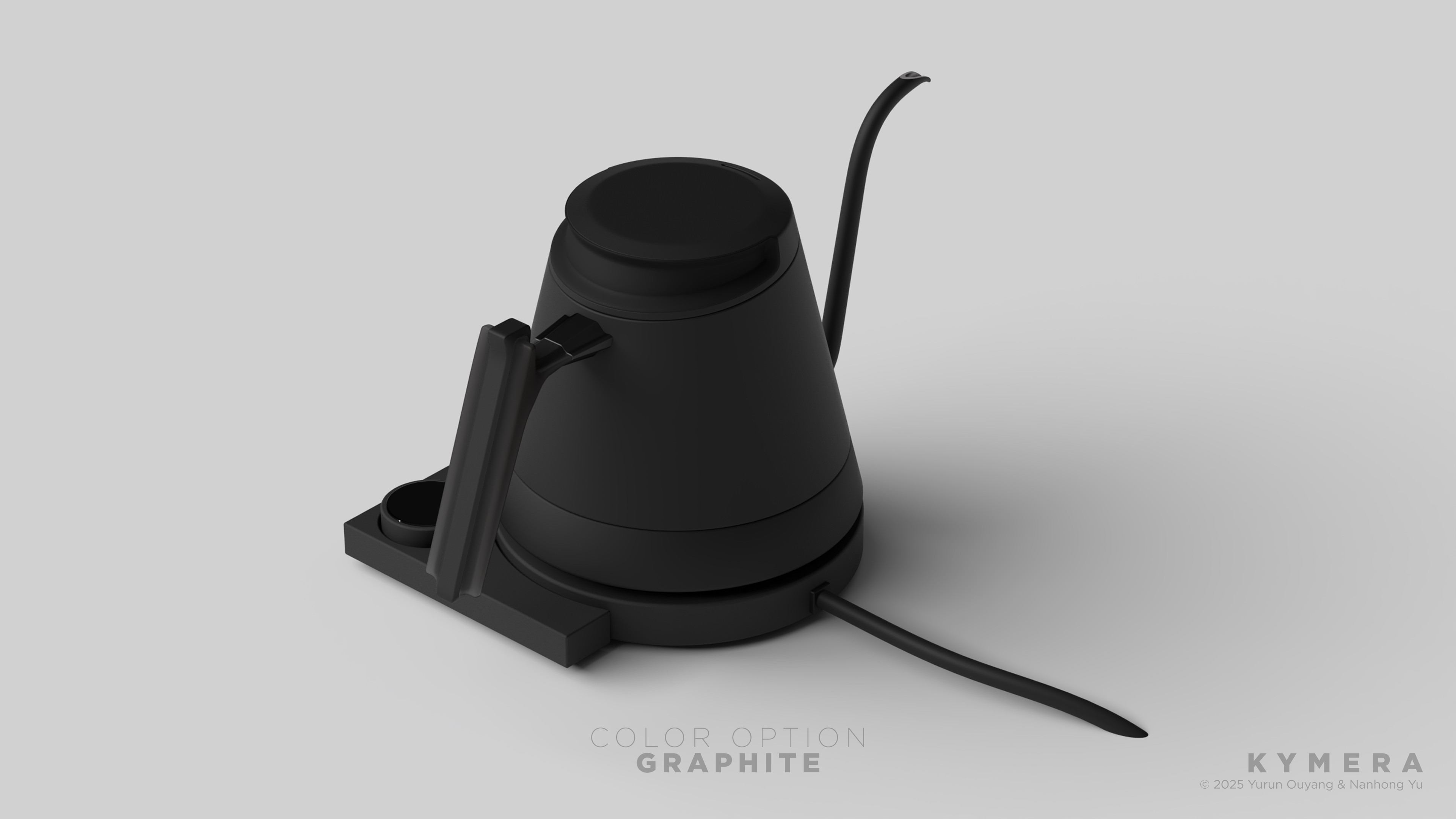

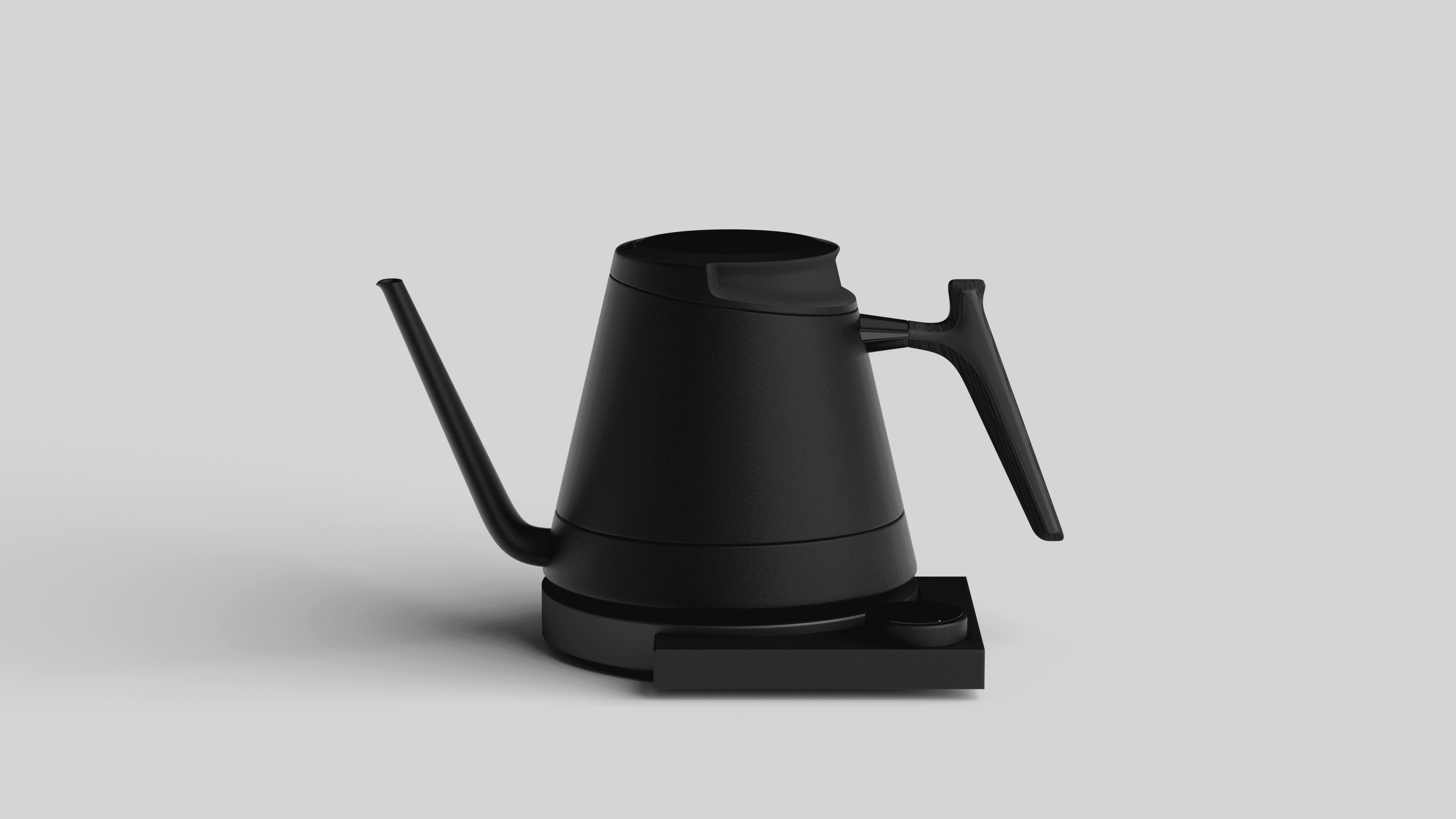

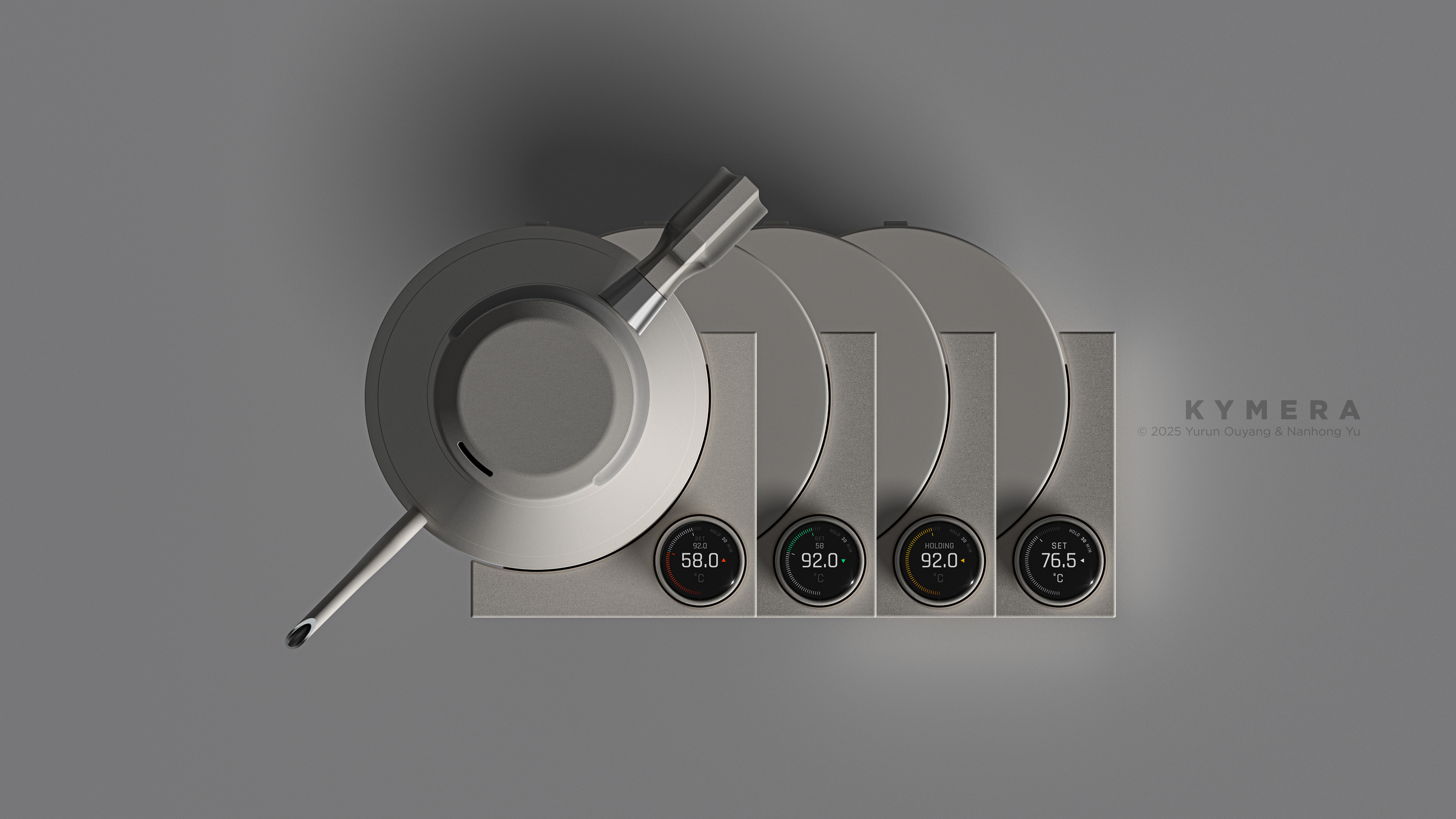

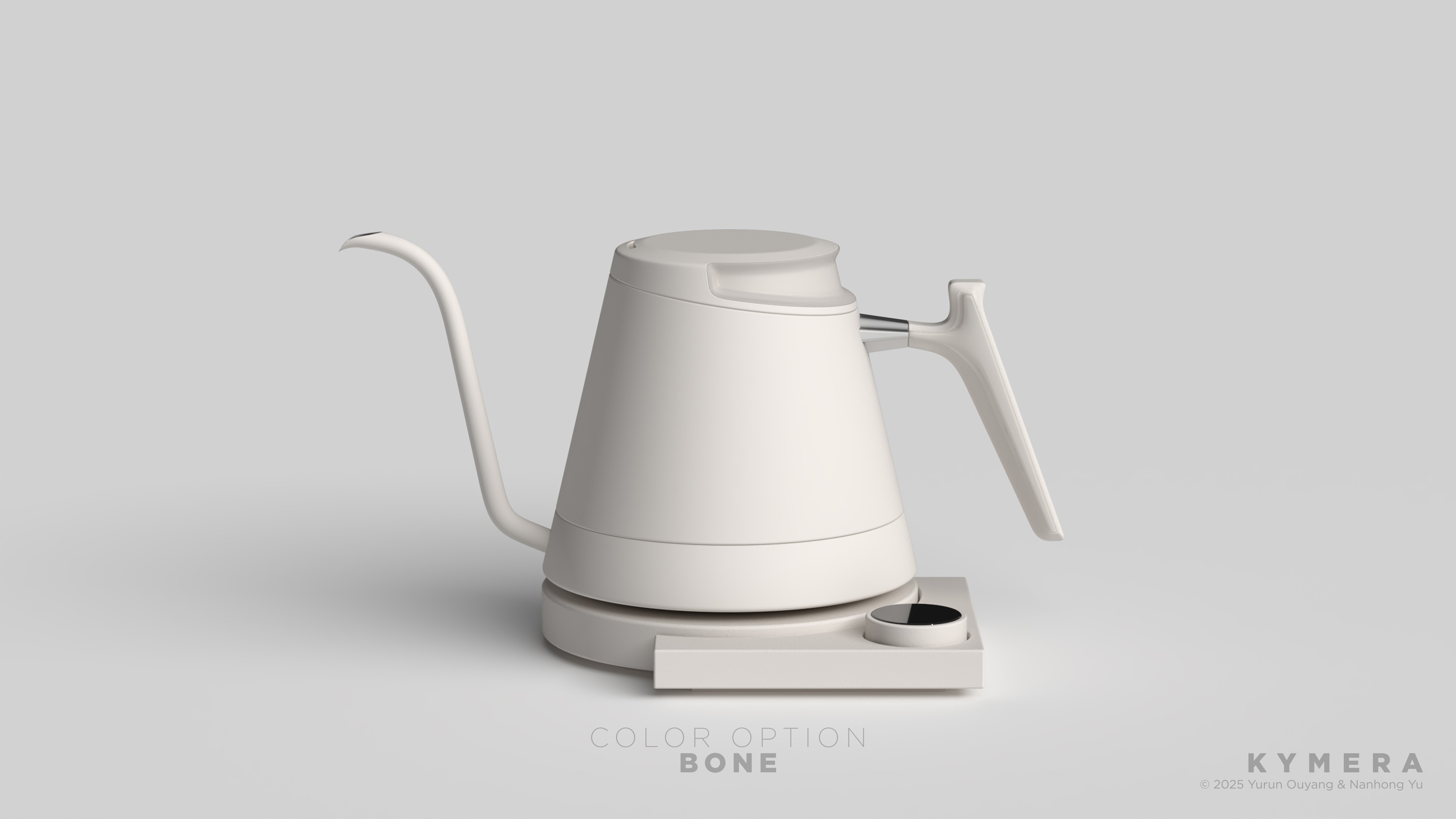

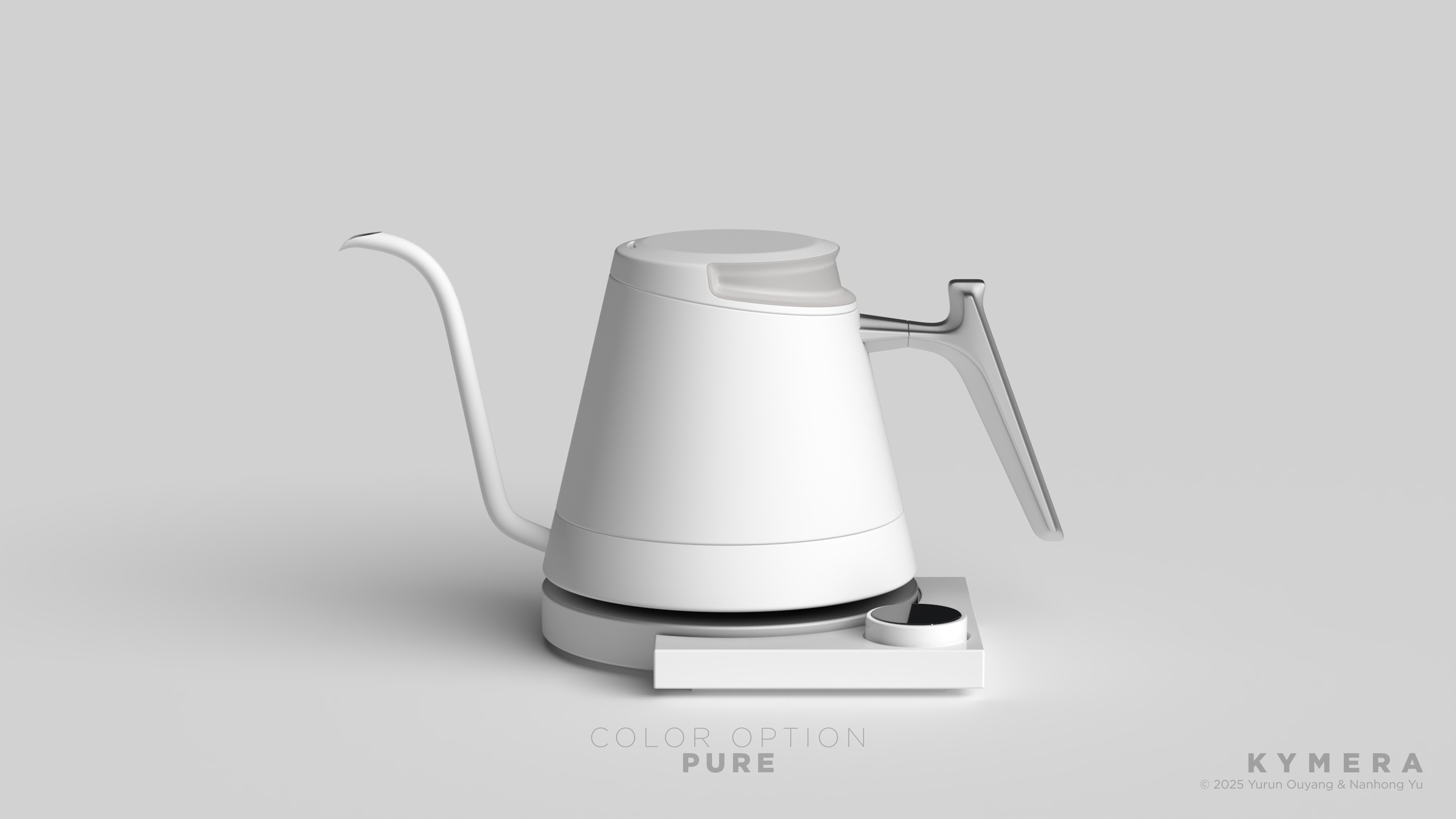

Color Options

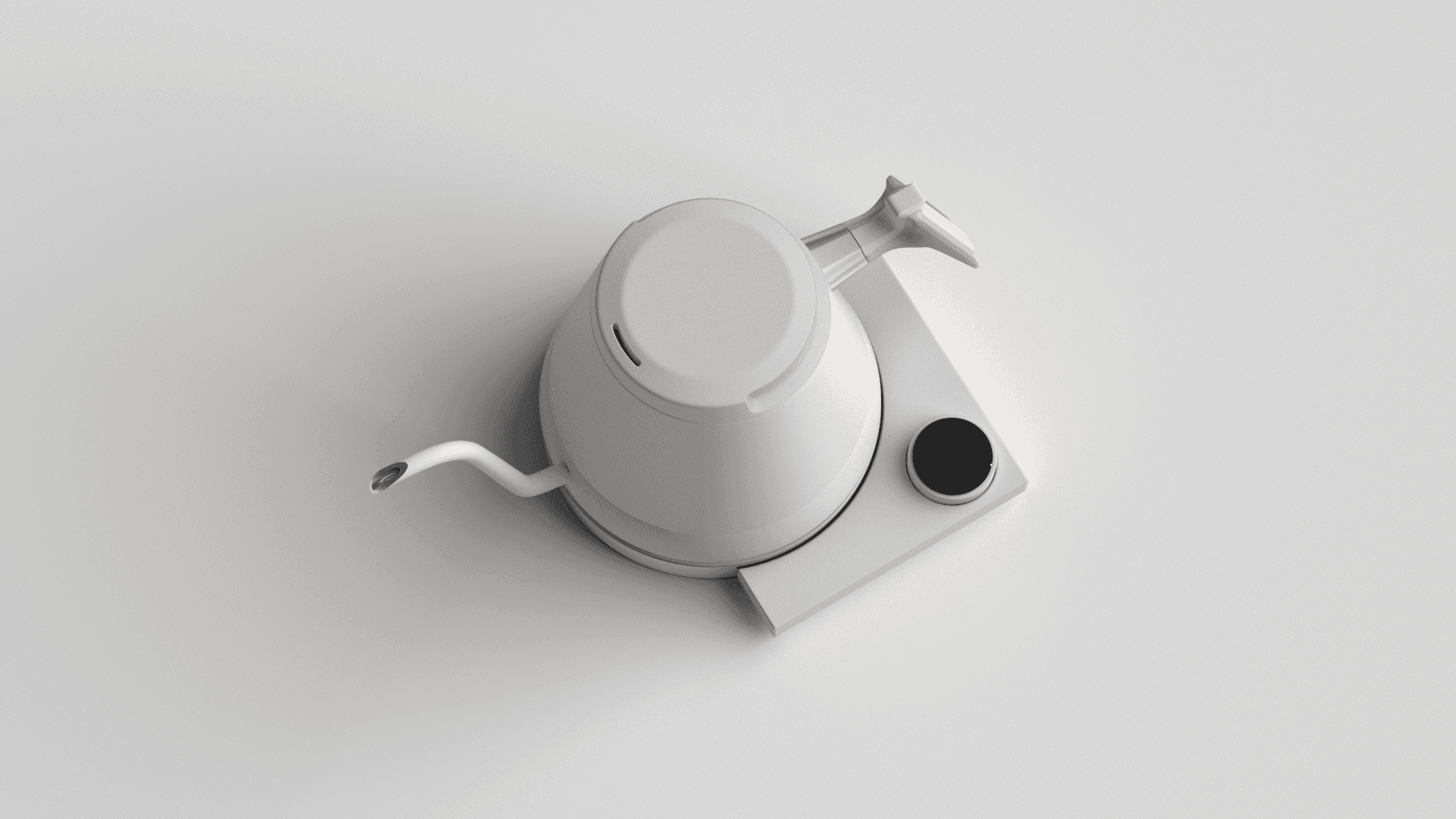

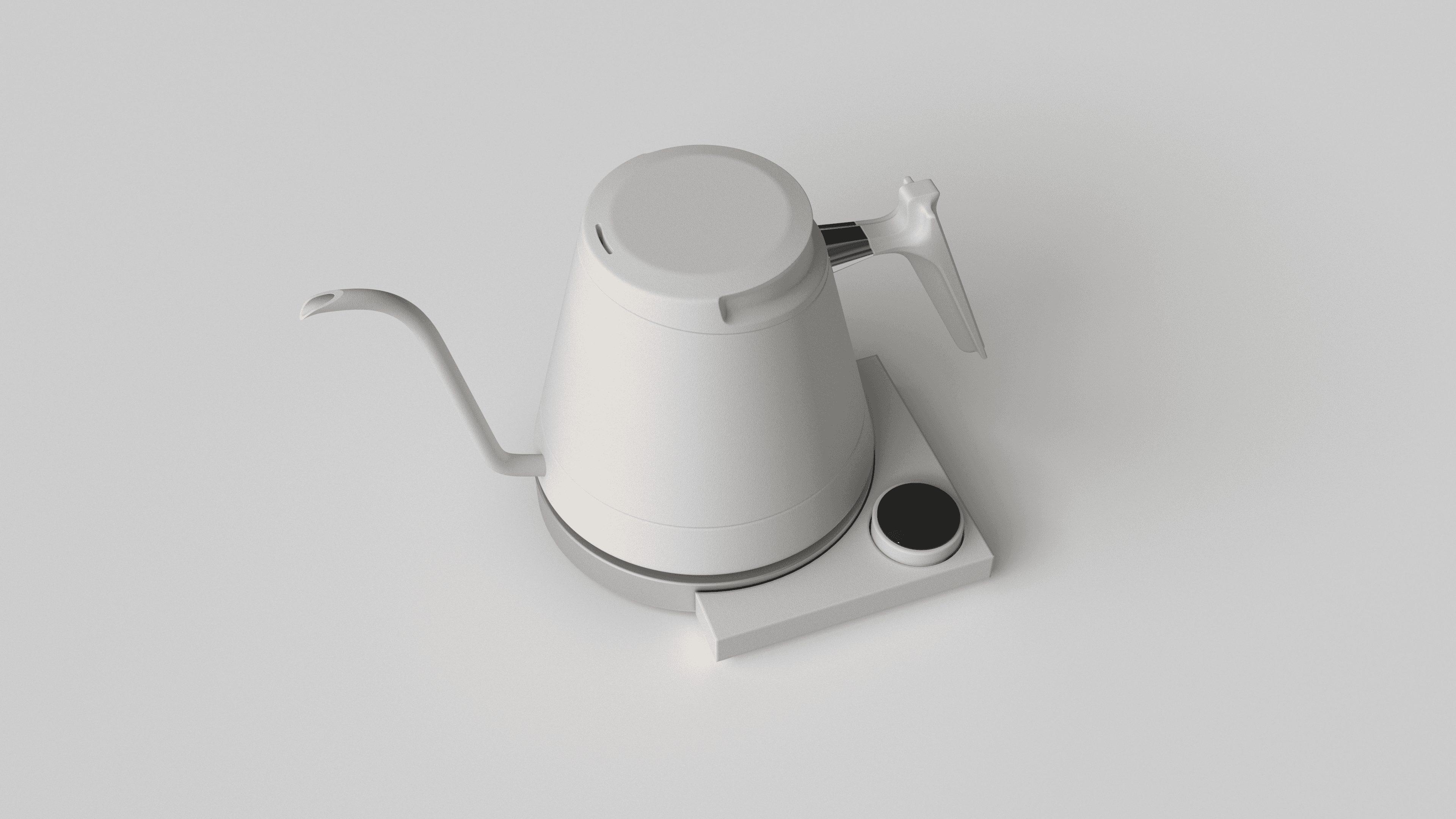

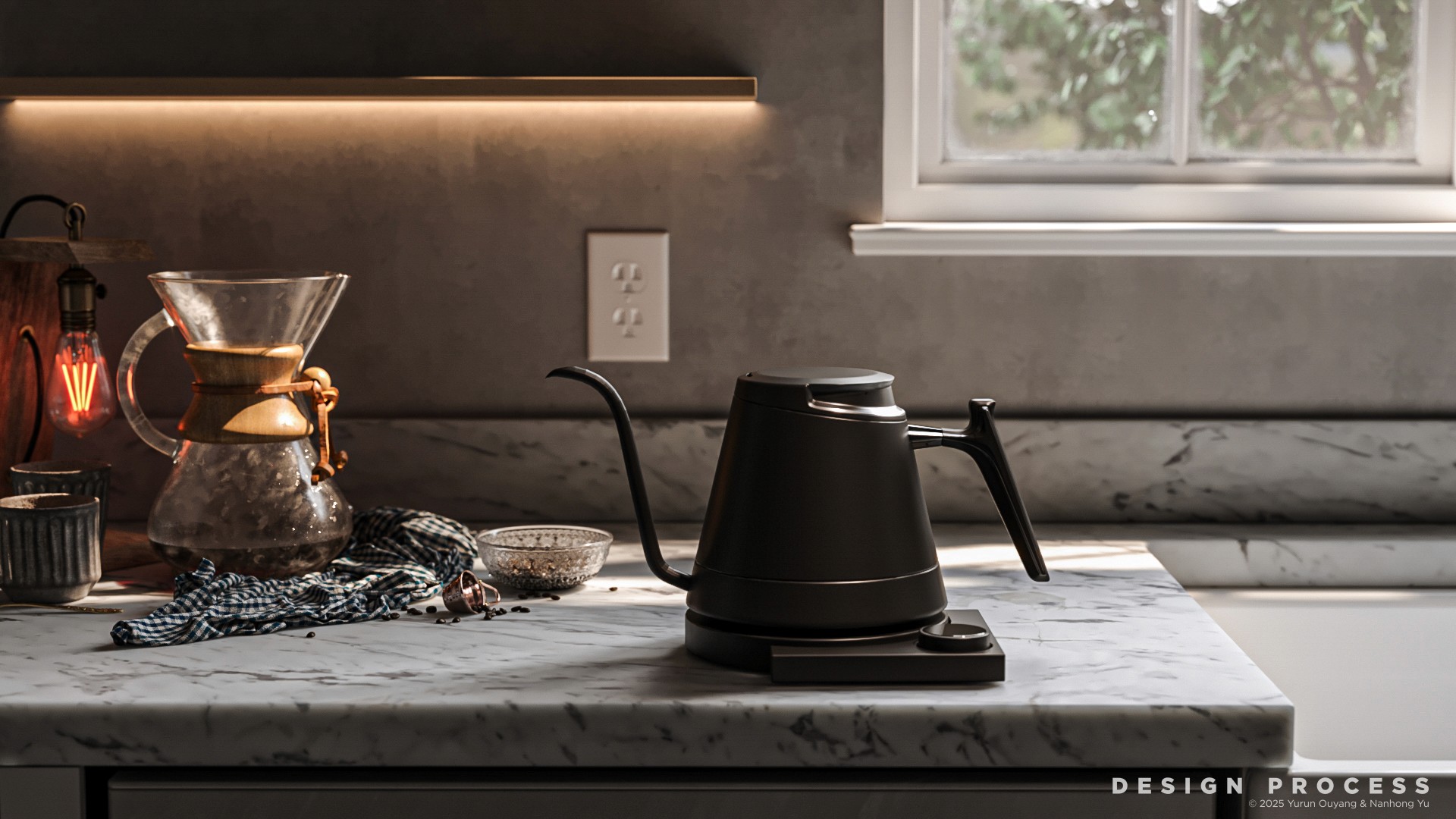

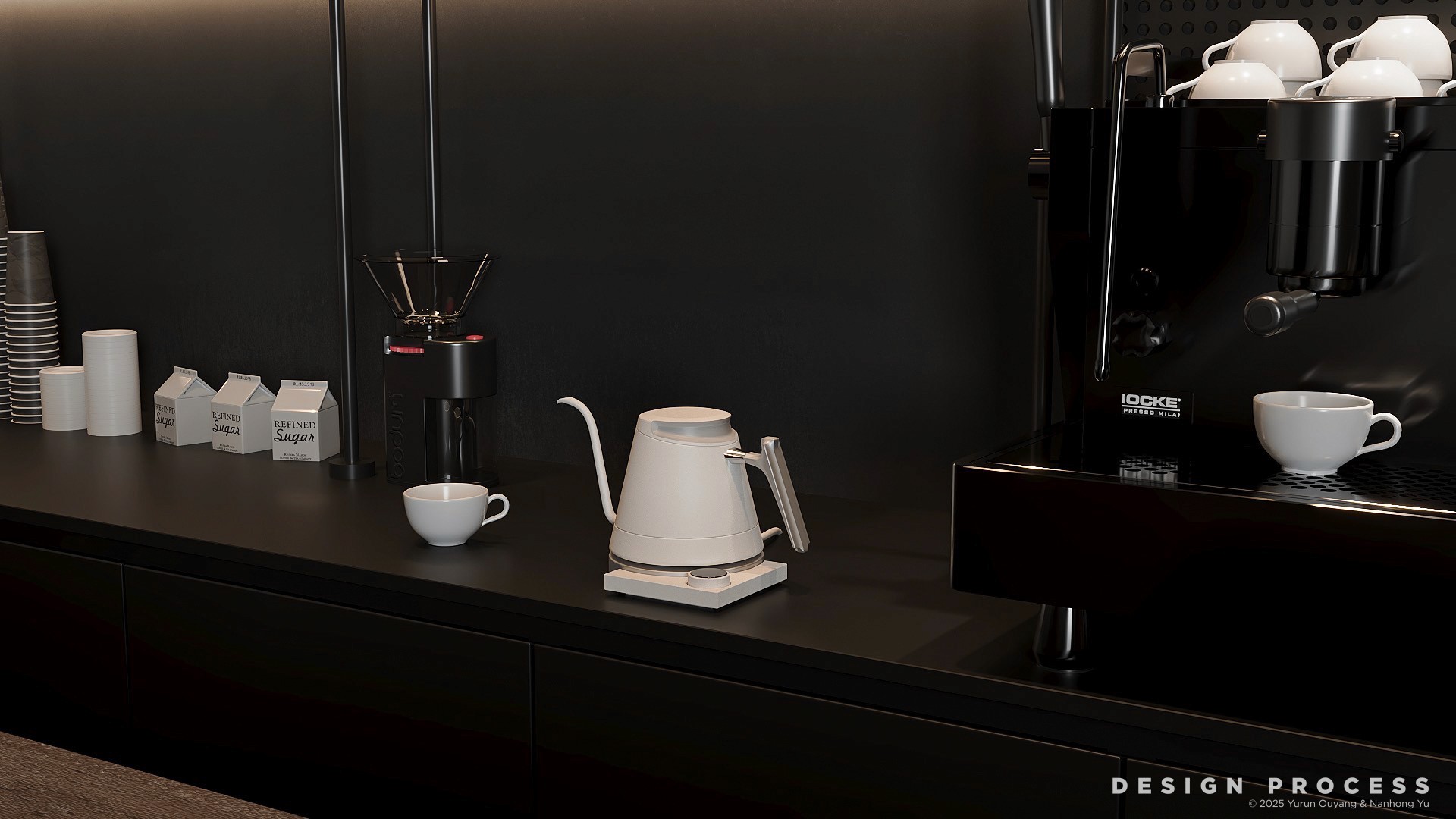

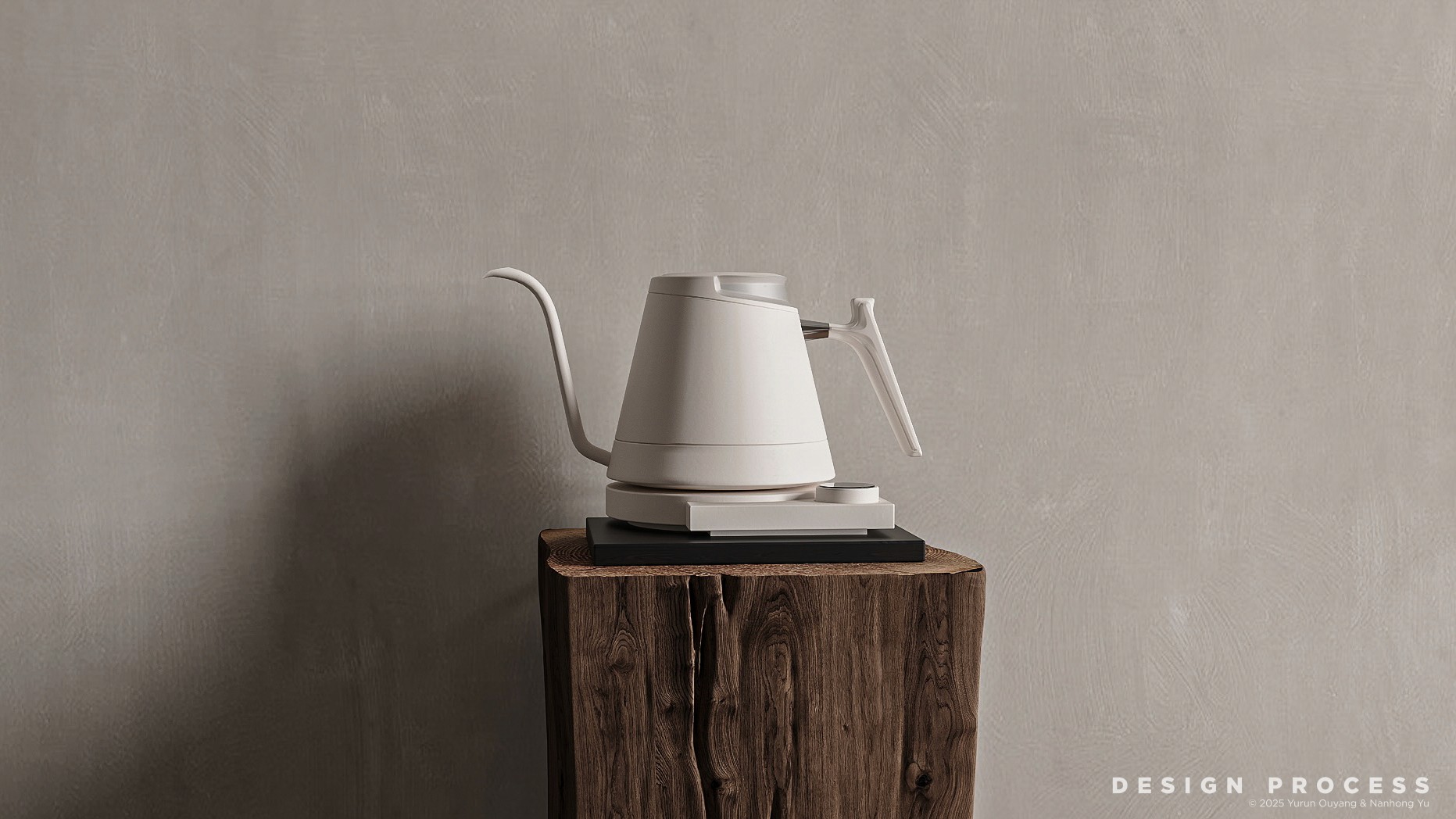

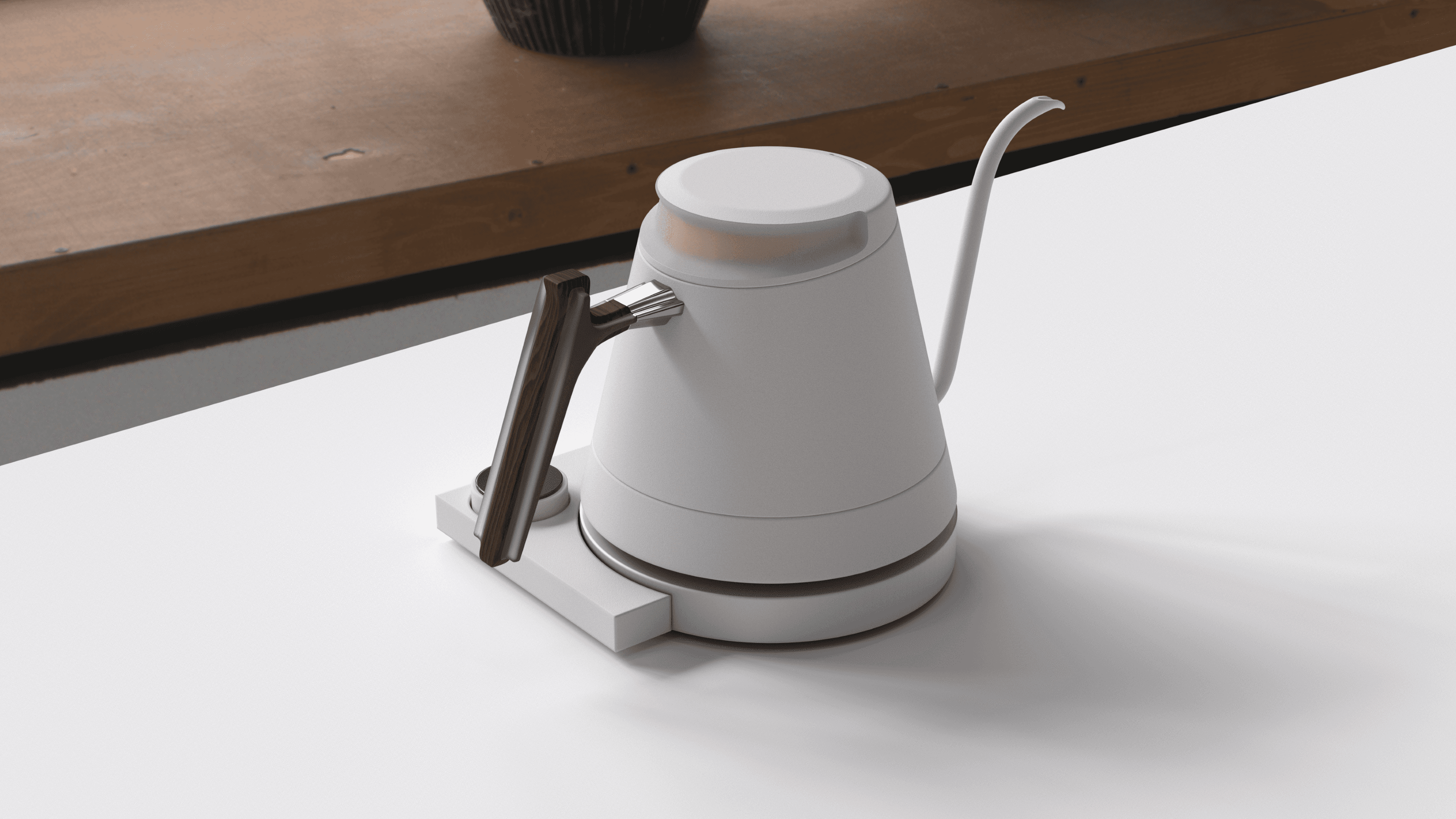

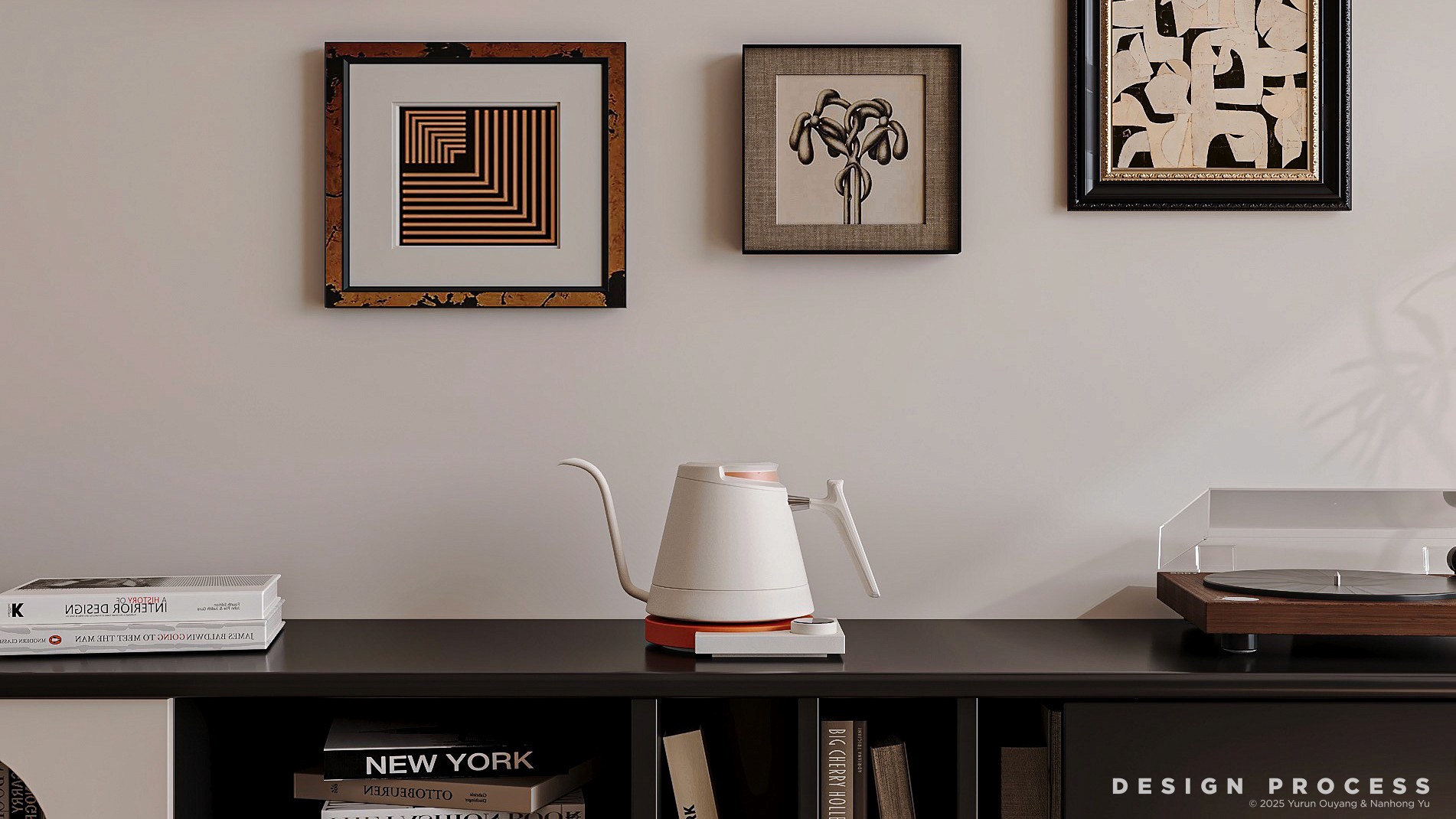

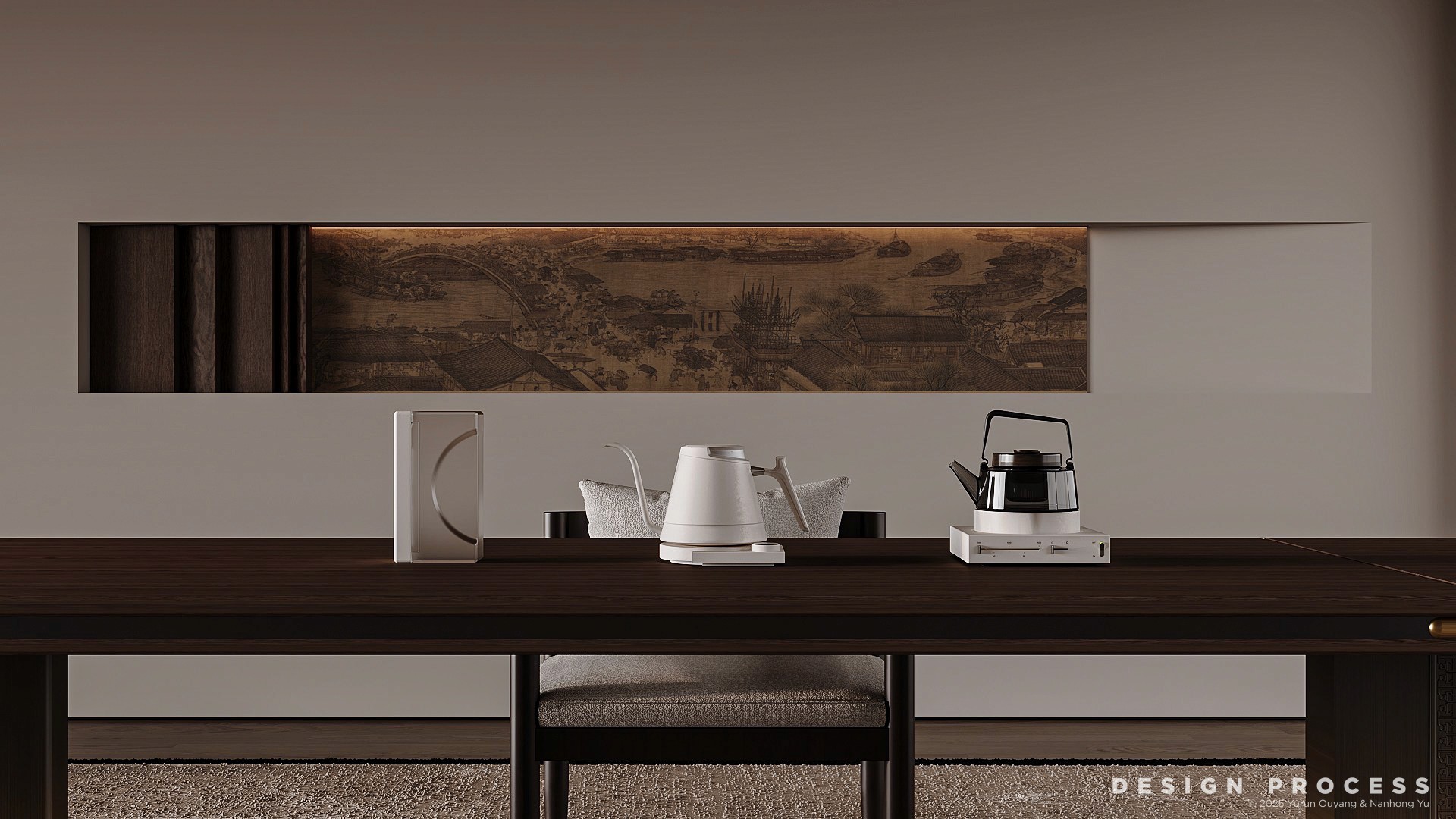

Scenario Renders
By Austin zhang - 2024

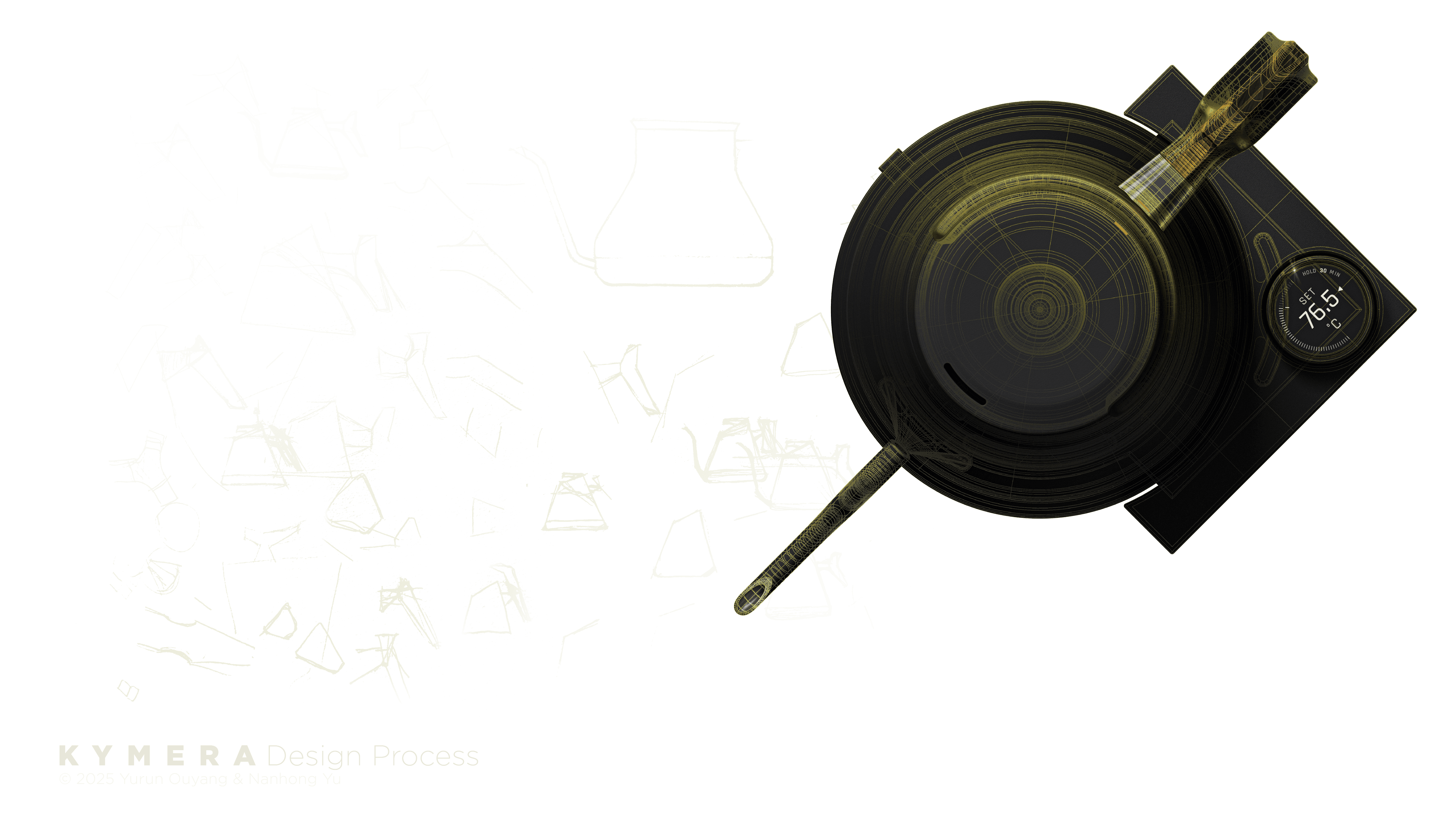

Design Process

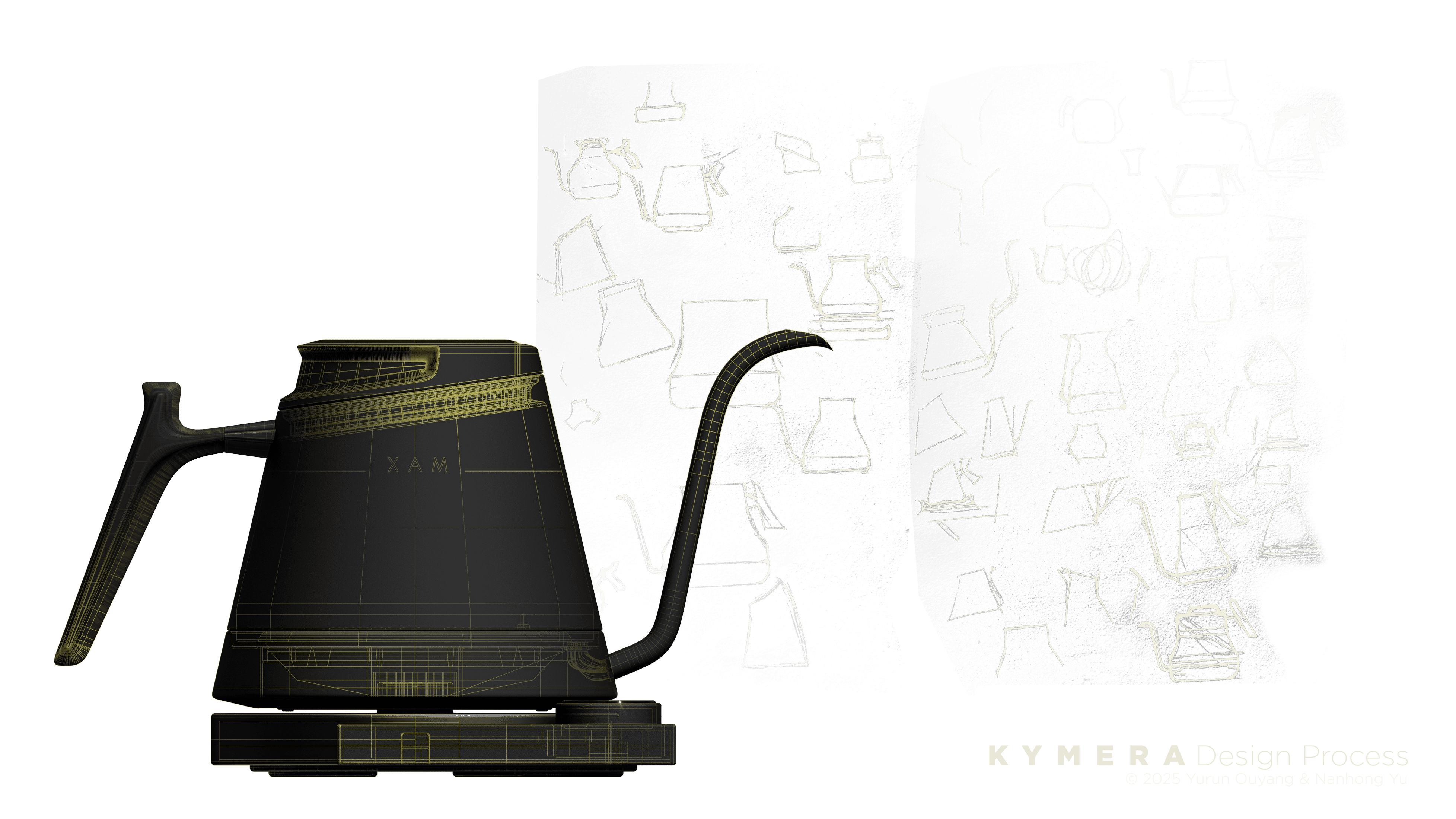

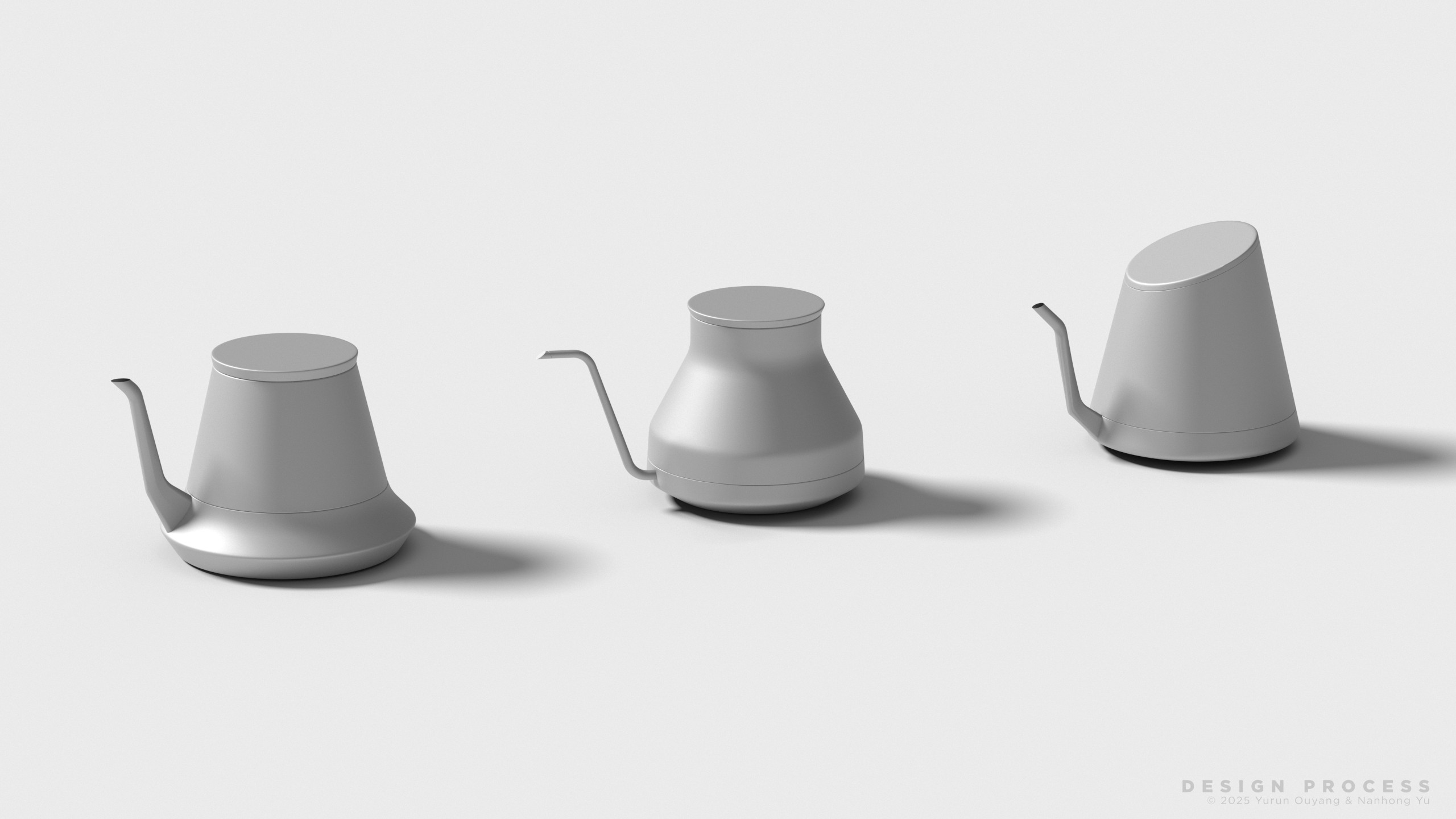

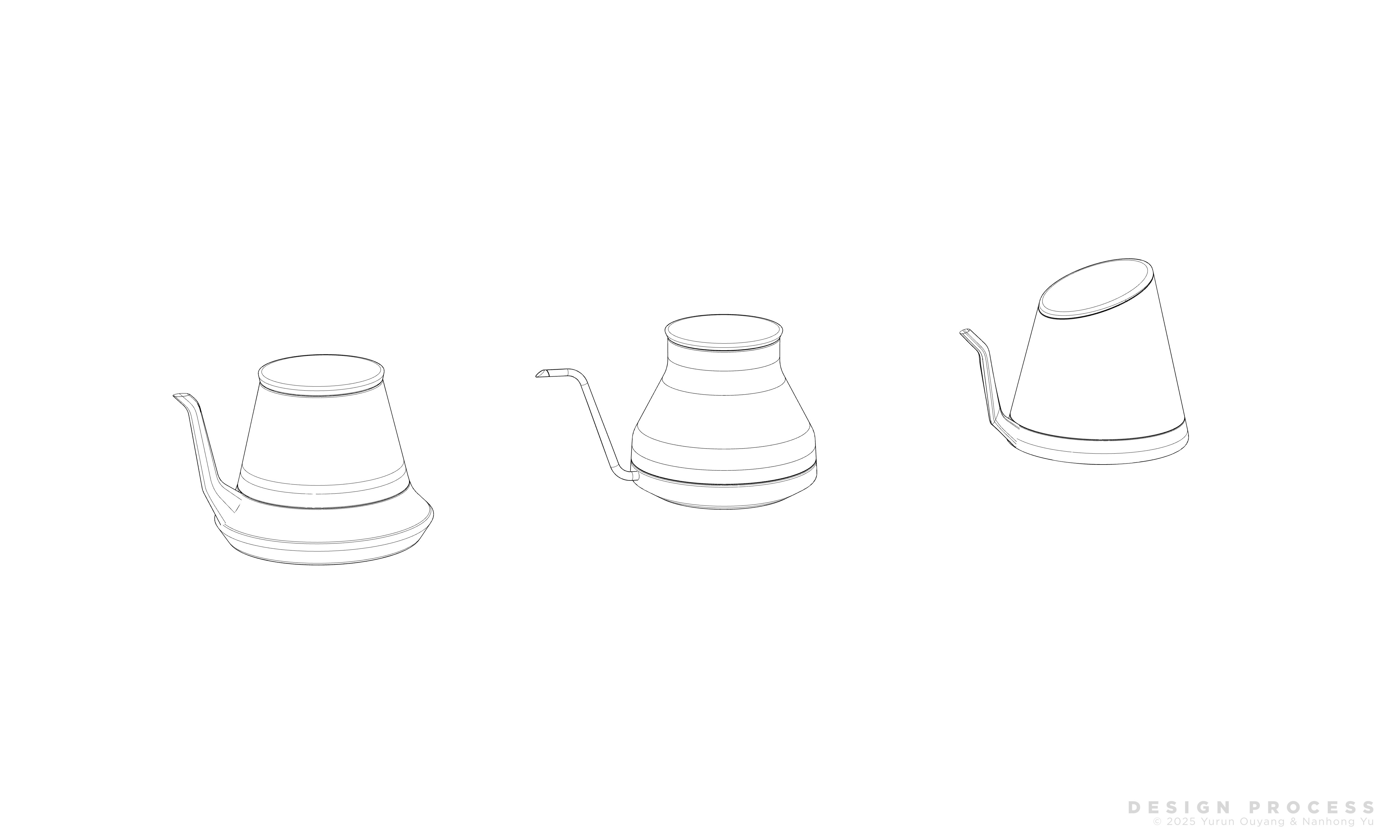

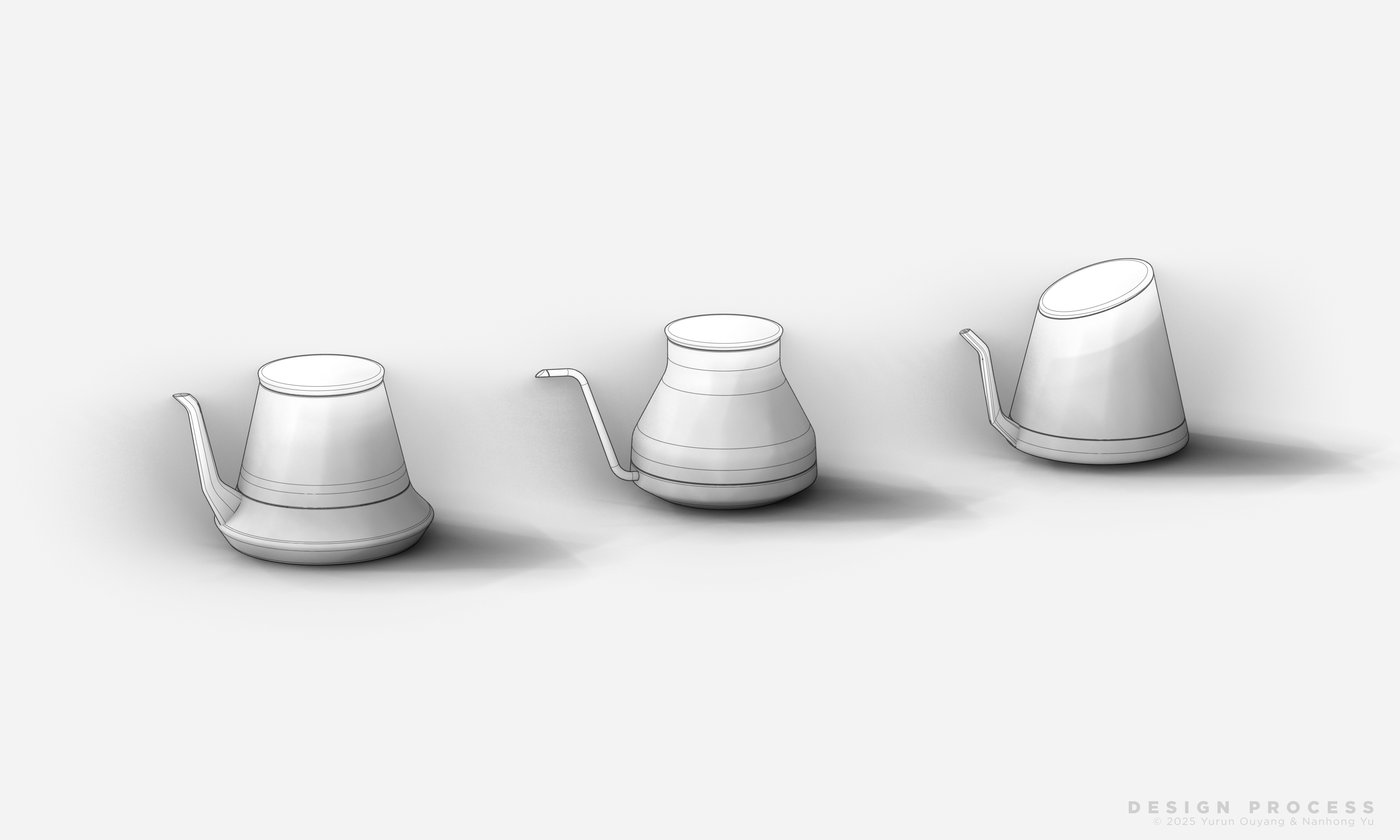

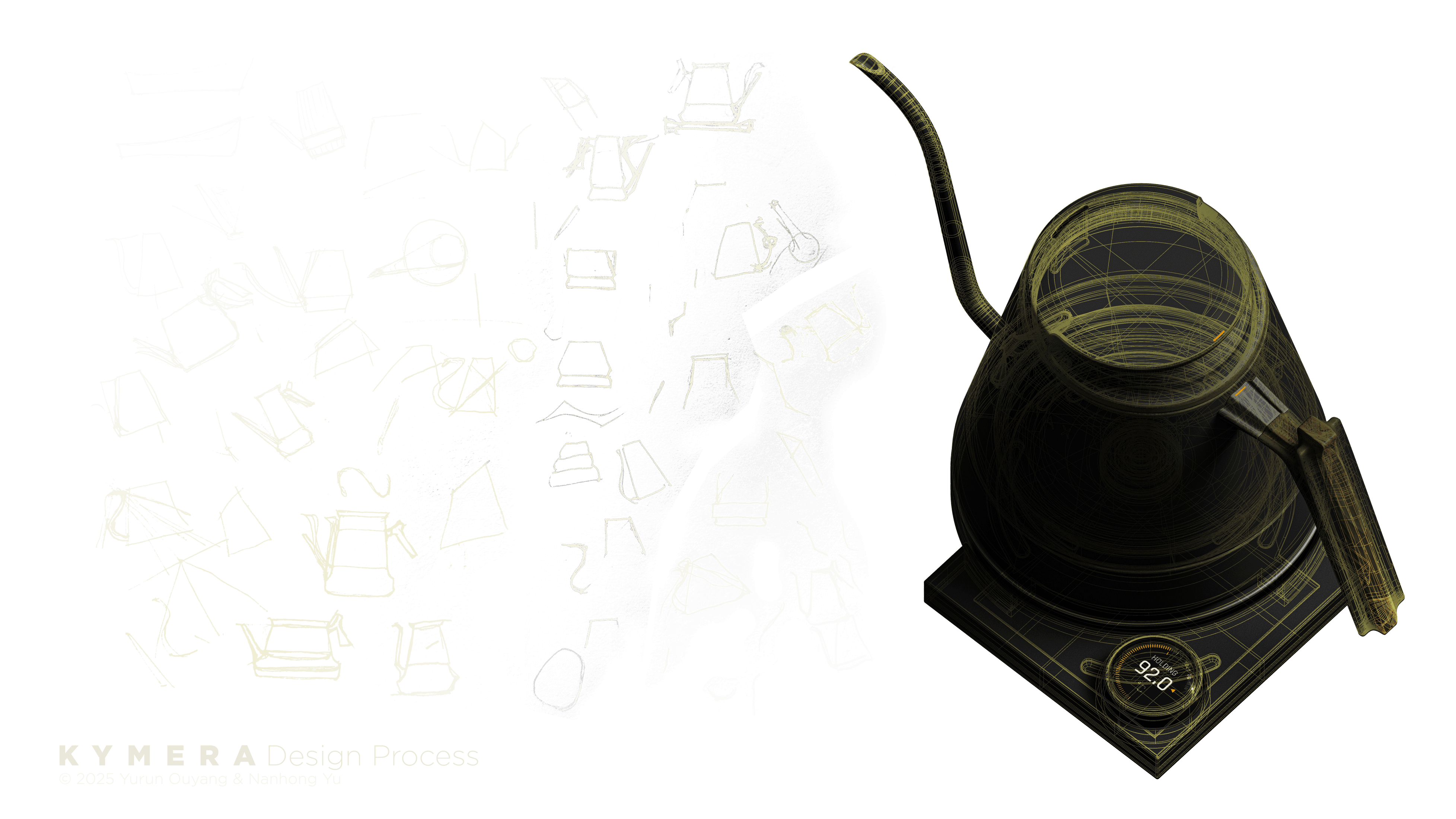

Digital Form Ideation

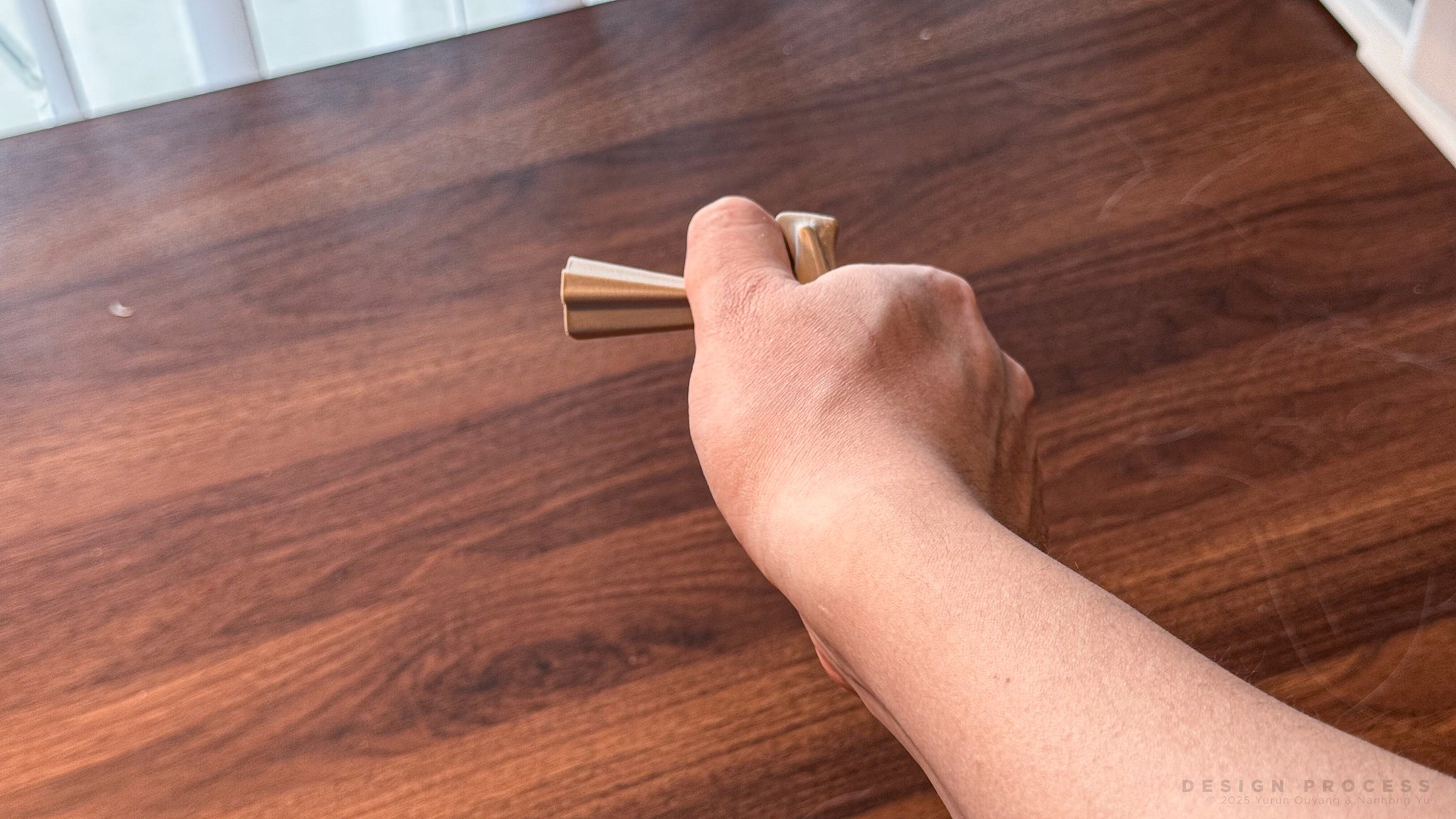

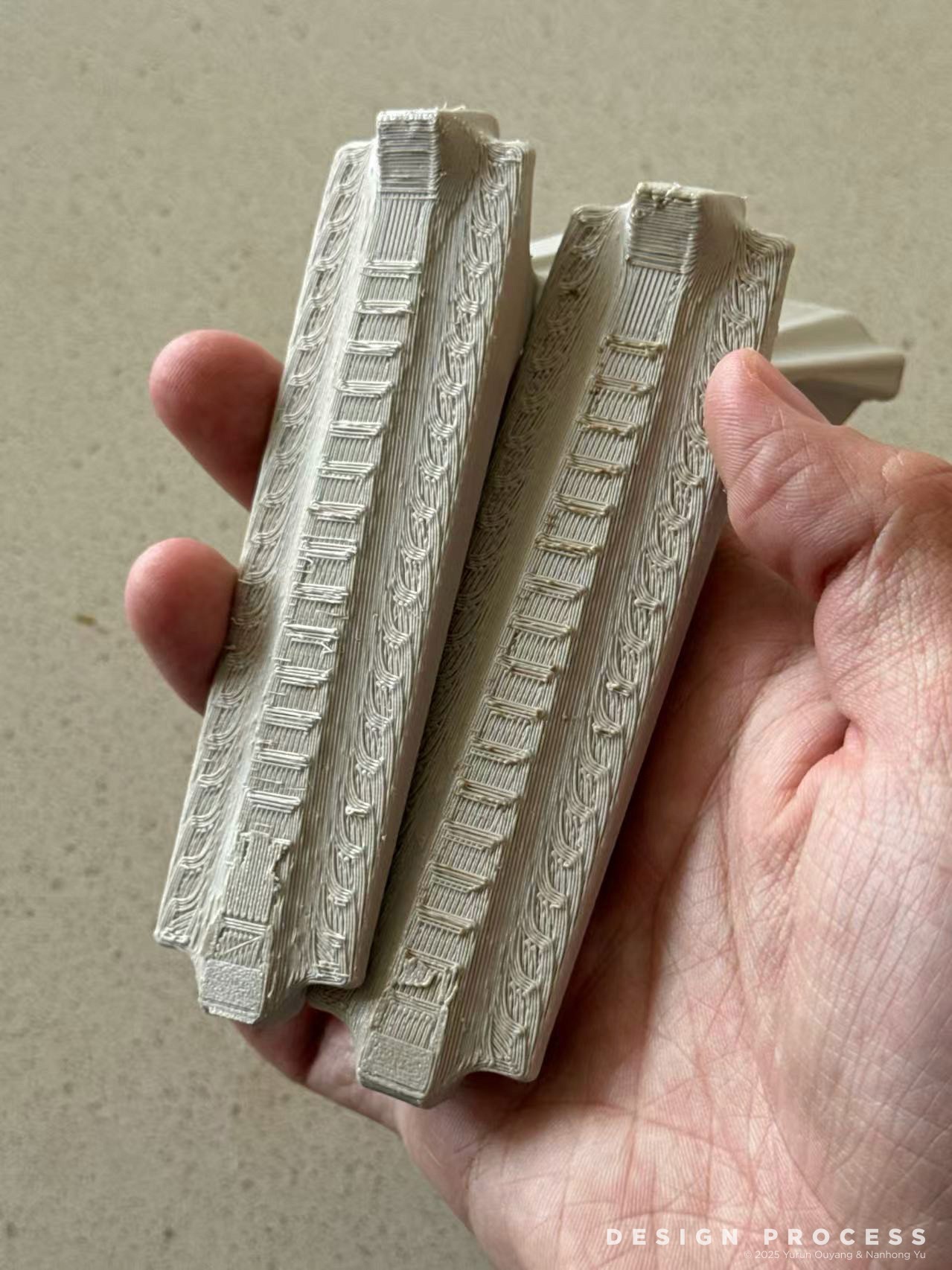

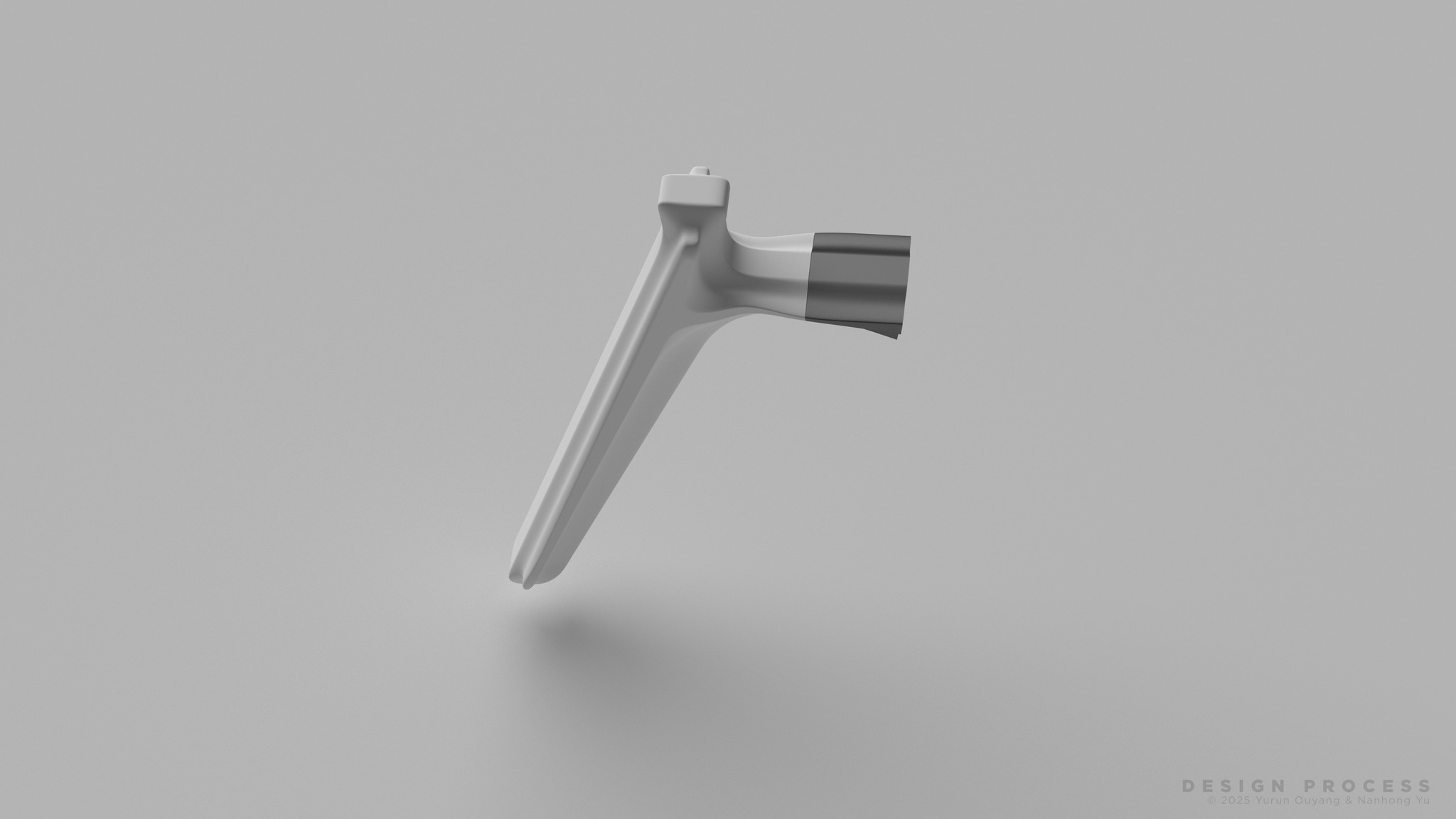

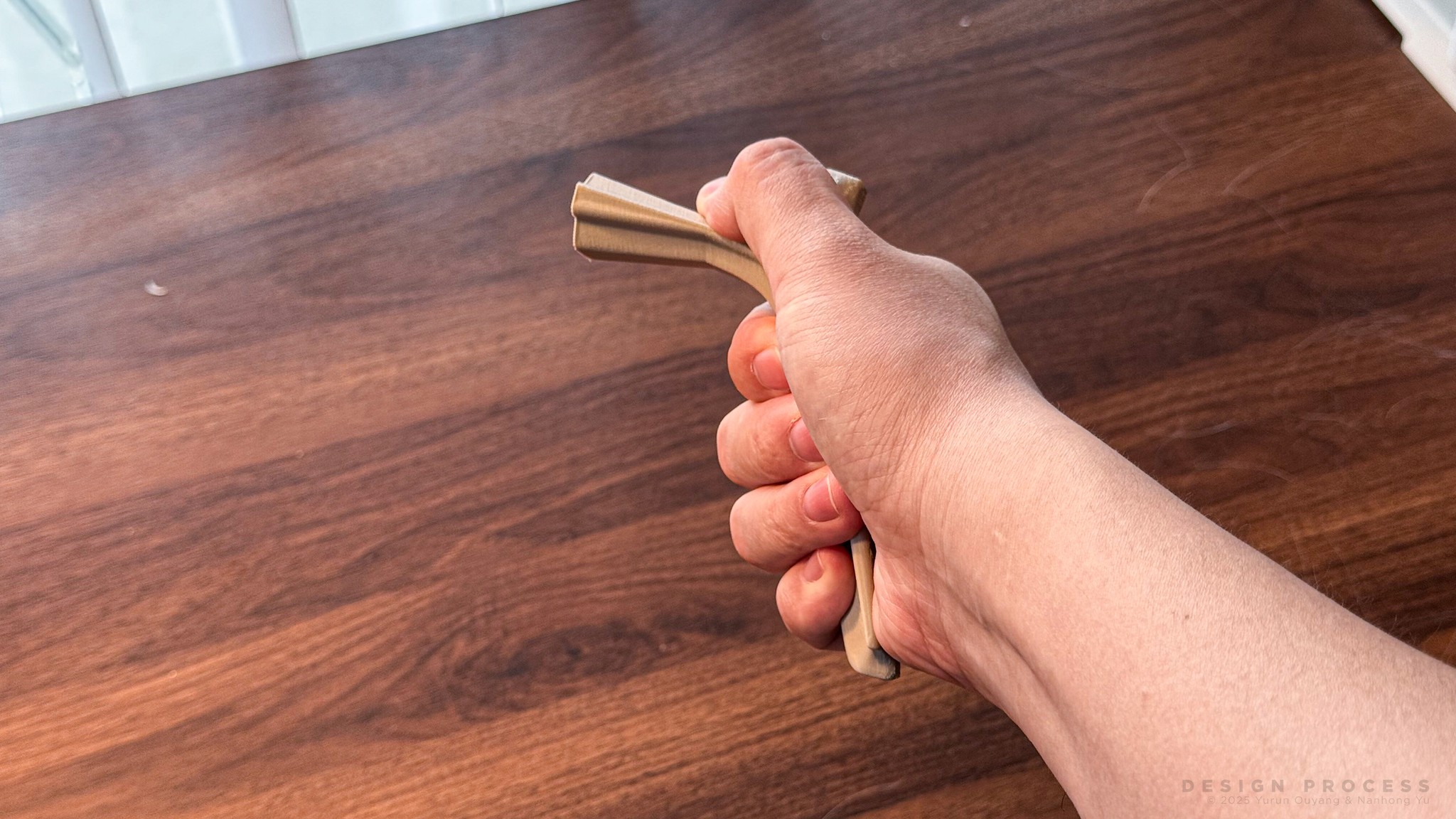

Handle Design Prototypes & Iterations

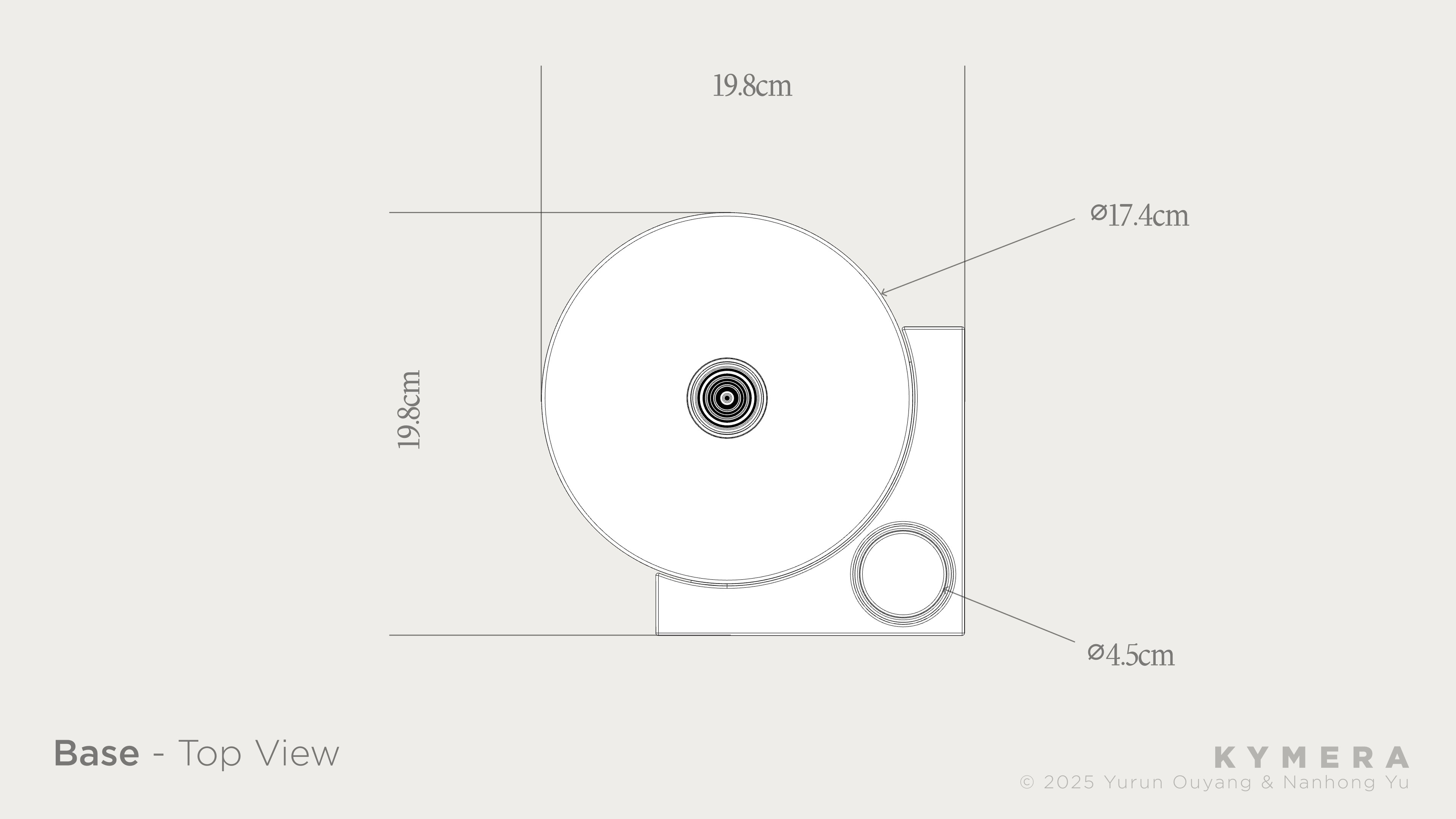

Base Shape Exploration
Finding the perfect proportions to achieve visual and functional harmony—balancing knob size, control board thickness, and edge dimensions for optimal usability and aesthetic coherence.

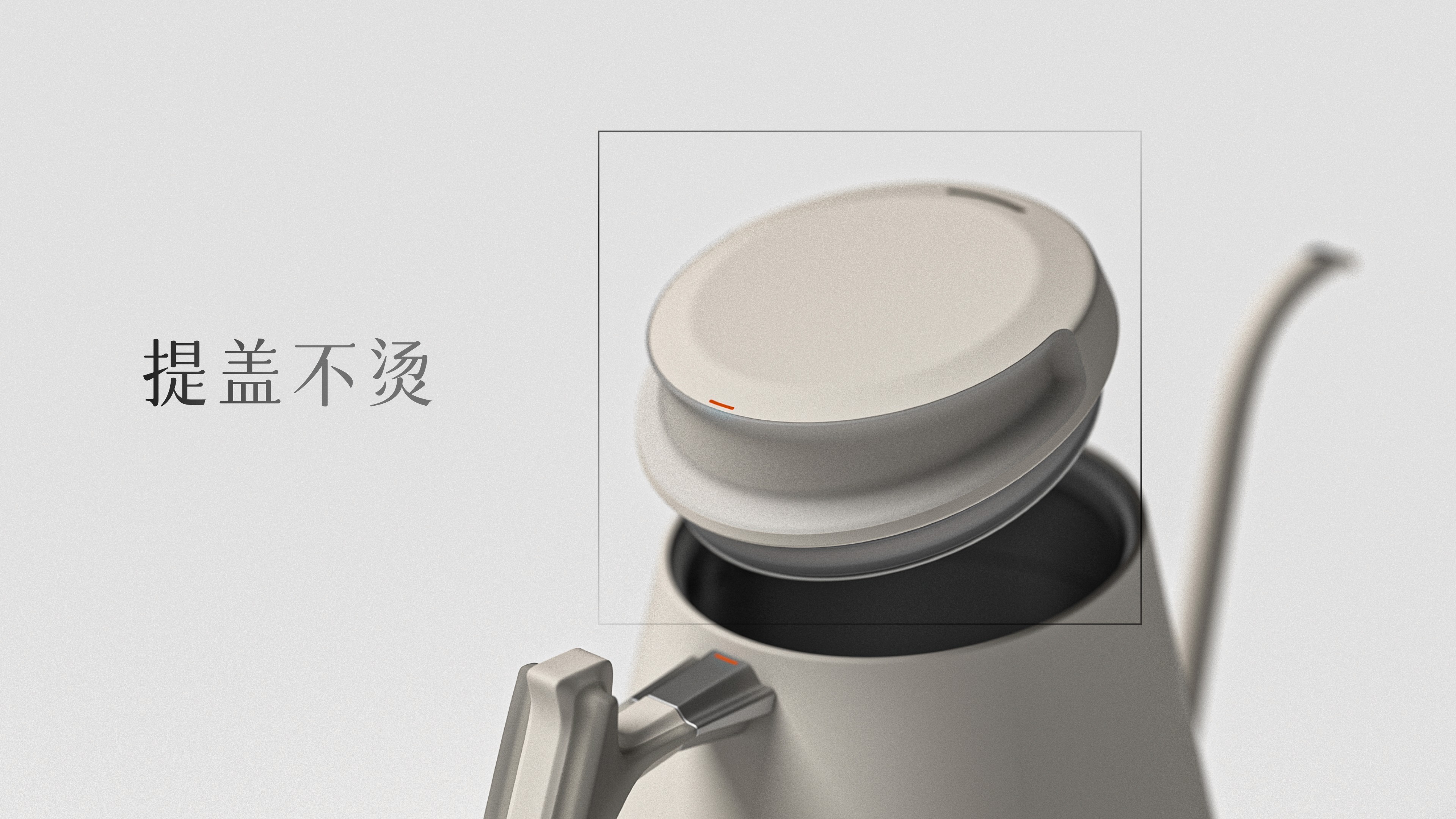

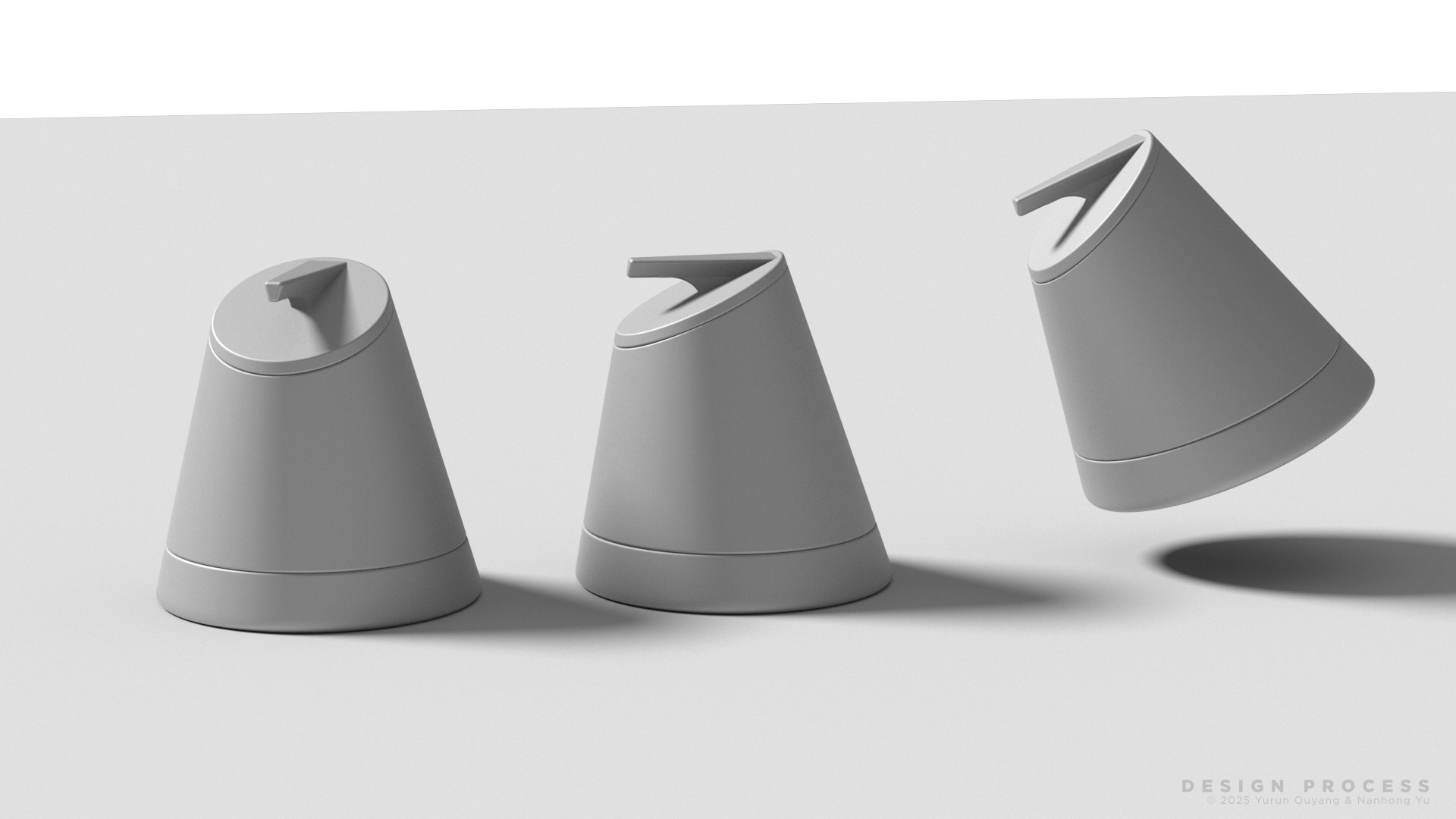

Lip Vent Design Exploration

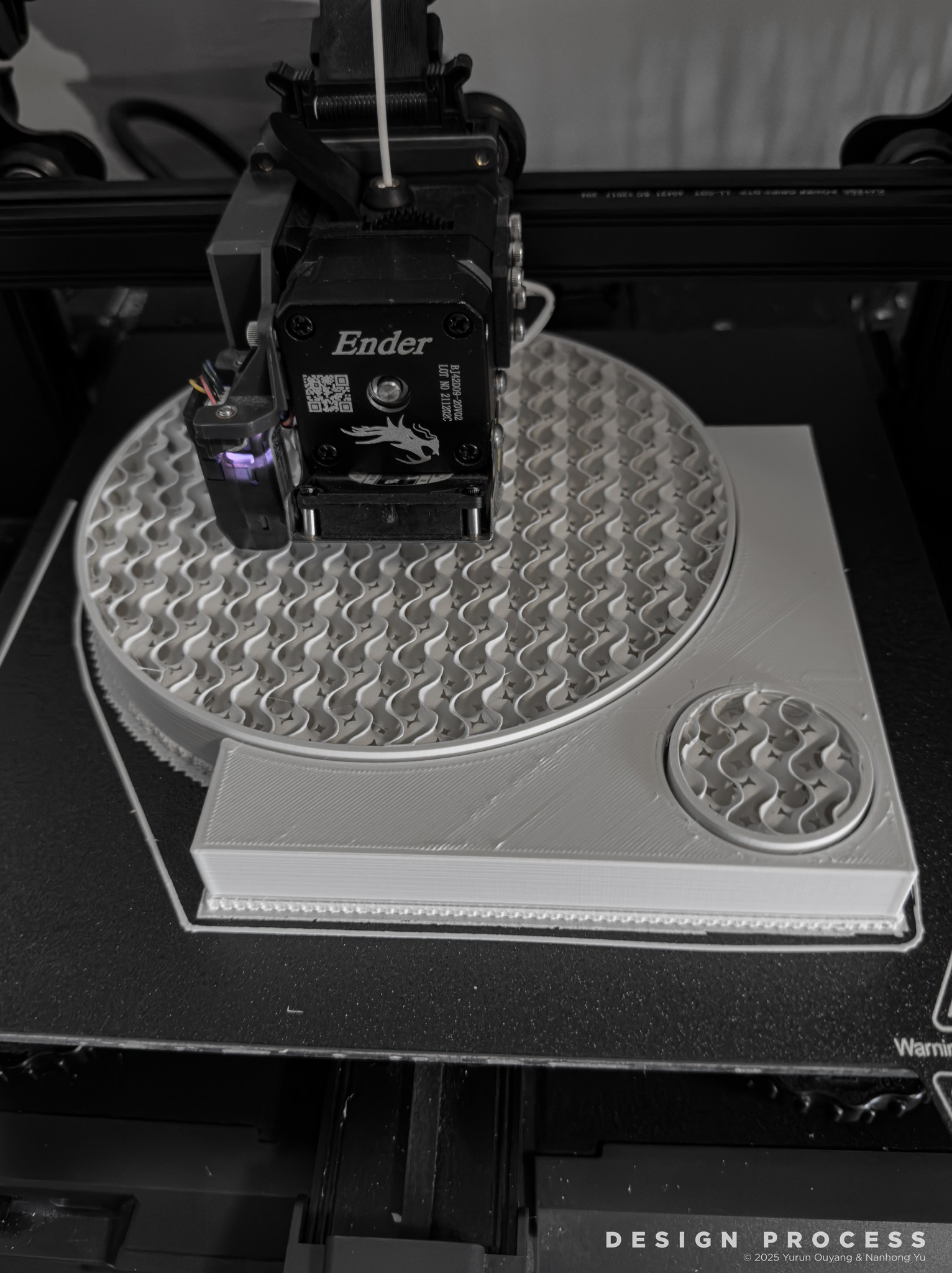

Full Scale 3D Printed Prototype

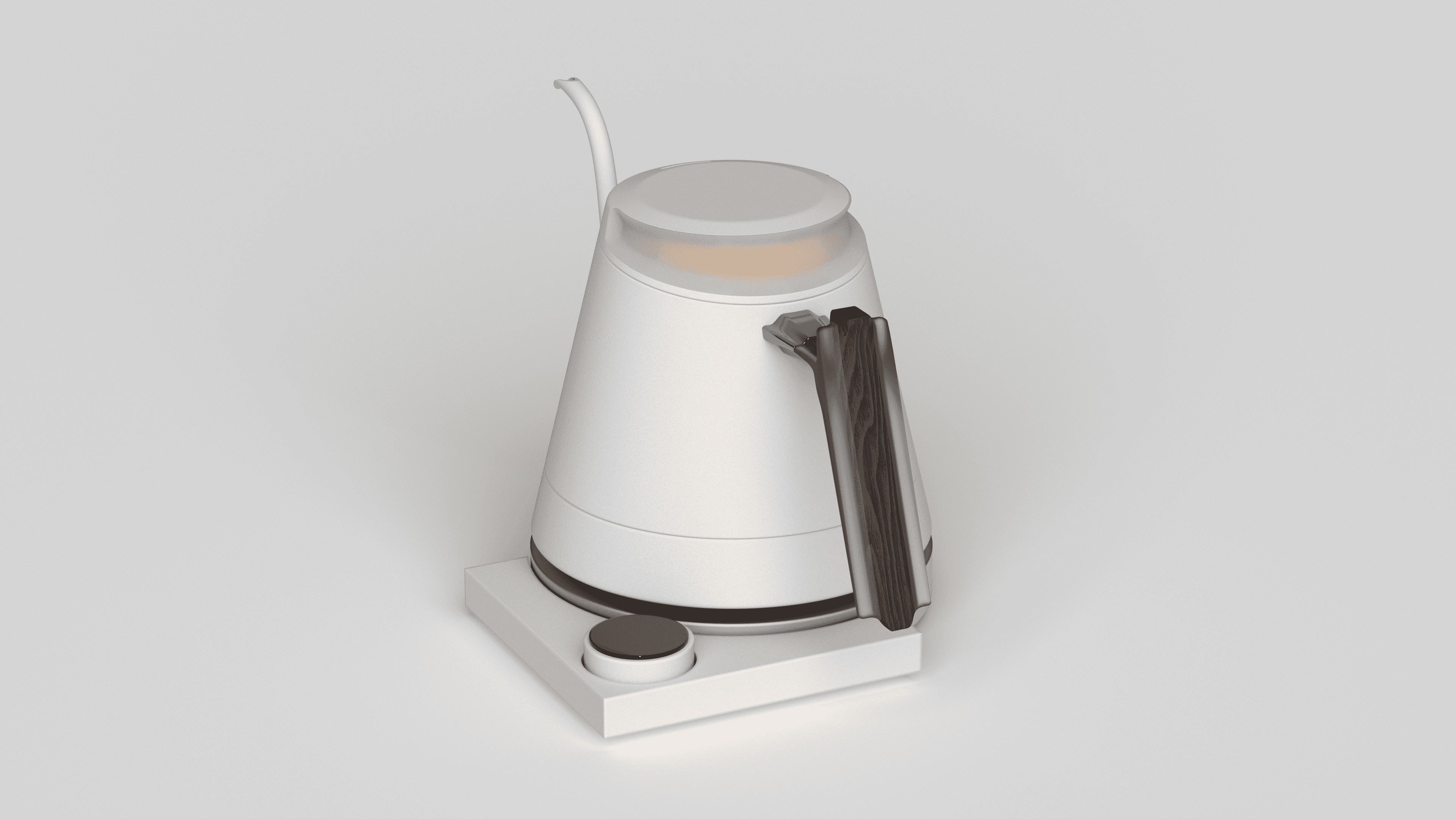

CMF Exploration
Package Concept
Two packaging concepts were explored to balance presentation, protection, and storytelling.

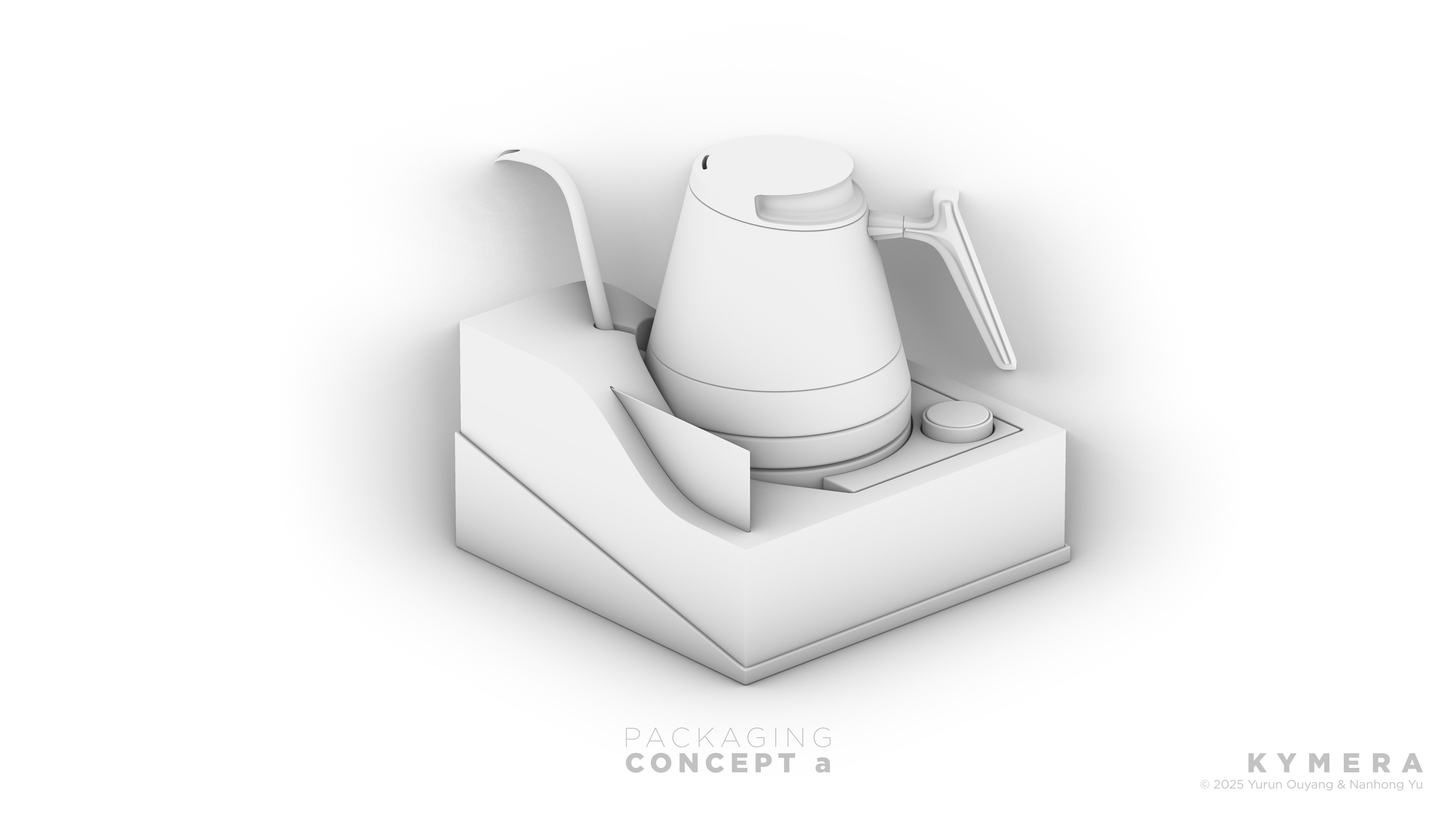

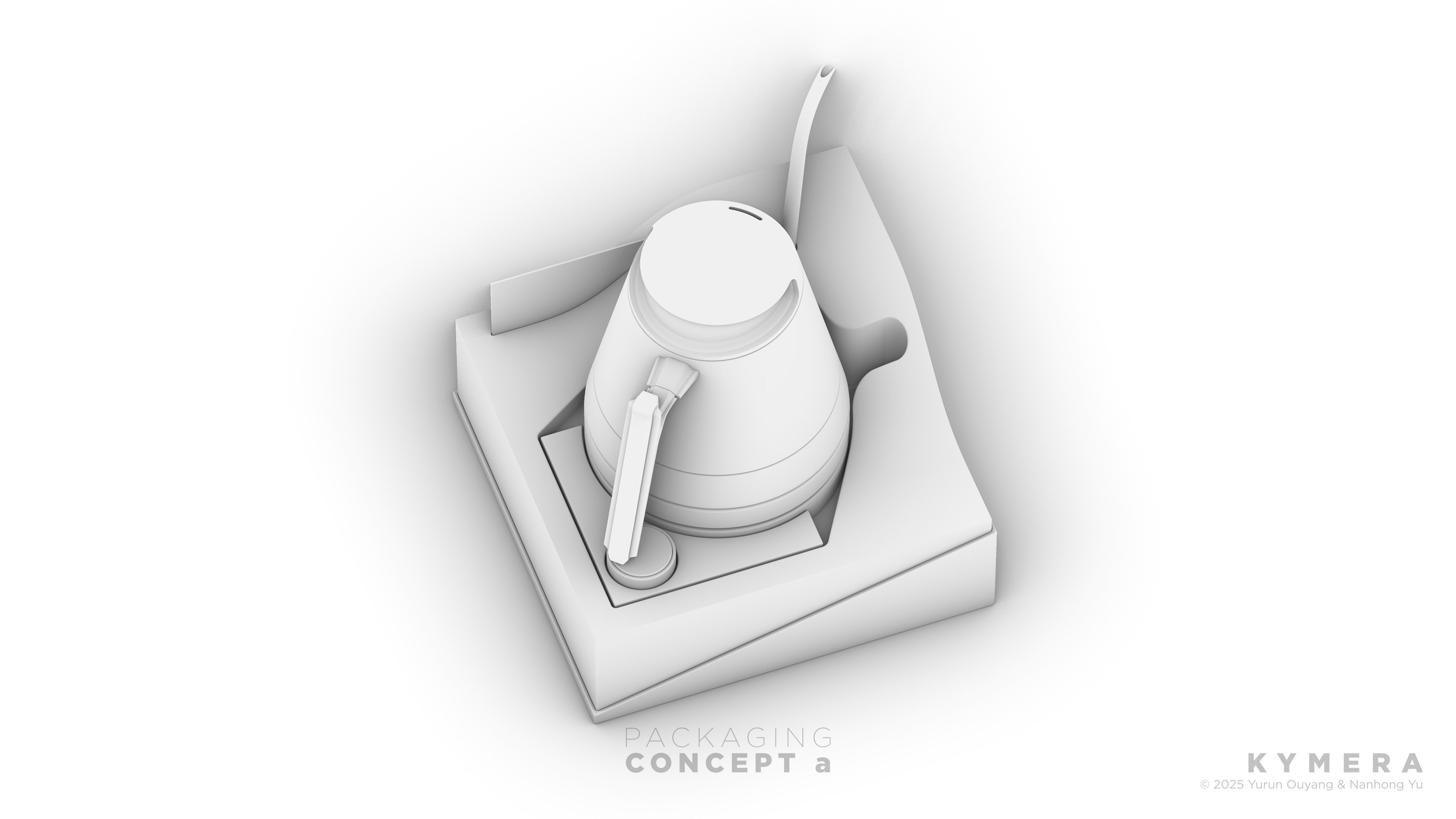

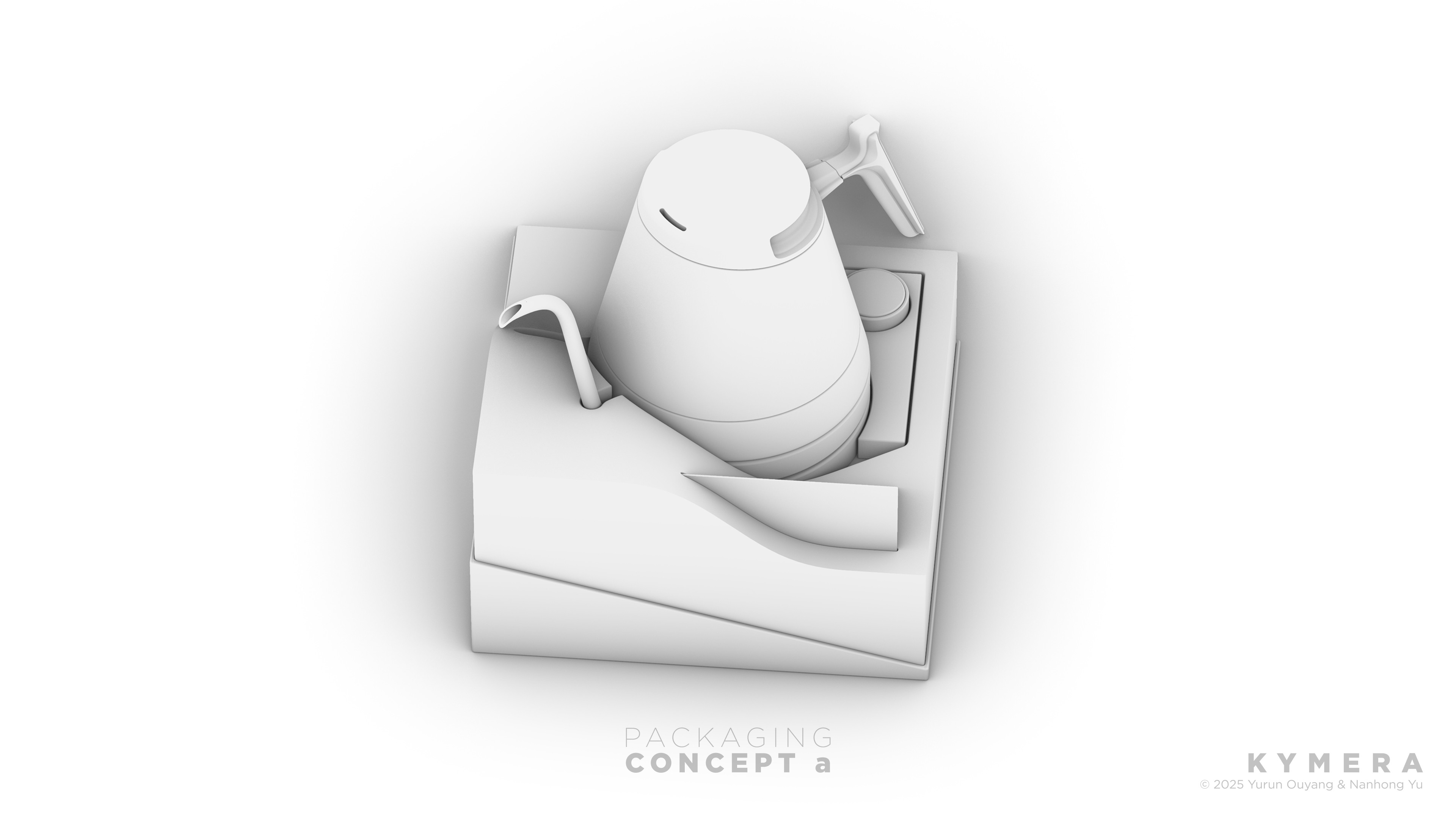

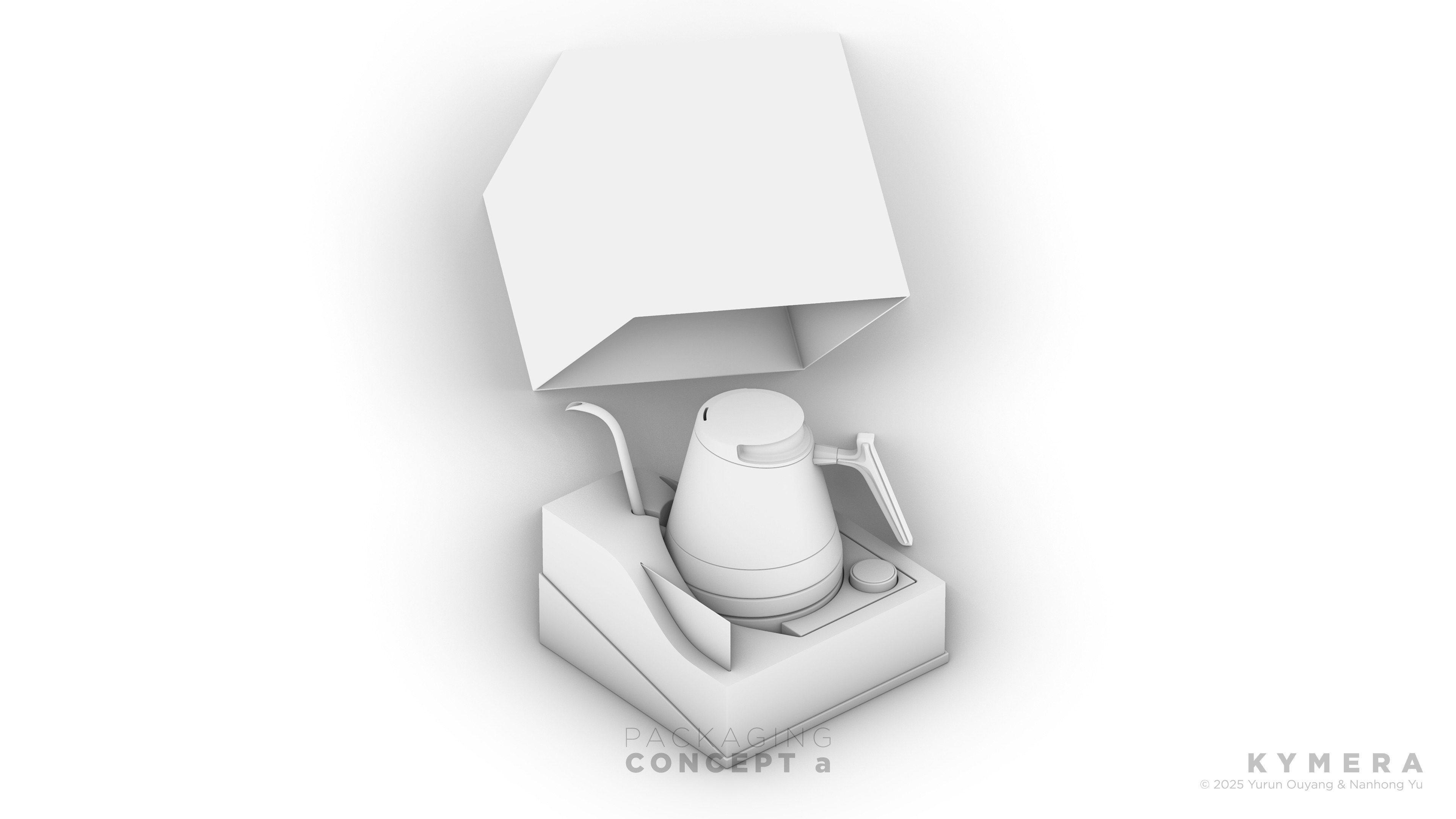

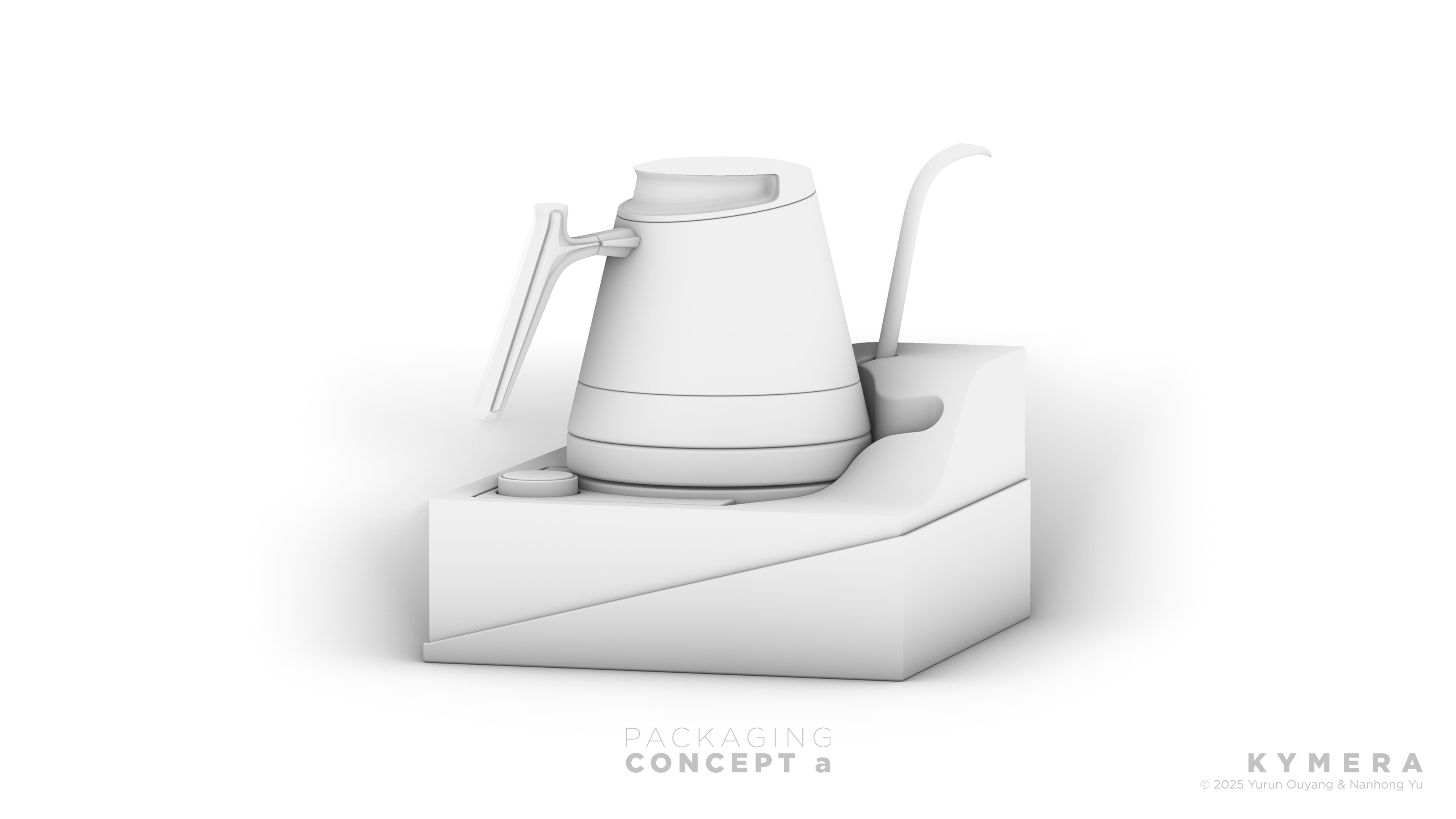

Concept A features a sculpted high-rise insert that elegantly supports the kettle by its spout—a form inspired by the Chinese idiom “高山流水” (High Mountains and Flowing Water), symbolizing harmony and deep connection. The elevated form brings a sense of motion and rhythm, while also incorporating a dedicated cardholder slot and hidden compartments for accessories and cables beneath.

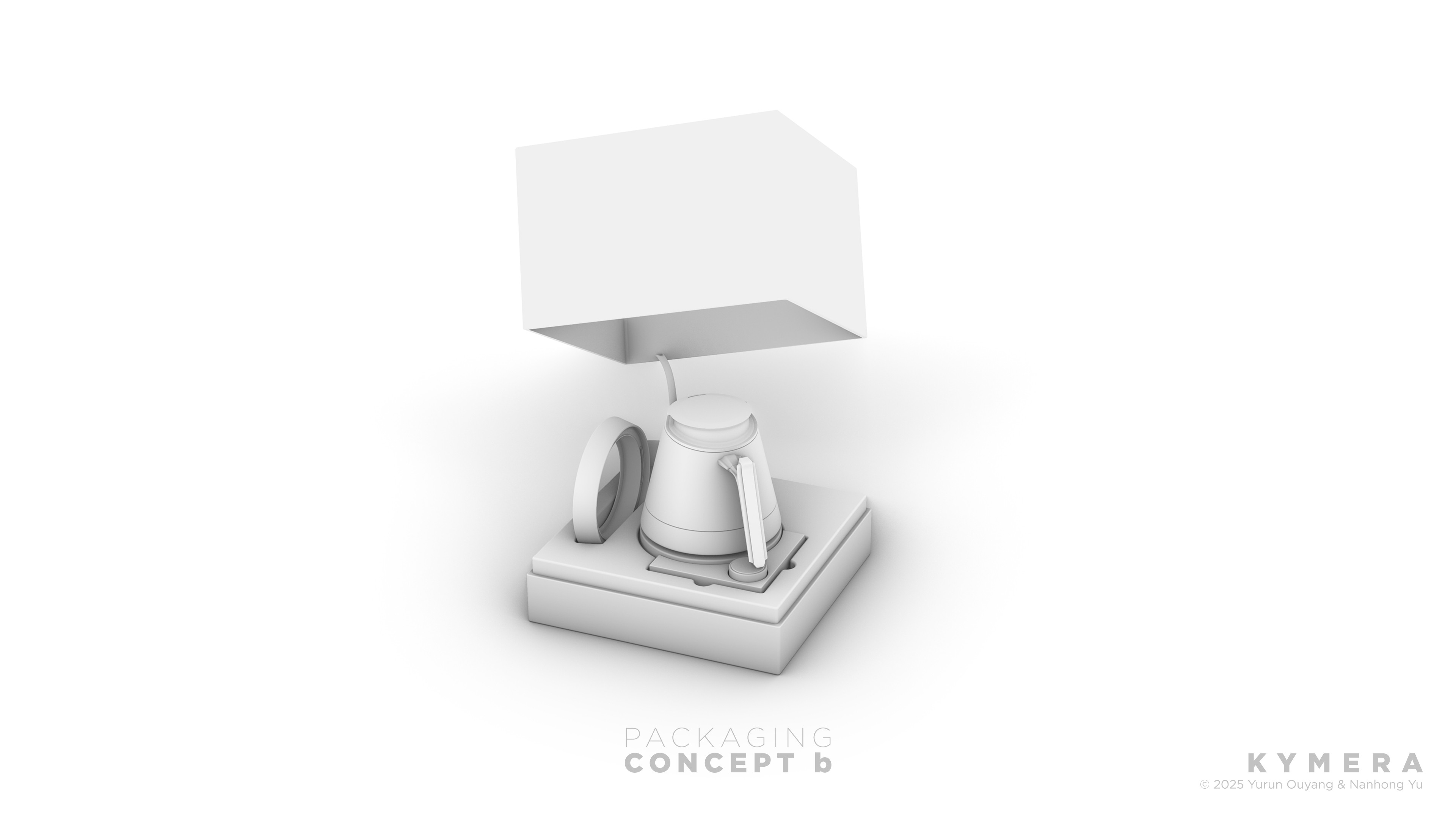

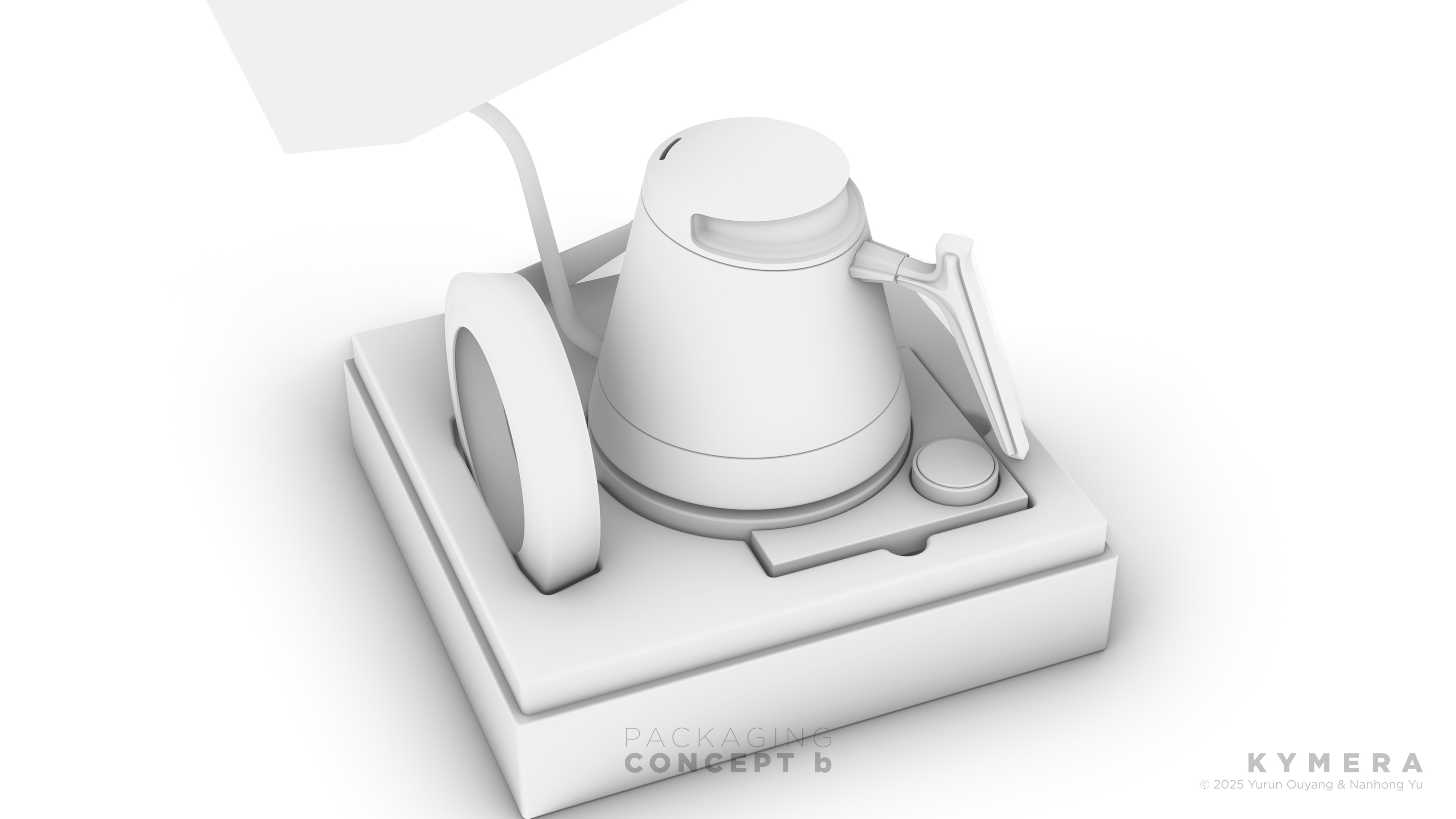

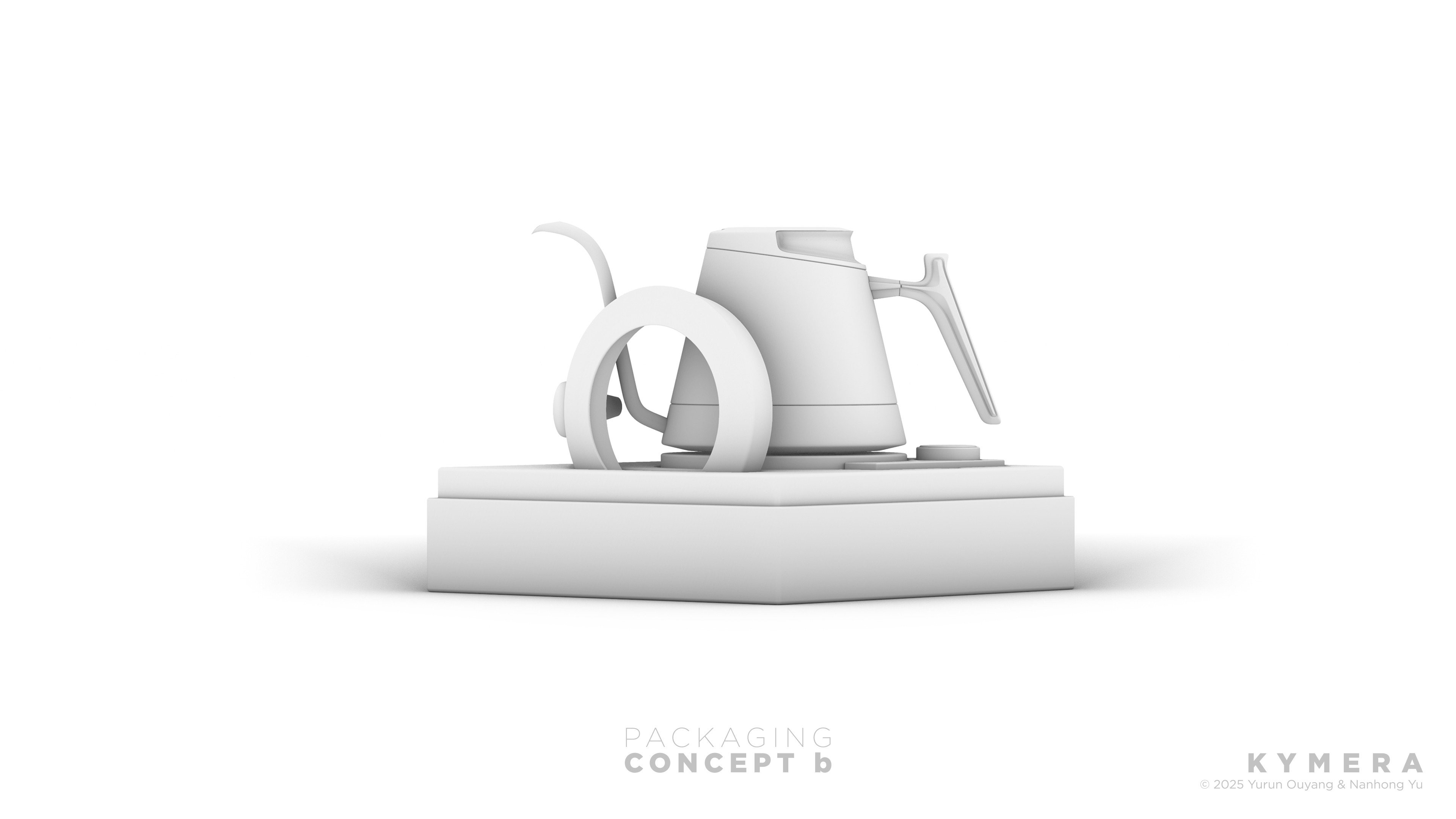

Concept B is an earlier structural direction focused on efficiently shipping both the coffee and tea spouts together in one compact, secure configuration.
Kymera Full Scale 3D Printed Prototype - Yurun Ouyang - 2024
Kymera Package Concept 3D Printed Prototype - Nanhong Yu - 2024
